TC1796

Peripheral Units (Vol. 2 of 2)

Micro Second Channel (MSC)

User’s Manual 21-18 V2.0, 2007-07

MSC, V2.0

Passive Frame Counter in Data Repetition Mode

In Data Repetition Mode, a passive time frame counter DSS.DC indicates how many

time frames have been already transmitted after the last regular data frame occurrence.

The passive time frame counter counts up from 0000

to the value which has been

written into bit field DSS.NPTF (number of passive time frames). DSS.PFC = 0000

indicates that a data frame is requested for transmission.

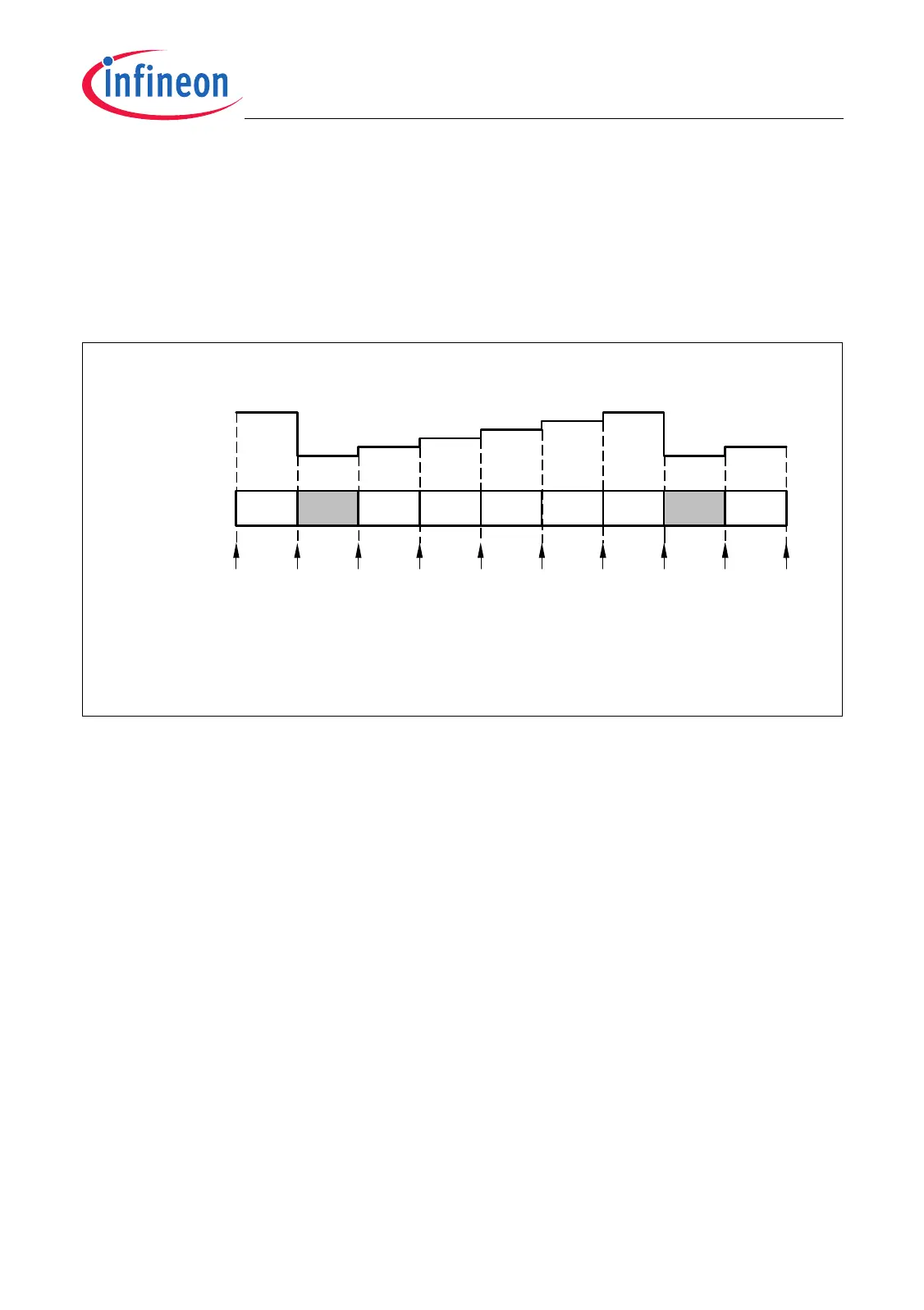

Figure 21-11 Passive Frame Counter Operation (with DSS.NPTF = 0101

)

MCT05805

DFPTF PTF PTF PTF DF

PTF = Passive Time Frame

DF = Data Frame

TRP = Time Reference Point

PTF PTF

TRP TRP TRP TRP TRP TRP TRP TRP TRP

PTF

TRP

0000

0001

0010

0011

0100

0101

Transmitted

Frames

Passive Frame

Counter

DSS.PFC

0000

0101

0001
