TC1796
Peripheral Units (Vol. 2 of 2)
Micro Second Channel (MSC)
User’s Manual 21-72 V2.0, 2007-07
MSC, V2.0

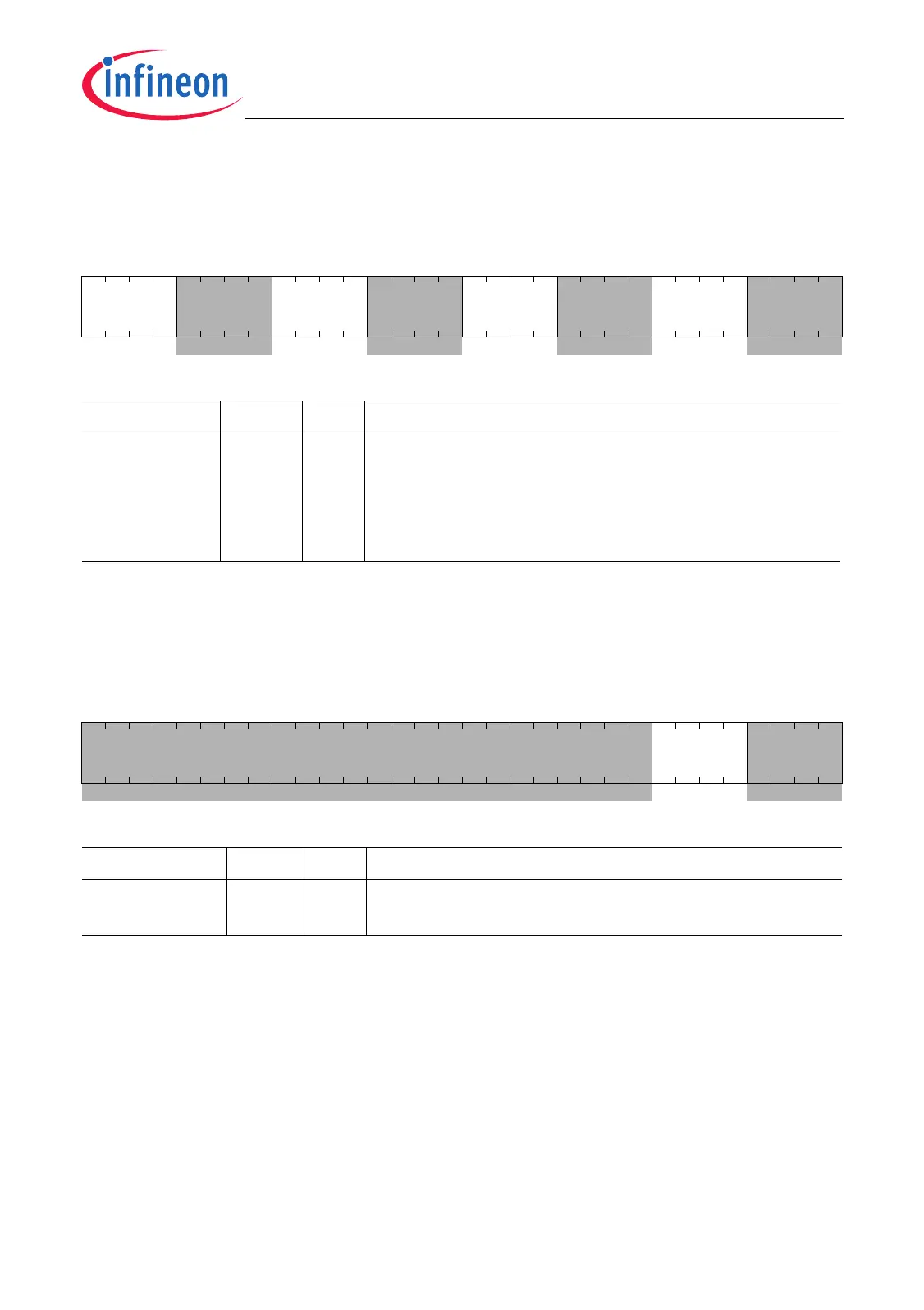

P9_IOCR4
Port 9 Input/Output Control Register 4 (14
H
) Reset Value: 2020 2020
H
31 28 23 20 15 12 7 4 0
PC7 0PC60PC50PC40
rw rrwrrwrrwr
Field Bits Type Description
PC4,
PC5,
PC6,
PC7
[7:4],
[15:12],
[23:20],
[31:28]
rw Port Input/Output Control for Port 9 Pins 4-7
1)
Port input/output control for P9.4/EN03
Port input/output control for P9.5/EN02
Port input/output control for P9.6/EN01
Port input/output control for P9.7/SOP0B
1) Coding of bit field see Table 21-11. Shaded bits and bit fields are “don’t care” for MSC I/O port control.
P9_IOCR8
Port 9 Input/Output Control Register 8 (18
H
) Reset Value: 0000 0020
H
31 7 4 0
0PC80
rrwr
Field Bits Type Description
PC8 [7:4]
rw Port Input/Output Control for Port 9 Pin 8
1)
Port input/output control for P9.8 / FCLP0B
1) Coding of bit field see Table 21-11. Shaded bits and bit fields are “don’t care” for MSC I/O port control.
