Figure 23-5 shows the generation of the complete Remote Window address without
address prediction. The variable address part can be transferred as offset by a write or
a Read Frame, or it can be predicted in case of regular address modifications, whereas
the fixed part of the address is defined by the upper bits of the base address.
In case of address prediction, the variable address part is internally calculated and taken
as lower address bits of the target address (the upper address bits are given by the
Remote Window’s base address).

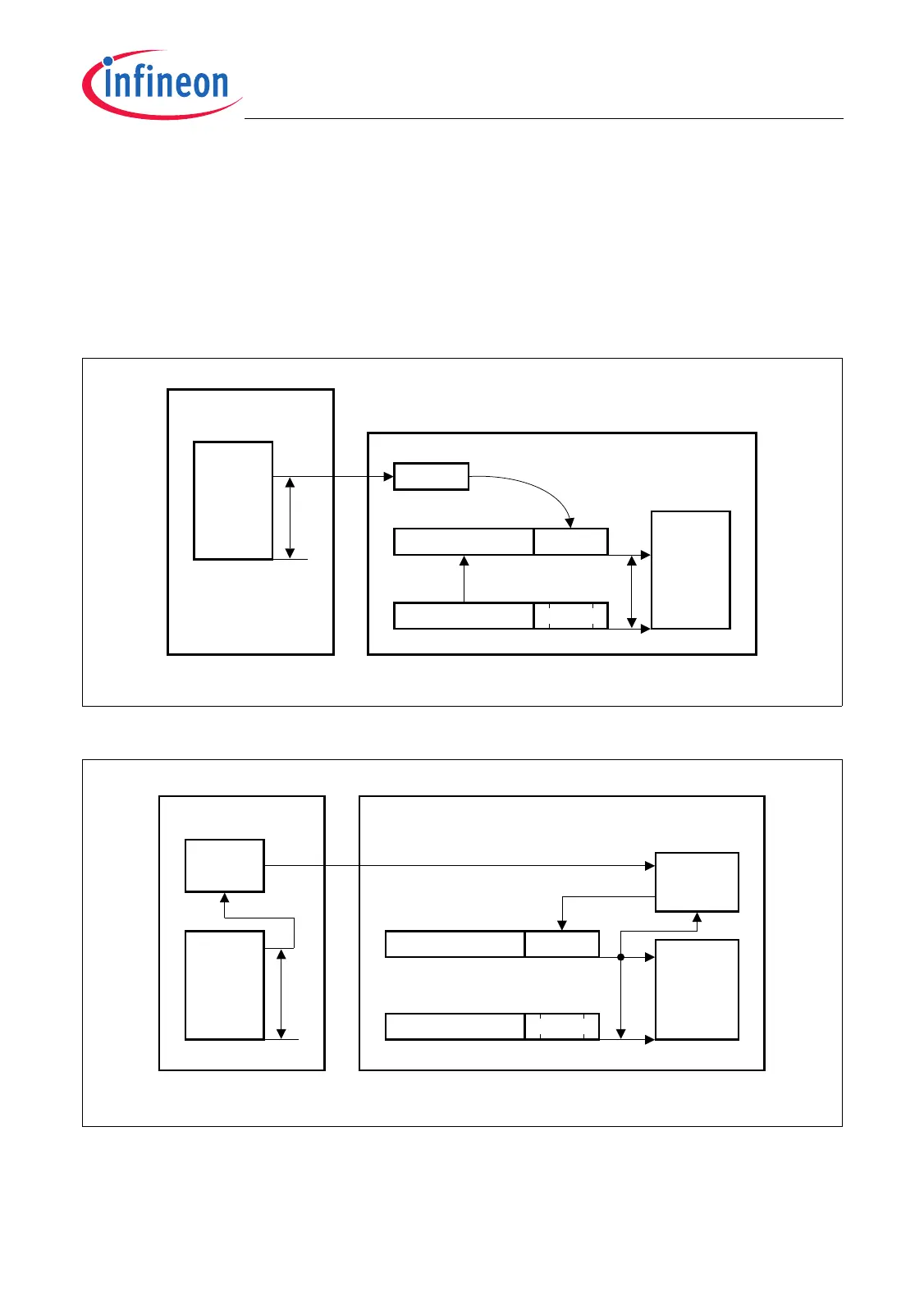

Figure 23-5 Remote Window Address Generation without Address Prediction
Figure 23-6 Remote Window Address Generation with Address Prediction
MLI_Rwindow _offs
Transfer
Window
Pipe x
BSx31 0
Remote
Window
Pipe x
BSx-1 0
MLI Transmitter
Offset
BSx31 0
Offset
MLI Receiver
1) Read or Write Offset
1)
Base Address x …..00
Base Address x
Offset
MLI_Rwindow_pred
Transfer
Window
Pipe x
BSx31 0
Remote
Window
Pipe x
MLI Transmitter
BSx31 0
MLI Receiver
1) Read or Write Offset
1)
Address
Prediction
Current Offset
Predicted Offset
Address
Prediction
Match
Offset
Base Address x …..00
Base Address x
