TC1796
Peripheral Units (Vol. 2 of 2)
Micro Link Interface (MLI)
User’s Manual 23-56 V2.0, 2007-07
MLI, V2.0
SR[7:0]. Each demultiplexer output selected by its Node Pointer = x (x = 0-7) is
connected to one input of the SRx OR-Gate. This wiring scheme also supports the
connection of more than one event source to an service request output SRx. One
receiver event, the interrupt Command Frame event, has a special characteristic: its
node pointer is controlled by the received CMD value directly and only SR[3:0] OR-Gates
are selectable.

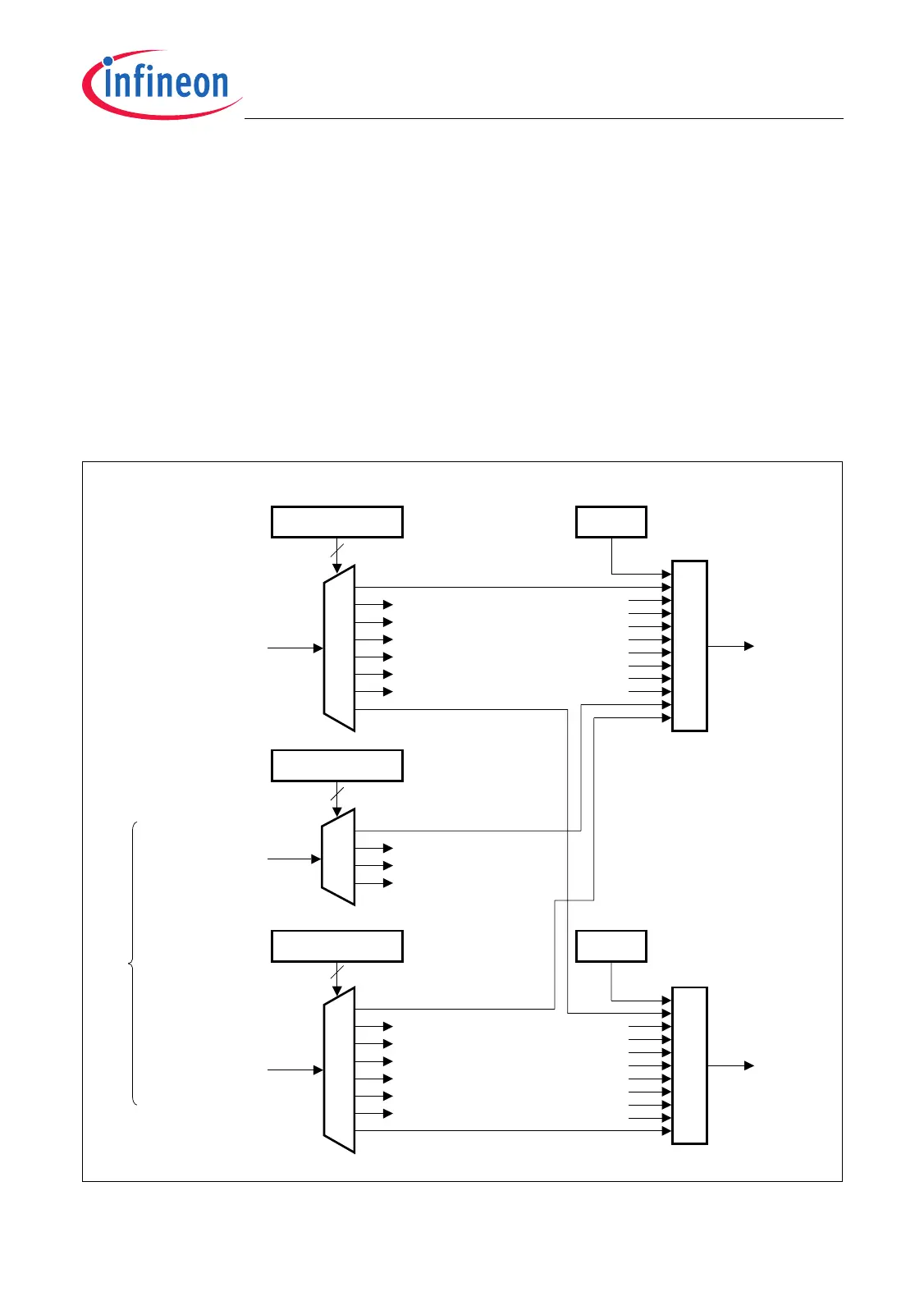

Figure 23-38 shows the service request compressing logic. For reasons of simplicity,
not all MLI events, connections, and OR-Gates are explicitly shown. The OR-Gate inputs
are connected to the demultiplexers of the MLI event specific lines. Furthermore, a
service request output SRx can be triggered by software if the corresponding interrupt
set bit in register GINTR is written with a 1.
Figure 23-38 Service Request Compressor
MCA05904_mod
Node Pointer
TINPR
Service
Request
Output
SR0
001
010
011
000
Transmitter
Event with own
Node Pointer
.
.
.
.
.
.
.
To SR1 OR-Gate
To SR2 OR-Gate
SR0
OR-Gate
To SR3 OR-Gate
To SR4 OR-Gate
To SR5 OR-Gate
To SR6 OR-Gate
101
110
111
100
SIMLI0
GINTR
Node Pointer
RINPR
≥1
001
010
011
000
Receiver Event
with own Node
Pointer
To SR1 OR-Gate
To SR2 OR-Gate
To SR3 OR-Gate
To SR4 OR-Gate
To SR5 OR-Gate
To SR6 OR-Gate
101
110
111
100
SIMLI7
GINTR
3
Interrupt
Command
Frame Event
0001
0010
0011
0000
MLI Receiver
To SR1 OR-Gate
To SR2 OR-Gate
To SR3 OR-Gate
Receiver Interru pts
Service
Request
Output
SR7
SR7
OR-Gate
4
3
≥1
To Next Page
