TC1796

Peripheral Units (Vol. 2 of 2)

General Purpose Timer Array (GPTA)

User’s Manual 24-54 V2.0, 2007-07

GPTA, V2.0

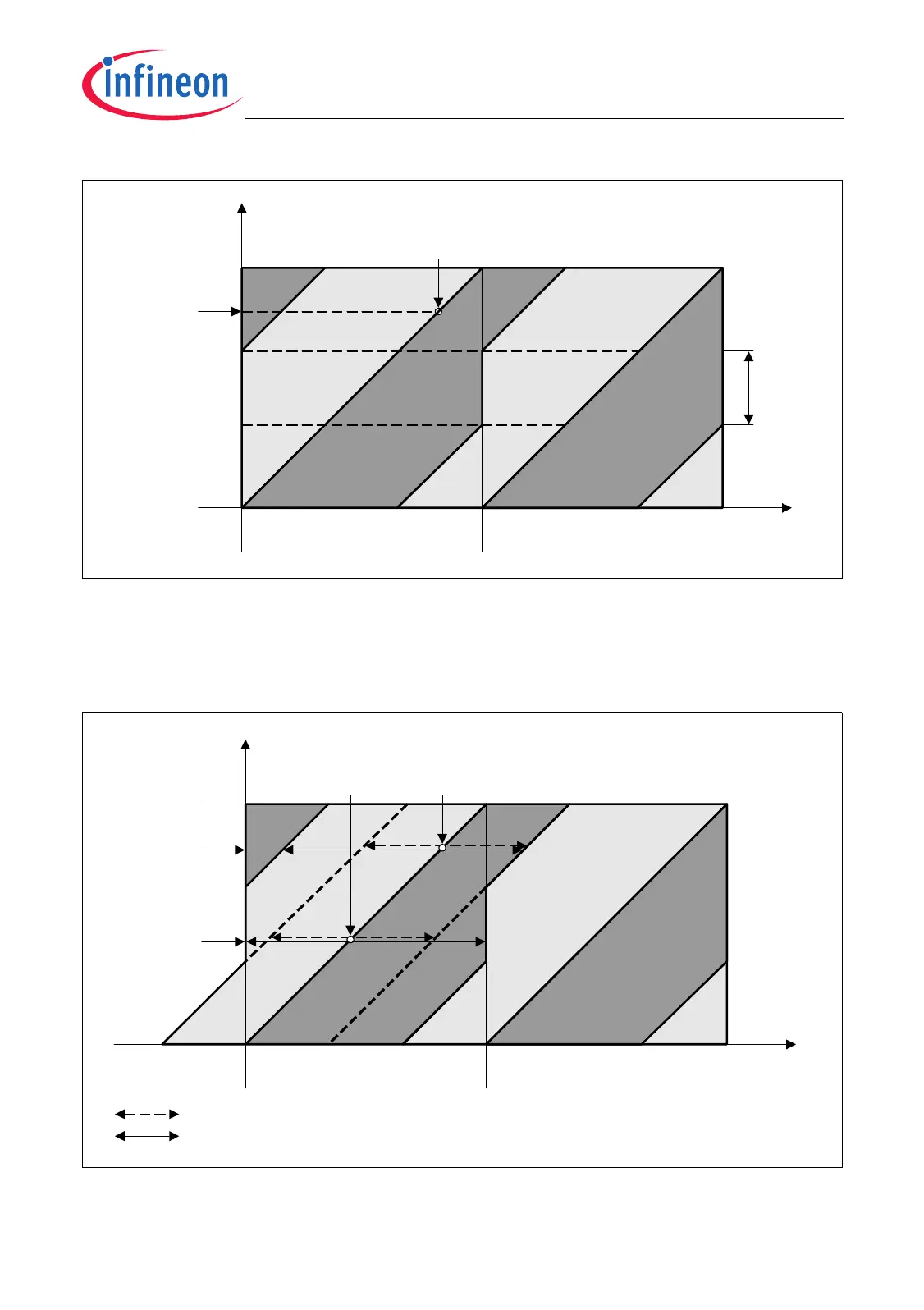

Figure 24-41 Graphical Representation of Signed Compare (2

< Period ≤ 2 × 2

)

Figure 24-42 shows how the observation window is positioned with respect to T. It also

shows the core observation window that is always centered on T and which has a

constant width.

Figure 24-42 Core Observation Window in the Graphic

Before

MCT05950

After

Before

Timer

Mmm

Threshold

Value of T

T (point in time)

2 × 2

- Period =

Comparator Window - Period

After

Before

MCT05951

Timer

Mmm

Threshold

Point T1

Observation Window

Core Observation Window

Point T2

After

Value of T1

Value of T2
