TC1796
Peripheral Units (Vol. 2 of 2)
General Purpose Timer Array (GPTA)
User’s Manual 24-56 V2.0, 2007-07
GPTA, V2.0
– External port lines
– Local Timer Cell outputs
– Filter and Prescaler Cell outputs
– Internal input signals INTx
• Two action mode inputs (M0I, M1I) coming from the adjacent GTC with lower order
number (M1I and M0I of GTC00 are 0)
Each GTC provides the following outputs:
• One data output (GTCkOUT) that can be connected to:
– External port lines
– Inputs of an MSC module
– Outputs and/or inputs of Local Timer Cell inputs
• Two action mode outputs (M0O, M1O) going to the adjacent GTC with higher order
number
• One service request line (SQSk) triggered by a capture/compare event.

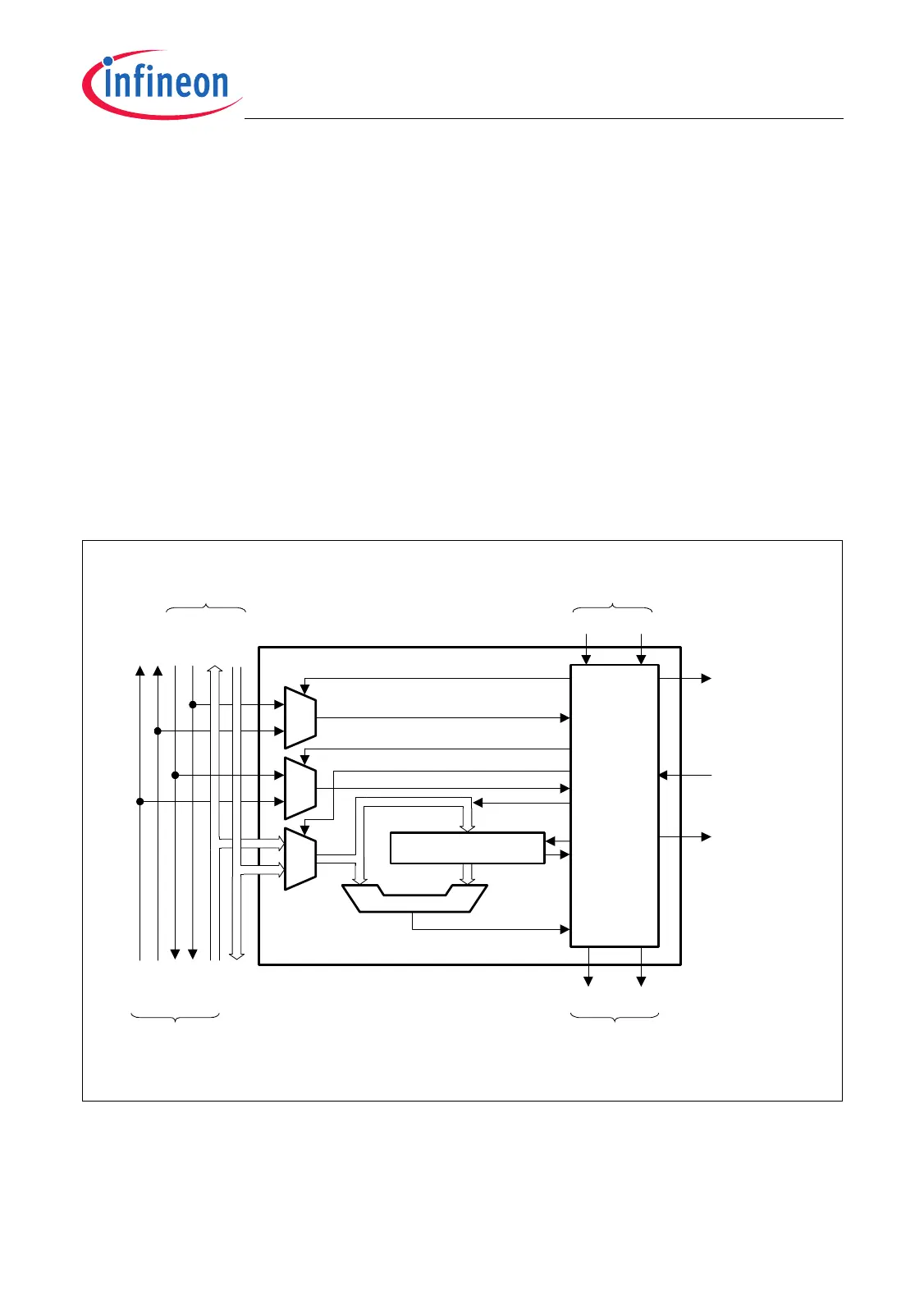

Figure 24-43 Architecture of Global Timer Cells
MCA05952
GTCk
Control
Logic
M1O
GTCkIN
X (24-Bit Value)
GTV1
=
GTCXRk
MUX
MUX
MUX
M0O
M1I M0I
GTCkOUT
SQSk
GTV0
TGE0
TEV0
TEV1
TGE1
From GT0
From GT1
Connected to M1O/M0O
of previous GTCk-1
Connected to M1I/M0I
of next GTCk+1
