TC1796
Peripheral Units (Vol. 2 of 2)
Analog-to-Digital Converter (ADC)
User’s Manual 25-23 V2.0, 2007-07
ADC, V2.0

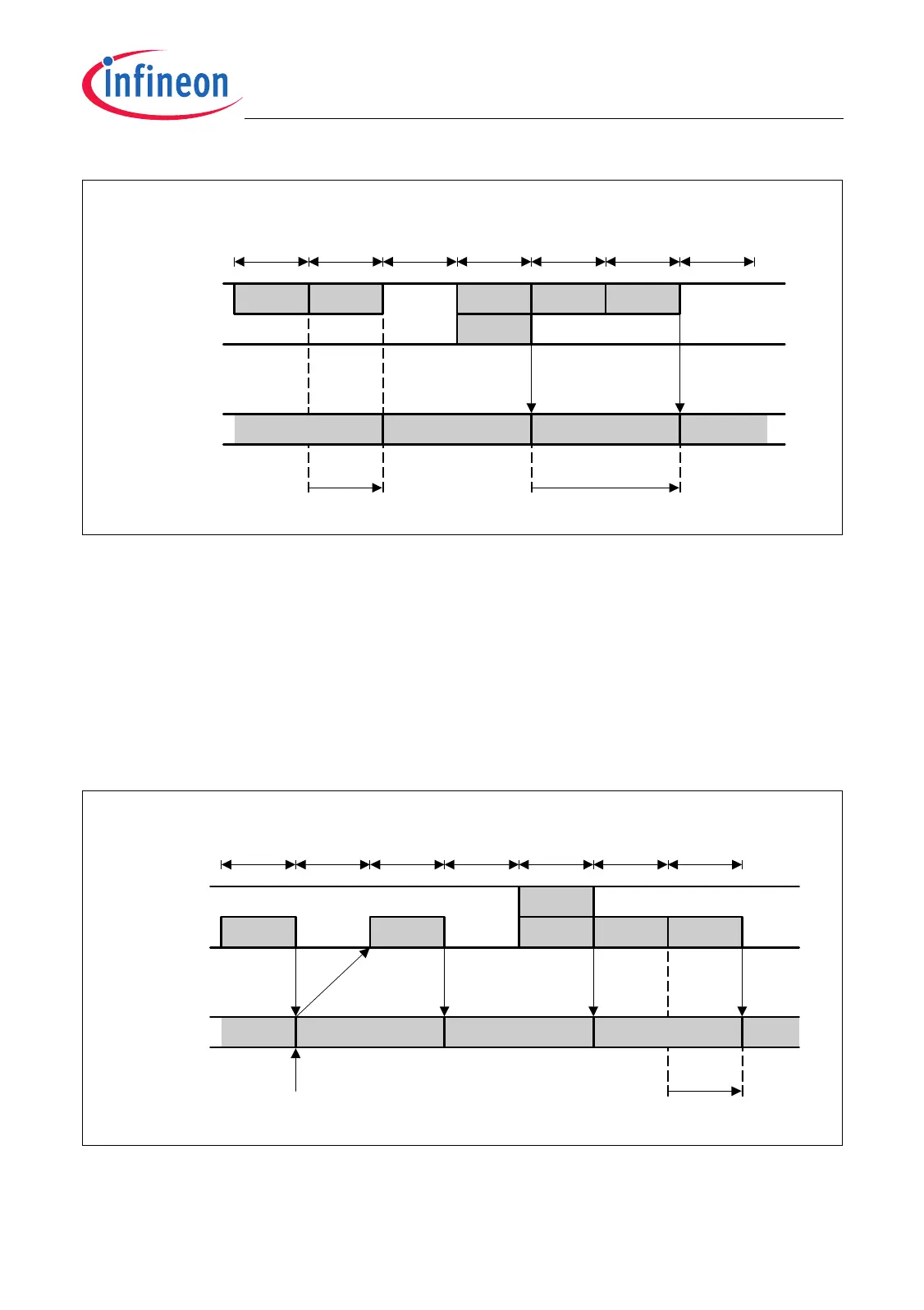

Figure 25-11 Channel Injection with Inject-Wait
Figure 25-12 shows the behavior of conversion requests generated by “Channel
Injection” using the Cancel-Inject-Repeat feature. In the first case, the currently
performed conversion is cancelled, because its source arbitration level of ‘L2’ is below
the source arbitration level of ‘L1’ of “Channel Injection” A new conversion request is
generated for the cancelled conversion in order to restart this cancelled conversion later.
This new request participates in arbitration and will be selected for repetition due to its
priority level. The second injection request with a source arbitration level of ‘L4’ is
delayed, even if the Cancel-Inject-Repeat feature is enabled.
Figure 25-12 Channel Injection with Cancel-Inject-Repeat Feature
Src 'n' Level L1 CHIN L3
MCT06014
CHIN L3
Conversion
CHIN Level L3 Src 'm' Level L2
Src. L2
CHIN L3
Pending
Conversion
Requests
Arbitration
Cycle
Delay
CHIN L3 CHIN L3 CHIN L3
Delay
Src L2 CHIN
MCT06015
CHIN L1
Conversion
CHIN Level L1 Src 'm' Level L2 Src 'm' Level L3
Src. L3Src. L2
CHIN L4
CHIN L4 CHIN L4
Pending
Conversion
Requests
Arbitration
Cycle
Cancel
Delay
Repeat
