TC1796

System Units (Vol. 1 of 2)

Peripheral Control Processor (PCP)

User’s Manual 11-22 V2.0, 2007-07

PCP, V2.0

Channel Restart Mode

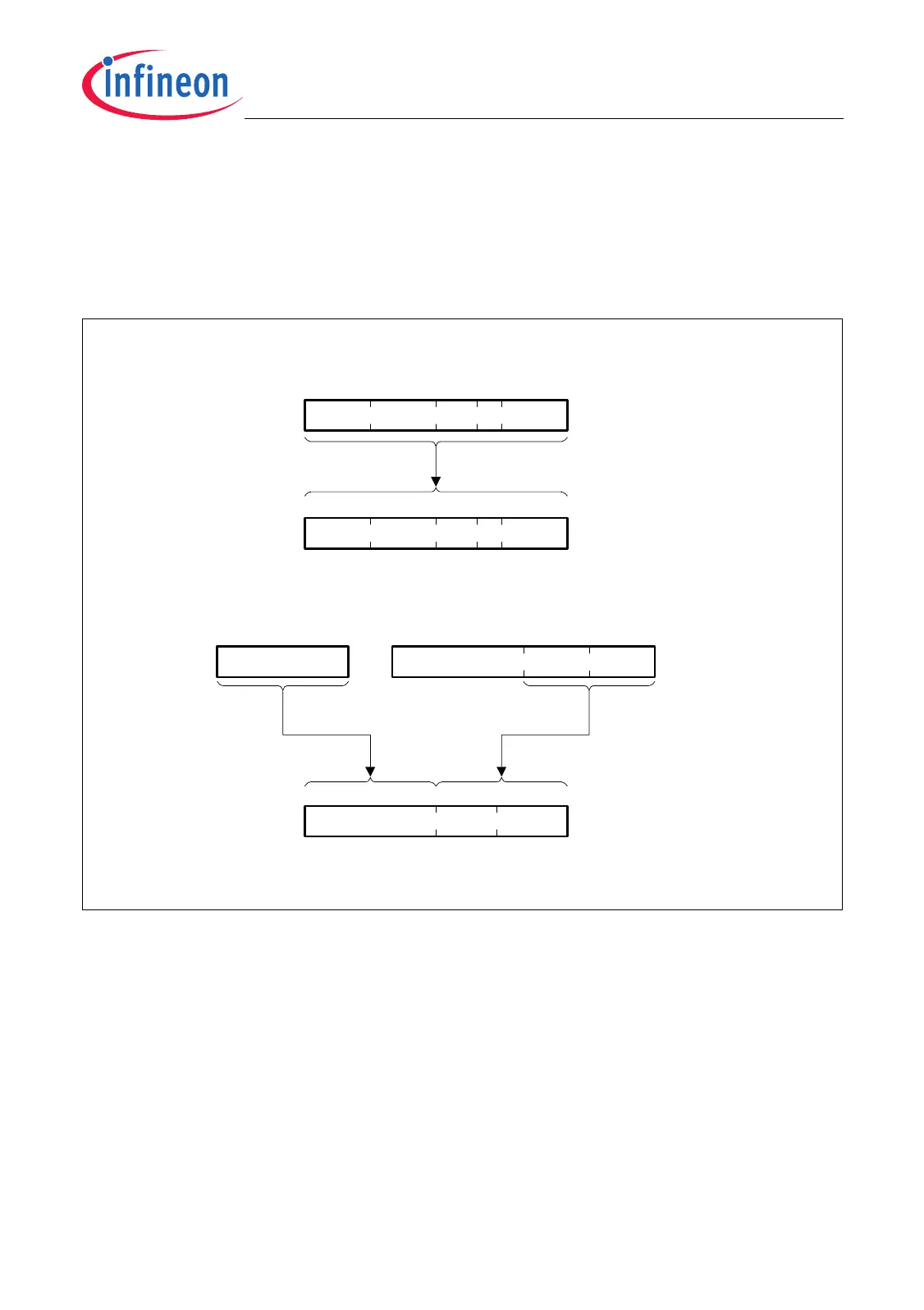

Figure 11-8 illustrates the operation of a context save for a channel exit when Channel

Restart Mode has been selected.This is the same as for Channel Resume mode except

that the PC value is discarded, and the appropriate Channel Entry Table address is

written to CR7[31:16].

Figure 11-8 Context Save: Channel Exit in Channel Restart Mode

MCA05673

31 16 0

CNT1

CPPN SRPN TOS

31 16 0

CNT1

CPPN SRPN TOS

PCP

Stored Content

CR6 in PRAM

31 16 0

CPC CFLAGS

Stored Content

CR7 in PRAM

CDPTR

31 16 0

0FLAGSCDPTR

PCP

2 * SRPN
