Protocol analysis
R&S
®
RTE
718User Manual 1326.1032.02 ─ 20

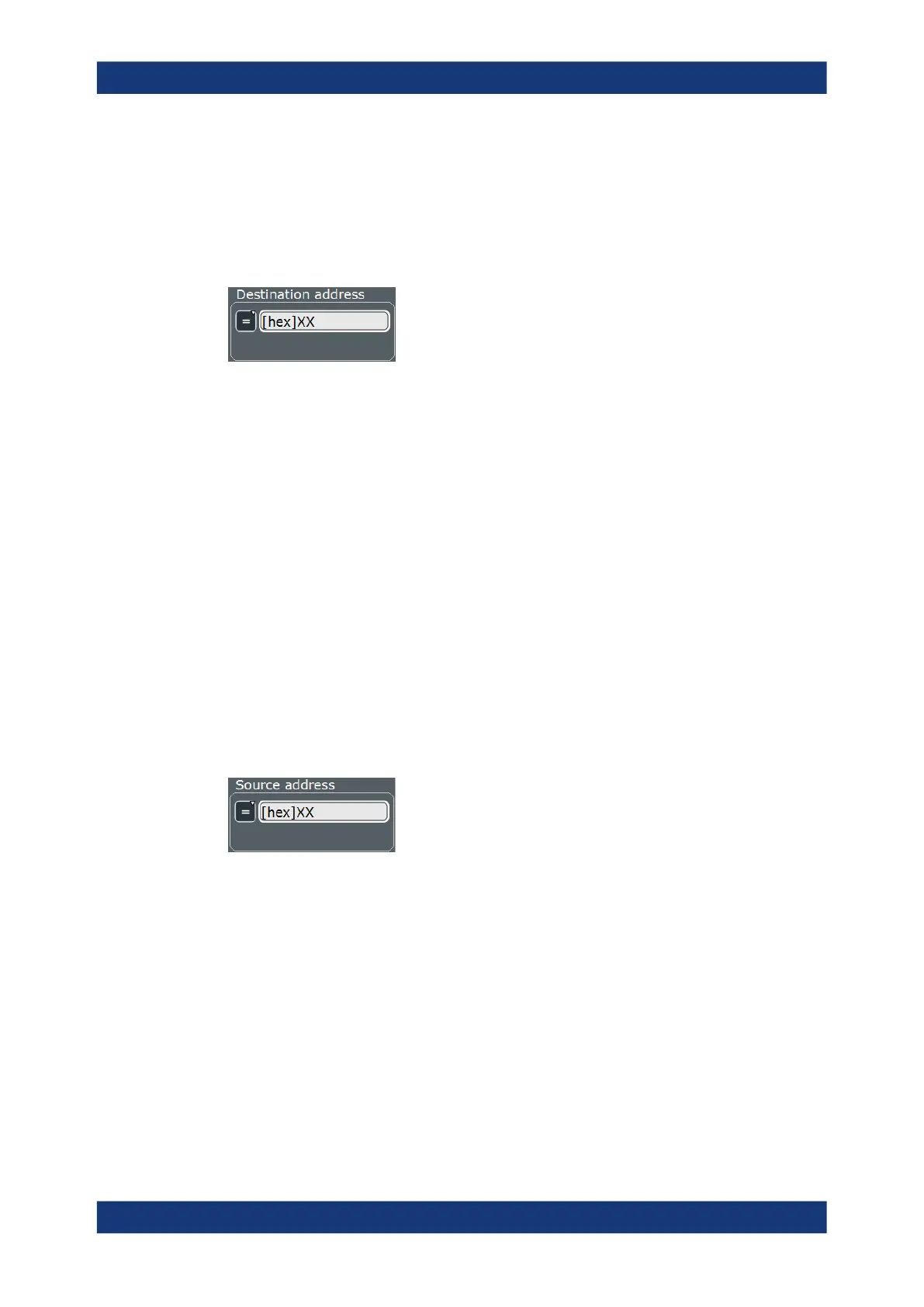

Destination address
Sets the specified destination address to be triggered on. The destination address
setup consists of the condition and one or two data patterns.
The destination address corresponds to the address of the interface in the device that
receives the frame. If the destination address does not match the interface’s own
Ethernet address, then the interface is free to ignore the rest of the frame.
"Condition"
Defines the operator to set a specific destination address, e.g.
"Equal" or "Not Equal") or a range.
"Data Min/Data"
Defines the bit pattern of the destination address pattern.
In binary format, use the following characters: 1; 0; or X (do not care).
To enter the pattern in other formats use the bit pattern editor, see
Chapter 13.1.5, "Bit pattern editor", on page 521.
"Data Max"
The second data pattern is required to specify a range with conditions
"In range" and "Out of range".
Remote command:
TRIGger<m>:HBTO:DADDress:CONDition on page 1677
TRIGger<m>:HBTO:DADDress:MIN on page 1677
TRIGger<m>:HBTO:DADDress:MAX on page 1678
Source address
Sets the specified source address to be triggered on. The source address setup con-
sists of the condition and one or two data patterns.
The source address is the physical address of the device that sends the frame.
"Condition"
Defines the operator to set a specific source address, e.g. "Equal" or
"Not Equal") or a range.
"Data Min/Data"
Defines the bit pattern of the source address pattern.
In binary format, use the following characters: 1; 0; or X (do not care).
To enter the pattern in other formats use the bit pattern editor, see
Chapter 13.1.5, "Bit pattern editor", on page 521.
"Data Max"
The second data pattern is required to specify a range with conditions
"In range" and "Out of range".
Ethernet 100BASE-T1 (option R&S RTE-57)
