To Next Page

To Previous Page

High-level

Low-level

Interrupt enable

Interrupt disable

GIOFLG

GIOPOL

Rising edge

Falling edge

VBUSP (peripheral bus)

GIODSETx

GIODOUTx

GIODINx

GIODIRx

external pin

GIODCLRx

GIOPDRx

GIOPULDIS

Pull Select

Pull Disable

GIOPSL

GIOINTDET

GIOENASET

GIOENACLR

GIOLVLSET

GIOLVLCLR

Low-level

(level B)

interrupt

handling

(1)

High-level

(level A)

interrupt

handling

(1)

VIM

www.ti.com

Functional Description of GIO Module

1189

SPNU563A–March 2018

Submit Documentation Feedback

General-Purpose Input/Output (GIO) Module

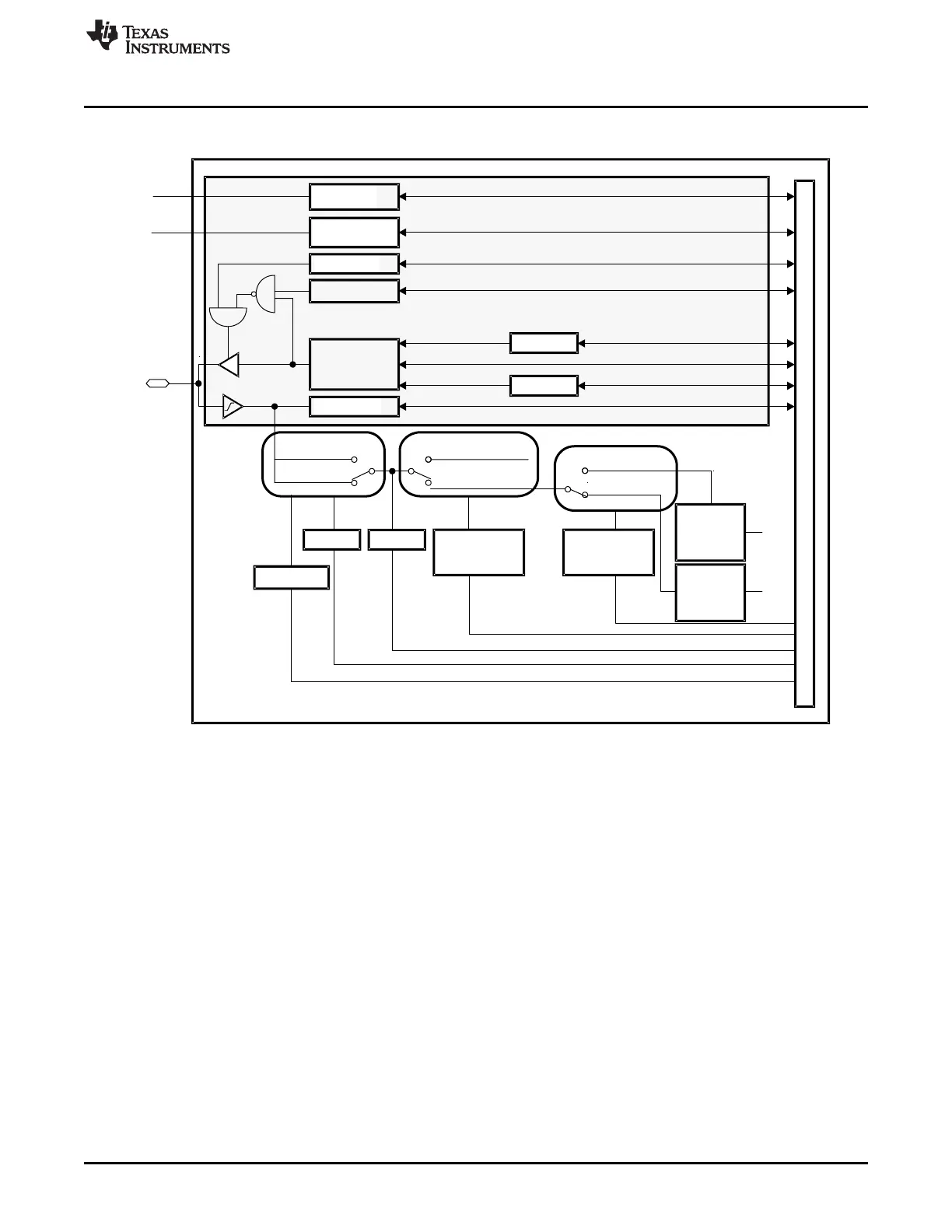

Figure 25-4. GIO Block Diagram

(1) A single low-level-interrupt-handling block and a single high-level-interrupt-handling block service all of the

interrupt-capable external pins, but only one pin can be serviced by an interrupt block at a time.

Default Chapter2
