CNT
WCAP
ECNT
PCNT
2
3
1
2
6
2
3
10
3
4
3
4
5
6
7
8 9 10
11 12
Request Request Request
Quiet
Request
Quiet
Request
Quiet
Request
www.ti.com
Use Cases
1145
SPNU563A–March 2018
Submit Documentation Feedback
Copyright © 2018, Texas Instruments Incorporated
High-End Timer Transfer Unit (HTU) Module
24.3 Use Cases
24.3.1 Example: Single Element Transfer with One Trigger Request
This example considers the case that the HTU fills a RAM buffer in the main (CPU) data RAM. The HTU
reads from the instruction which generates the HTU requests.
This example uses a PCNT instruction. Every time the PCNT has captured a new pulse or period value, it
will automatically generate a transfer request to the HTU, which then transfers the value from the N2HET
RAM to the buffer RAM. So over time consecutive locations in the RAM buffer can be filled with
consecutive measurement values captured into the N2HET RAM data field of the same PCNT instruction
without loading or interrupting the CPU.
24.3.2 Example: Multiple Element Transfer with One Trigger Request
The following example shows how the HTU could be used to fill a RAM buffer with a data stream including
different types of measurement values belonging to the same N2HET input signal (on one pin): Time
stamp values (WCAP), edge counter values (ECNT) and last period values (PCNT).
Figure 24-13 shows the timing and Table 24-5 shows the byte addresses of the program- (PF), control-
(CF), data- (DF) and reserved field (res) of the WCAP-ECNT-PCNT instruction block. The timing and code
example assumes that all three instructions are assigned to the same N2HET pin.

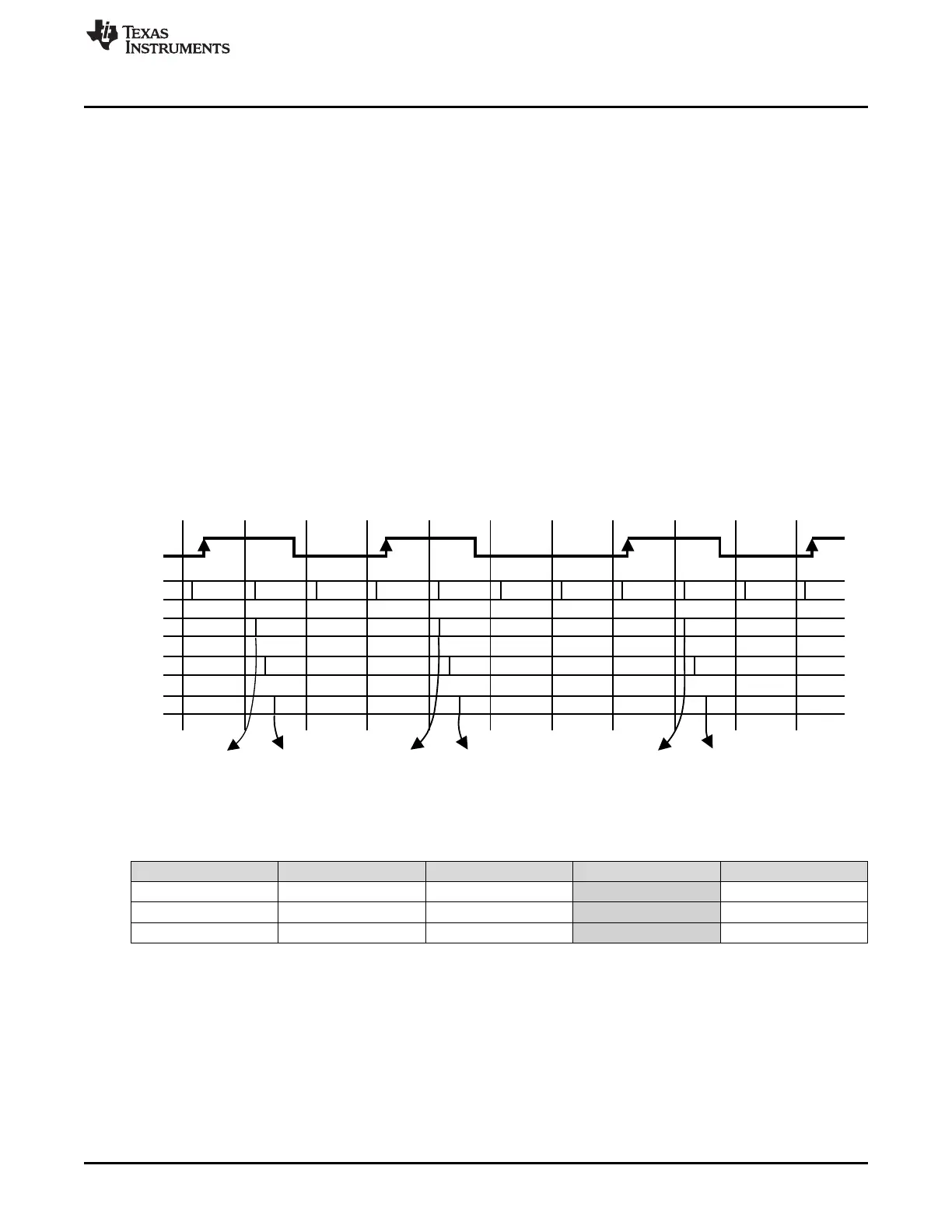

Figure 24-13. Timing of the WCAP, ECNT, PCNT Example
Table 24-5. Field Addresses of the WCAP, ECNT, PCNT Example
PF CF DF Res
WCAP 30h 34h 38h 3Ch
ECNT 40h 44h 48h 4Ch
PCNT 50h 54h 58h 5Ch
In the HET code the HTU request is enabled only for the last instruction (PCNT) of the WCAP-ECNT-
PCNT block. When the PCNT condition is true, it will cause the generated HTU frame to perform three
HTU element reads from the data fields of WCAP, ECNT, and PCNT.
