To Next Page

To Previous Page

DWD preload

11 0

DWD down counter

24 0

To RESET

DWD ctrl

31 0

DWD hardwired

31 0

code

RTIWDKEY

15 0

Compare

15 0

16 bit out to 2

WD Finite State Machine

KEY [1:0]

Discharge

Reset

Suspend

logic

RTICLK

nTRST

RTIDWDPRLD

RTIDWDCTRL

RTIDWDCNTR

time

RTICPUC0

NTUx

UC0 reset

by NTU edge

UC0 reset

by CPUC0

compare match

switch to internal

timebase

RTIUC0

missing NTU pulse

www.ti.com

Module Operation

591

SPNU563A–March 2018

Submit Documentation Feedback

Real-Time Interrupt (RTI) Module

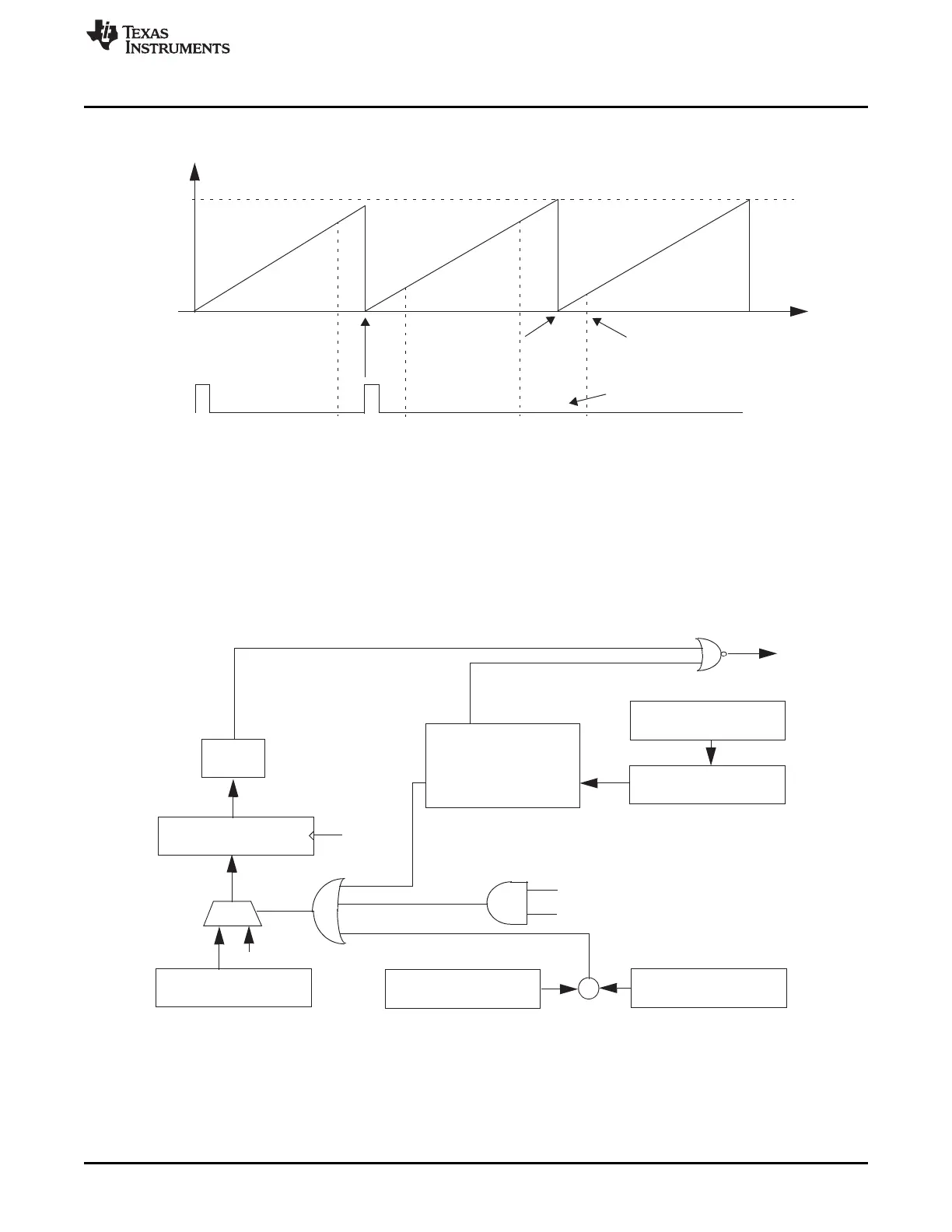

Figure 17-7. Missing NTUx Signal Example

17.2.5 Digital Watchdog (DWD)

The digital watchdog (DWD) is an optional safety diagnostic which can detect a runaway CPU and

generate either a reset or NMI (non-maskable interrupt) response. It generates resets or NMIs after a

programmable period, or if no correct key sequence was written to the RTIWDKEY register. Figure 17-8

illustrates the DWD.

Figure 17-8. Digital Watchdog
