Texas Instruments TMS570LC4357

To Next Page

To Previous Page

ADD PACKET(S) TO

TX QUEUE

GENERATE TX PACKET

(SHOWN IN FLOW CHART)

SOFTWARE

TX QUEUE ACTIVE?

LINK NEW PACKET IN

QUEUE BY WRITING

PREVIOUS LAST PACKET

NEXT DESC POINTER

(PREVIOUSLY ZERO)

YES

ADD ANOTHER

TX PACKET?

YES

SET SOFTWARE

TX QUEUE ACTIVE

TX PACKET(S) ADDED

WRITE TX QUEUE HEAD

DESCRIPTOR POINTER

www.ti.com

Architecture

1815

SPNU563A–March 2018

Submit Documentation Feedback

EMAC/MDIO Module

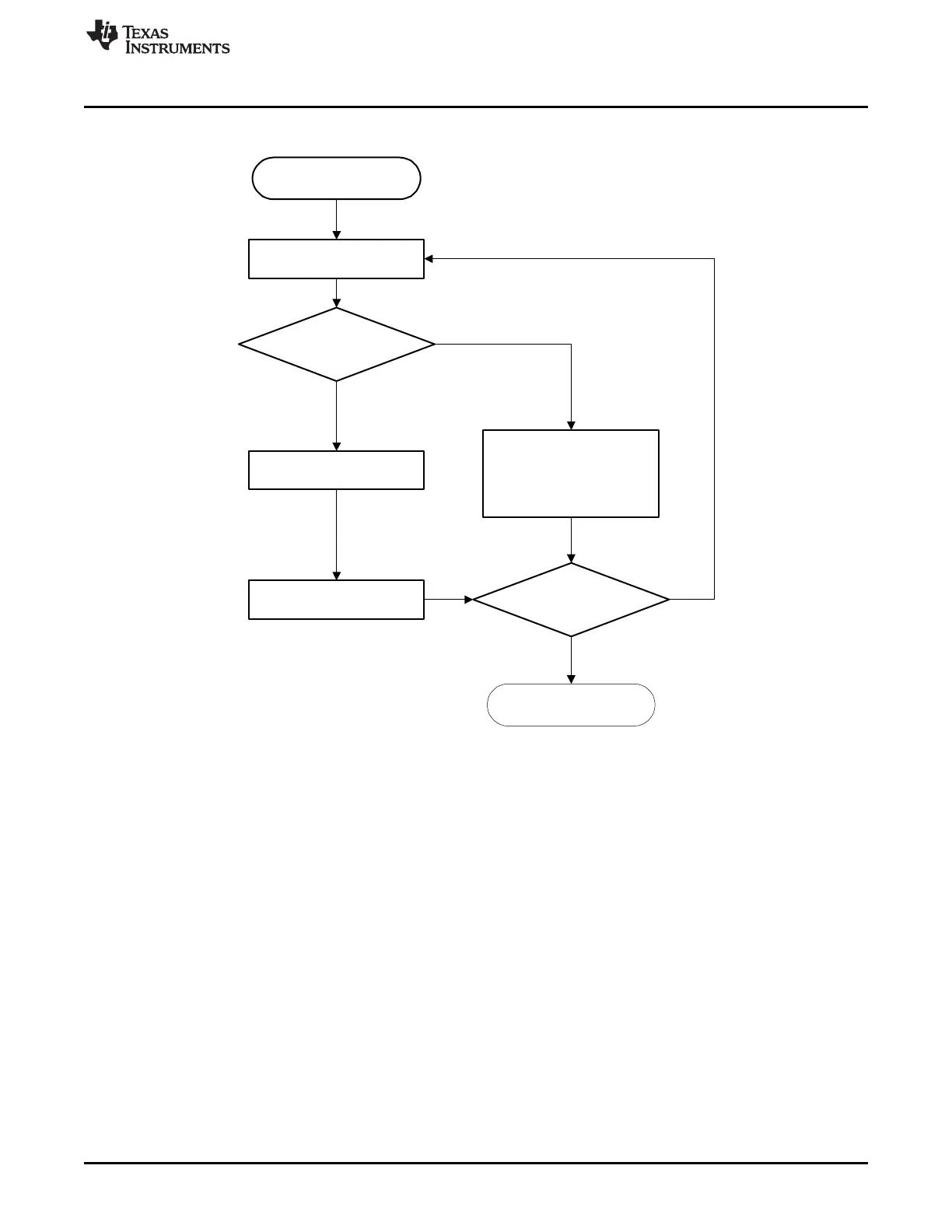

Figure 32-7. Transmit Packet Add Flow Chart

Note: Software TX QUEUE ACTIVE is an indication that at least one packet is in the TX queue (from the software

viewpoint).
