Texas Instruments TMS570LC4357

EPWM2
module
EPWM2SOCA
EPWM2SOCB
EPWM1
module
EPWM1SOCA
EPWM1SOCB
EPWM3
module
EPWM3SOCA
EPWM3SOCB
EPWM4
module
EPWM4SOCA
EPWM4SOCB
EPWM5
module
EPWM5SOCA
EPWM5SOCB
EPWM6
module
EPWM6SOCA
EPWM6SOCB
EPWM7SOCA
EPWM7SOCB
EPWM7
module
ePWM_B ePWM_A1 ePWM_A2 ePWM_AB
SOCAEN,SOCBENbits
insideePWMxmodules
ControlledbyPINMMR
ePWM Submodules www.ti.com
2044
SPNU563A–March 2018
Submit Documentation Feedback
Copyright © 2018, Texas Instruments Incorporated
Enhanced Pulse Width Modulator (ePWM) Module

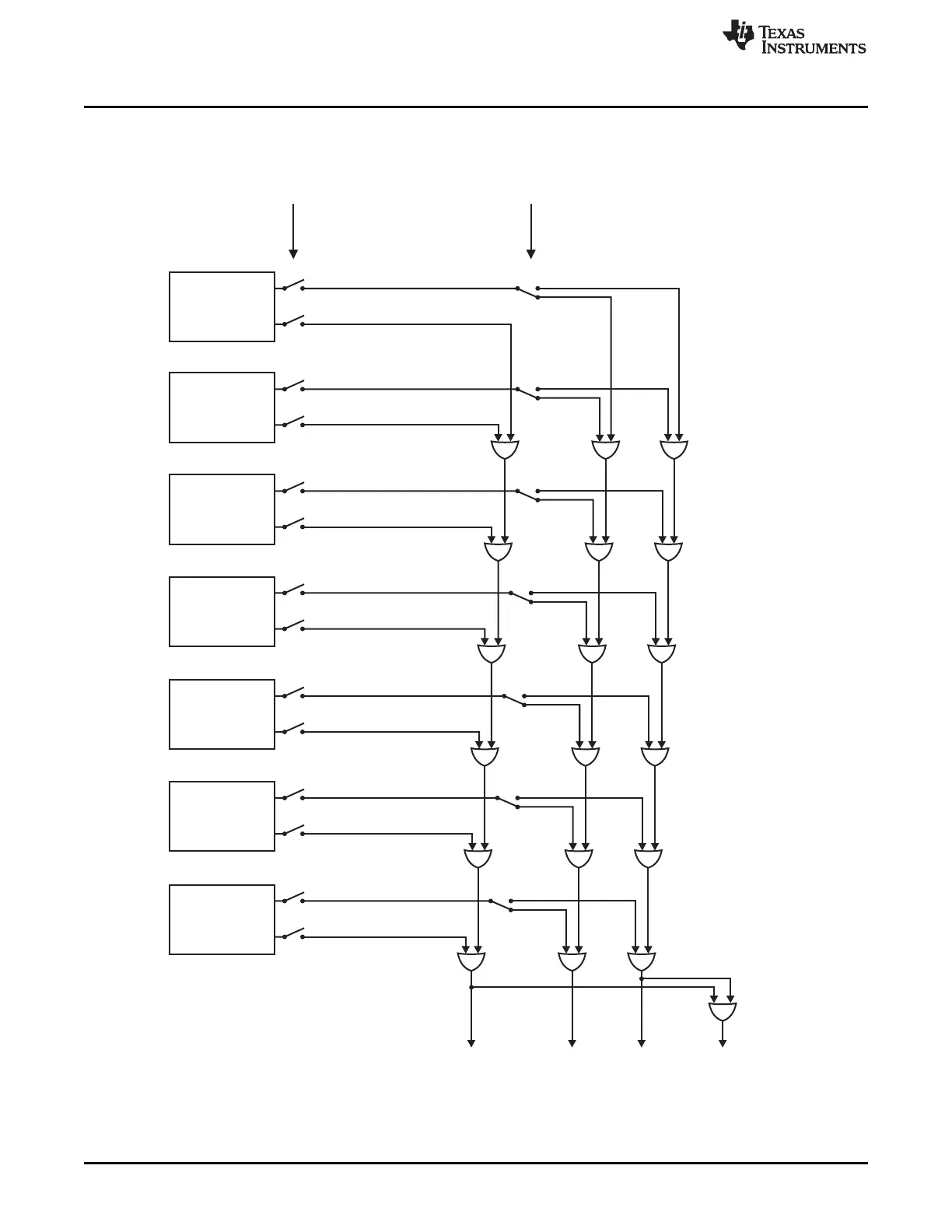

Figure 35-39. Event-Trigger Submodule Inter-Connectivity of ADC Start of Conversion
