TBPRD

TBCTR[0-15]

time

CTR = PRD

(SycnOut)

Master Module

Φ2

Phase = 120°

0000

FFFFh

TBPRD

TBCTR[0-15]

time

SyncIn

Slave Module

TBPHS

600 600

200

www.ti.com

Application Examples

2069

SPNU563A–March 2018

Submit Documentation Feedback

Enhanced Pulse Width Modulator (ePWM) Module

Figure 35-62 shows the associated timing waveforms for this configuration. Here, TBPRD = 600 for both

master and slave. For the slave, TBPHS = 200 (200/600 × 360° = 120°). Whenever the master generates

a SyncIn pulse (CTR = PRD), the value of TBPHS = 200 is loaded into the slave TBCTR register so the

slave time-base is always leading the master's time-base by 120°.

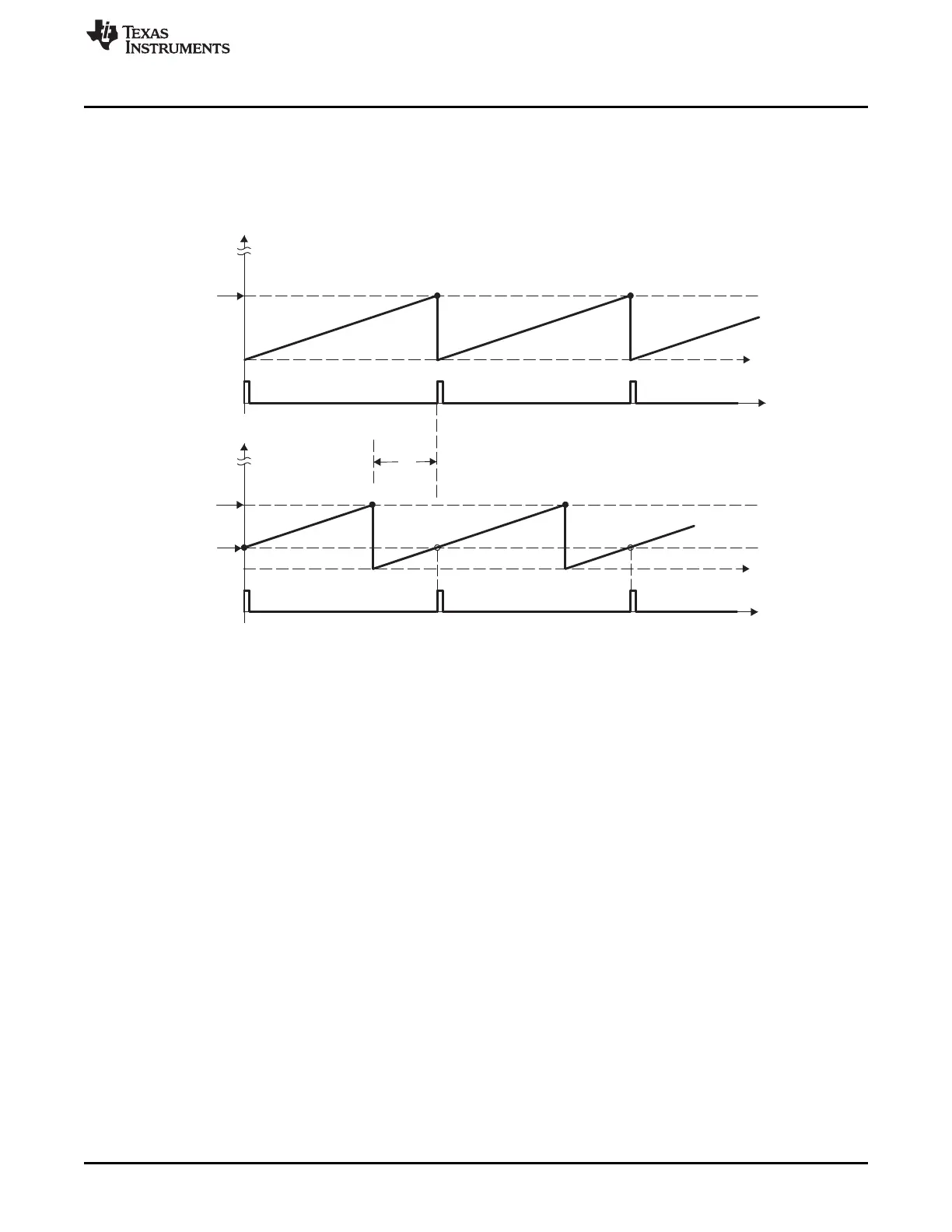

Figure 35-62. Timing Waveforms Associated With Phase Control Between 2 Modules
