N2HET1

N2HET1[17]/EMIF_nOE/SCI4RX

MIBSPI1NCS[1]/MII_COL/N2HET1[17]/eQEP1S

Not (PINMMR92[0]=0 and PINMMR92[1]=1)

N2HET1[17]_IN

MIBSPI1

Ethernet

eQEP1

EMIF

SCI4

www.ti.com

Control of Multiplexed Inputs

311

SPNU563A–March 2018

Submit Documentation Feedback

I/O Multiplexing and Control Module (IOMM)

NOTE: Inputs are broadcast to all multiplexed functions

The input signals are broadcast to all modules hooked up to a terminal. The application must

ensure that modules that are not being used in the application do not react to a change on

their input functions. For example, a GIO signal toggle can trigger an interrupt request, when

the application actually is using the function multiplexed with this GIO signal.

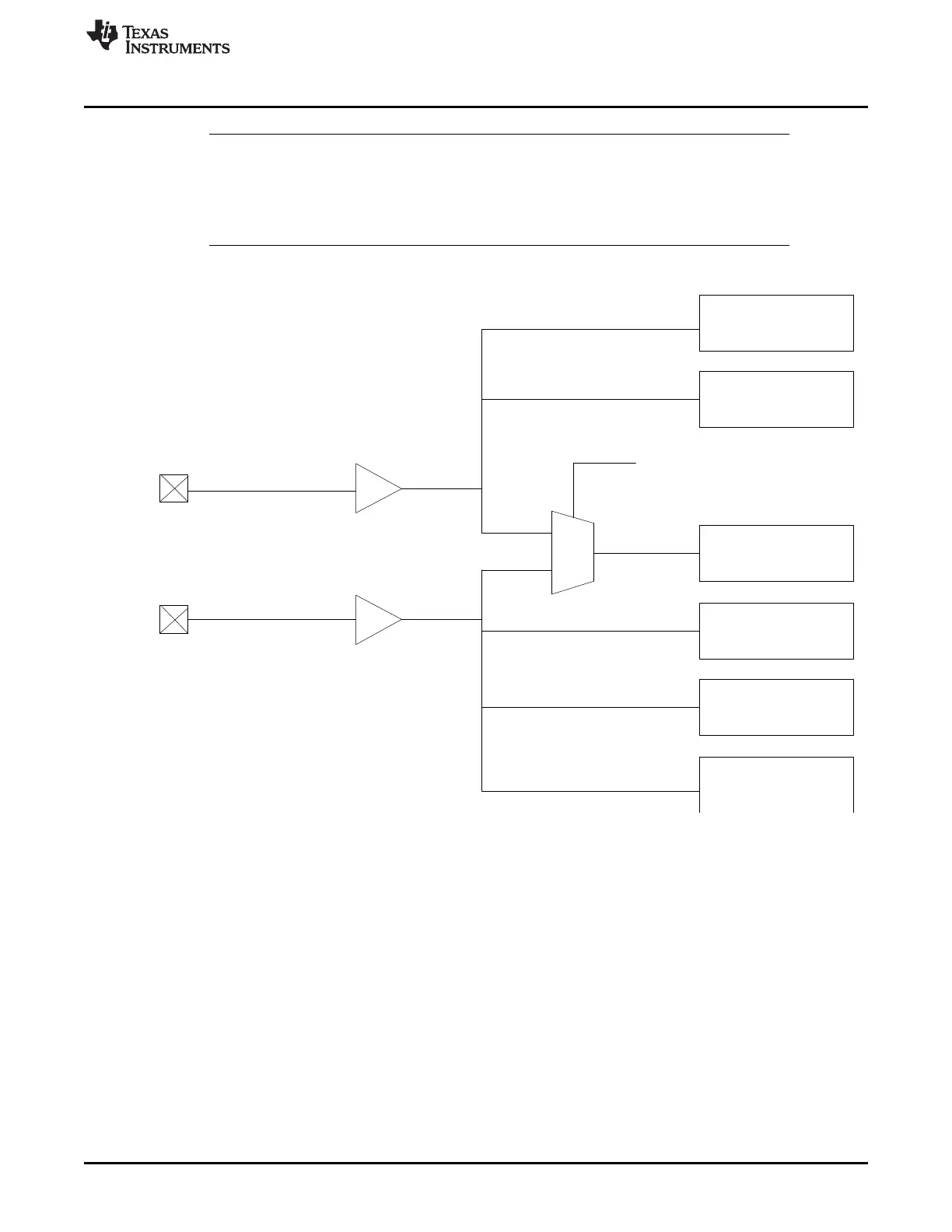

Figure 6-3. Input Multiplexing Example
