N1=N0+nK-P(n-1)

N1+K

N1+2K

Final Count = N1+mKFinal Count = N0+nK

N2=N1+mK-P(n-1)

Target=P(n-1)

SCNT

step

counter

N0+K

N0+2K

N0+3K

P(n)

P(n-1)

K counts

HET[2]

ext. ref.

signal

APCNT

period

counter

SCNT

step

counter

ACNT

angle

generator

P(n-1)

www.ti.com

Angle Functions

991

SPNU563A–March 2018

Submit Documentation Feedback

High-End Timer (N2HET) Module

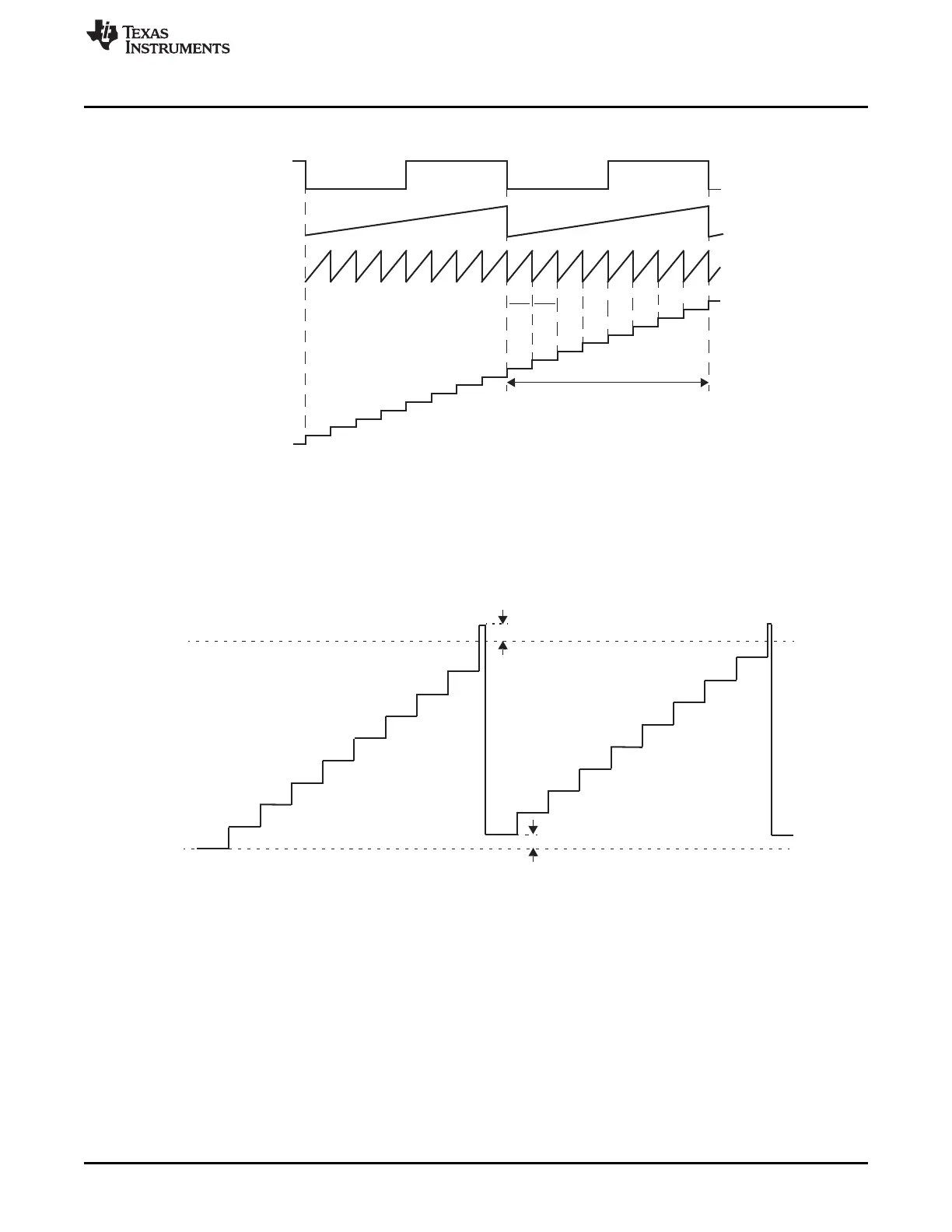

Figure 23-30. Operation of N2HET Count Instructions

Due to stepping, the final count of SCNT does not usually exactly match the target value P(n-1).

Figure 23-31 illustrates how SCNT compensates for this feature by starting each cycle with the remainder

(final count - target) of the previous cycle.

Figure 23-31. SCNT Count Operation
