P(n-1)

SCNT

N0 +K

N0 +2K

N0 +3K

N0 +4K

N1 +K

N1 +2K

N1 +3K

N1 +4K

N1=N0+nK-P(n-1)

Final Count = N0+nK

Final Count = N1+mK

N2=N1+mK-P(n-1)

ACNT

SCNT

PCNT

Input pin

K counts

P n 1–( )

---------------------

P n 1–( )

---------------------

P(n-1)

P(n)

Angle counter

Step counter

Period counter

www.ti.com

Angle Functions

999

SPNU563A–March 2018

Submit Documentation Feedback

High-End Timer (N2HET) Module

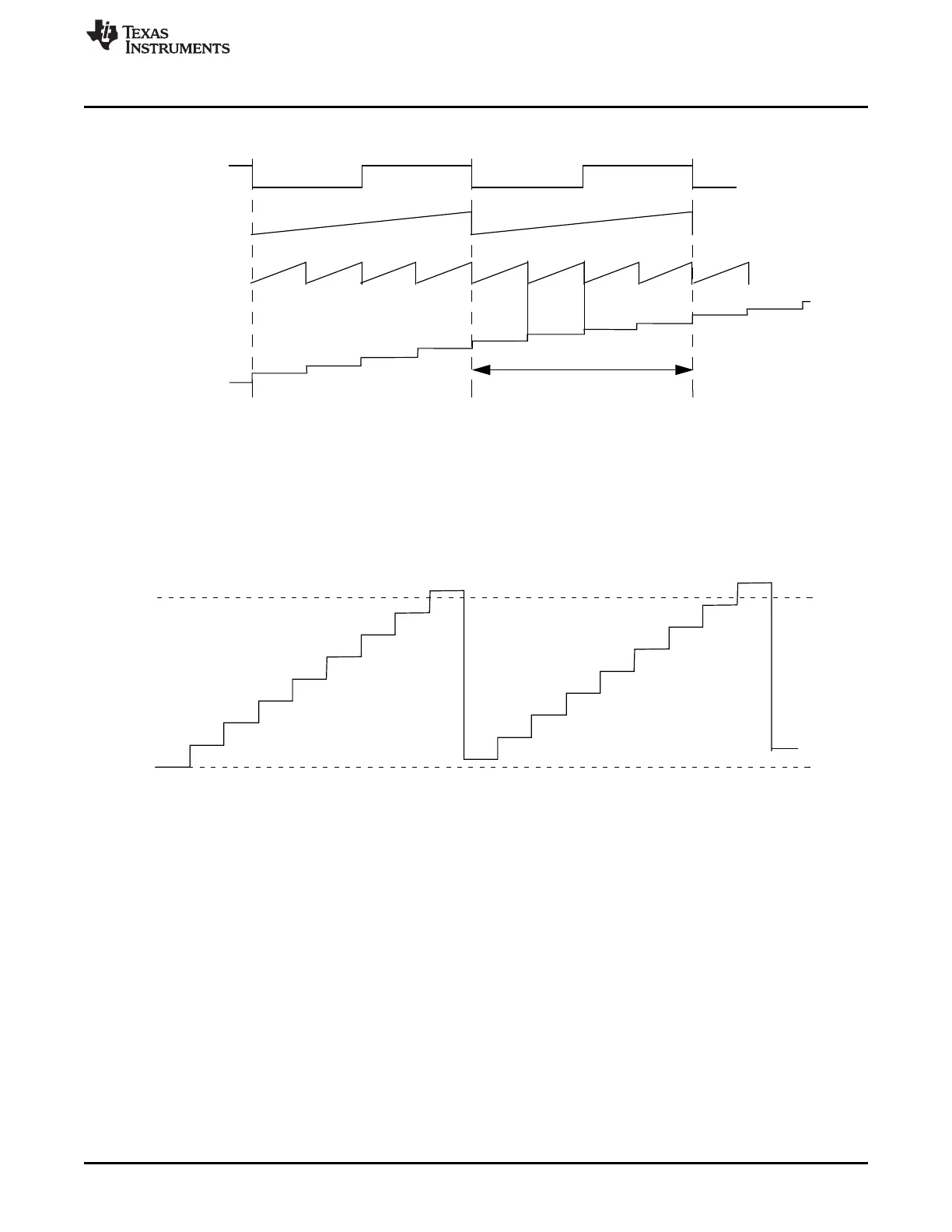

Figure 23-39. Angle Generation Using Time Based Algorithm

Because of stepping, the final count of the SCNT will usually be unequal to the target value PCNT(n-1)

and then will overflow. To compensate for this error generated by the algorithm, reset the SCNT to the

remainder of the difference between (SCNT - PCNT(n-1)).

To see how the SCNT and PCNT(n-1) generate angle ticks and compensate for the error due to the

integer fractions, see Figure 23-40.

Figure 23-40. SCNT Stepping Compensation
