DCAN

CAN_TX

CAN Core

Rx Tx

CAN_RX

www.ti.com

Test Modes

1451

SPNU563A–March 2018

Submit Documentation Feedback

Controller Area Network (DCAN) Module

27.14.3 External Loop Back Mode

The External Loop Back Mode is similar to the Loop Back Mode, however it includes the signal path from

CAN Core to Tx pin, the Tx pin itself, and the signal path from Tx pin back to CAN Core. When External

Loop Back Mode is selected, the input of the CAN core is connected to the input buffer of the Tx pin.

With this configuration, the Tx pin IO circuit can be tested.

External Loop Back Mode can be activated by setting bit ExL in Test Register to 1.

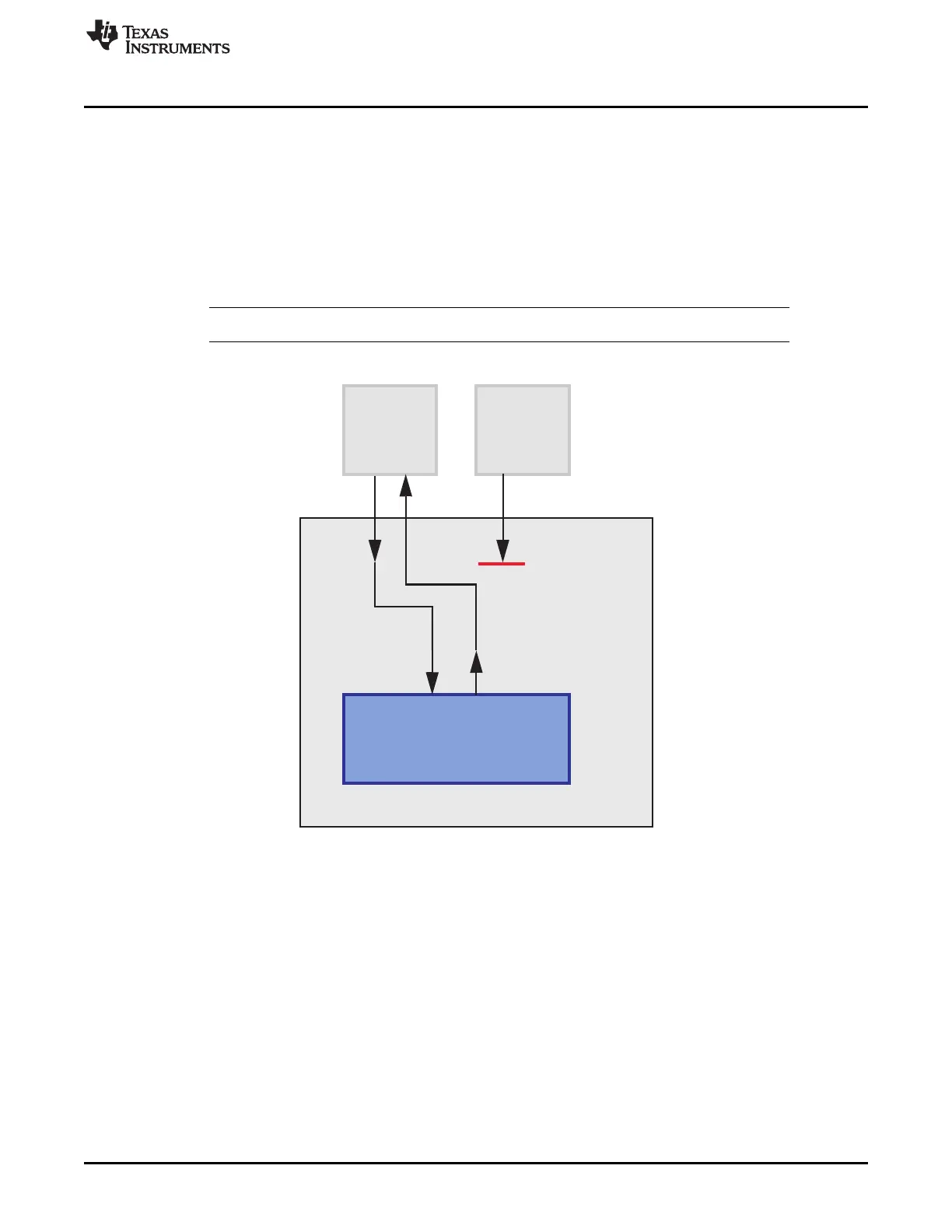

Figure 27-18 shows the connection of signals CAN_TX and CAN_RX to the CAN Core in External Loop

Back Mode.

NOTE: When Loop Back Mode is active (LBack bit set), the ExL bit will be ignored.

Figure 27-18. CAN Core in External Loop Back Mode
