Texas Instruments TMS570LC4357

To Next Page

To Previous Page

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

SIMO[7:0]

SOMI[7:0]

SPI Shift register

SIMO7

SIMO6

SIMO5

SIMO4

SIMO3

SIMO2

SIMO1

SIMO0

MULTIPLEXER

Parallel mode

SOMI7

SOMI6

SOMI5

SOMI4

SOMI3

SOMI2

SOMI1

SOMI0

DEMULTIPLEXER

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

SIMO[7:0]

SOMI[7:0]

SPI Shift register

SIMO7

SIMO6

SIMO5

SIMO4

SIMO3

SIMO2

SIMO1

SIMO0

MULTIPLEXER

Parallel mode

SOMI7

SOMI6

SOMI5

SOMI4

SOMI3

SOMI2

SOMI1

SOMI0

DEMULTIPLEXER

Basic Operation

www.ti.com

1520

SPNU563A–March 2018

Submit Documentation Feedback

Multi-Buffered Serial Peripheral Interface Module (MibSPI) with Parallel Pin

Option (MibSPIP)

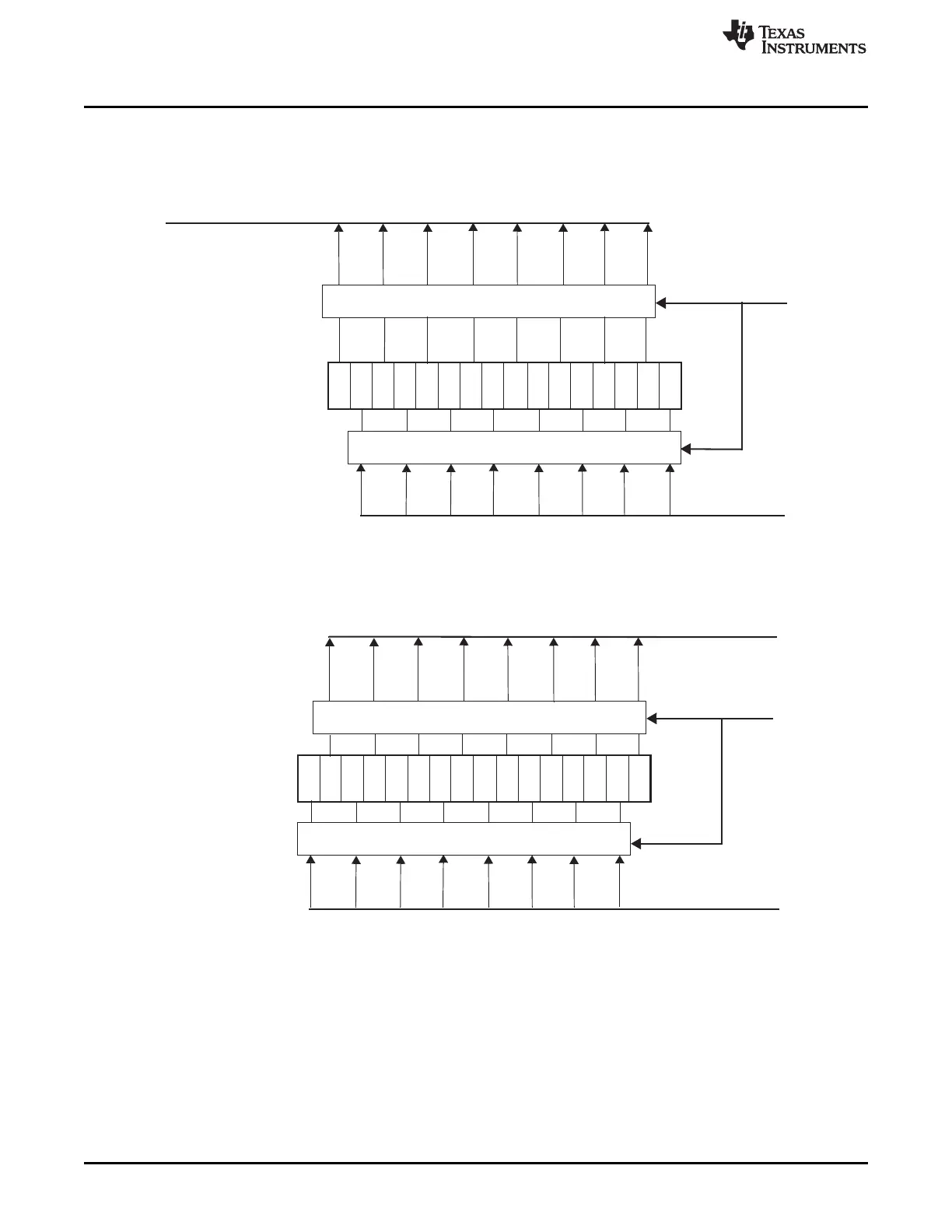

28.2.6.6.1 Parallel Mode Block Diagram

Figure 28-22 and Figure 28-23 show the parallel connections to the SPI shift register.

Figure 28-22. Block Diagram Shift Register, MSB First

Figure 28-23. Block Diagram Shift Register, LSB First
