Sample Waveforms

www.ti.com

1802

SPNU563A–March 2018

Submit Documentation Feedback

Inter-Integrated Circuit (I2C) Module

31.7 Sample Waveforms

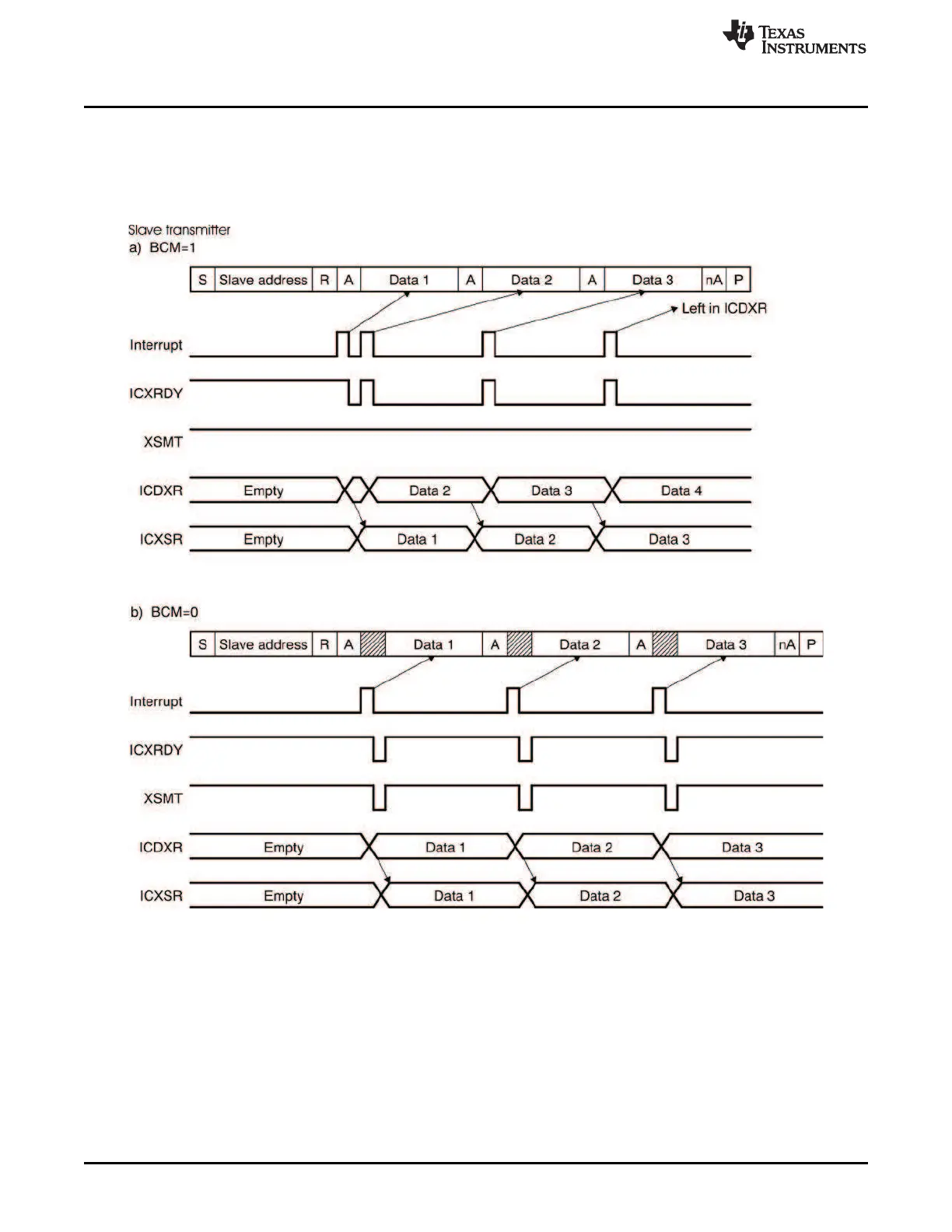

Figure 31-40 provides waveforms to illustrate the difference between normal operation and backward

compatibility mode.

Figure 31-40. Difference between Normal Operation and Backward Compatibility Mode
