Texas Instruments TMS570LC4357

(00)
(10)
(11)
(01)
(A,B)=
QEPA
QEPB
eQEP signals
10
01
00 11
Increment
counter
Decrement
counter
Decrement
counter
Increment
counter
Decrement
counter
Decrement
counter
Increment
counter
Increment
counter
Basic Operation www.ti.com
1964
SPNU563A–March 2018
Submit Documentation Feedback
Copyright © 2018, Texas Instruments Incorporated
Enhanced Quadrature Encoder Pulse (eQEP) Module
34.2.2.2.1.1 Quadrature Count Mode
The quadrature decoder generates the direction and clock to the position counter in quadrature count
mode.
Direction Decoding— The direction decoding logic of the eQEP circuit determines which one of the
sequences (QEPA, QEPB) is the leading sequence and accordingly updates the direction
information in QEPSTS[QDF] bit. Table 34-2 and Figure 34-6 show the direction decoding logic in
truth table and state machine form. Both edges of the QEPA and QEPB signals are sensed to
generate count pulses for the position counter. Therefore, the frequency of the clock generated by
the eQEP logic is four times that of each input sequence. Figure 34-7 shows the direction decoding
and clock generation from the eQEP input signals.

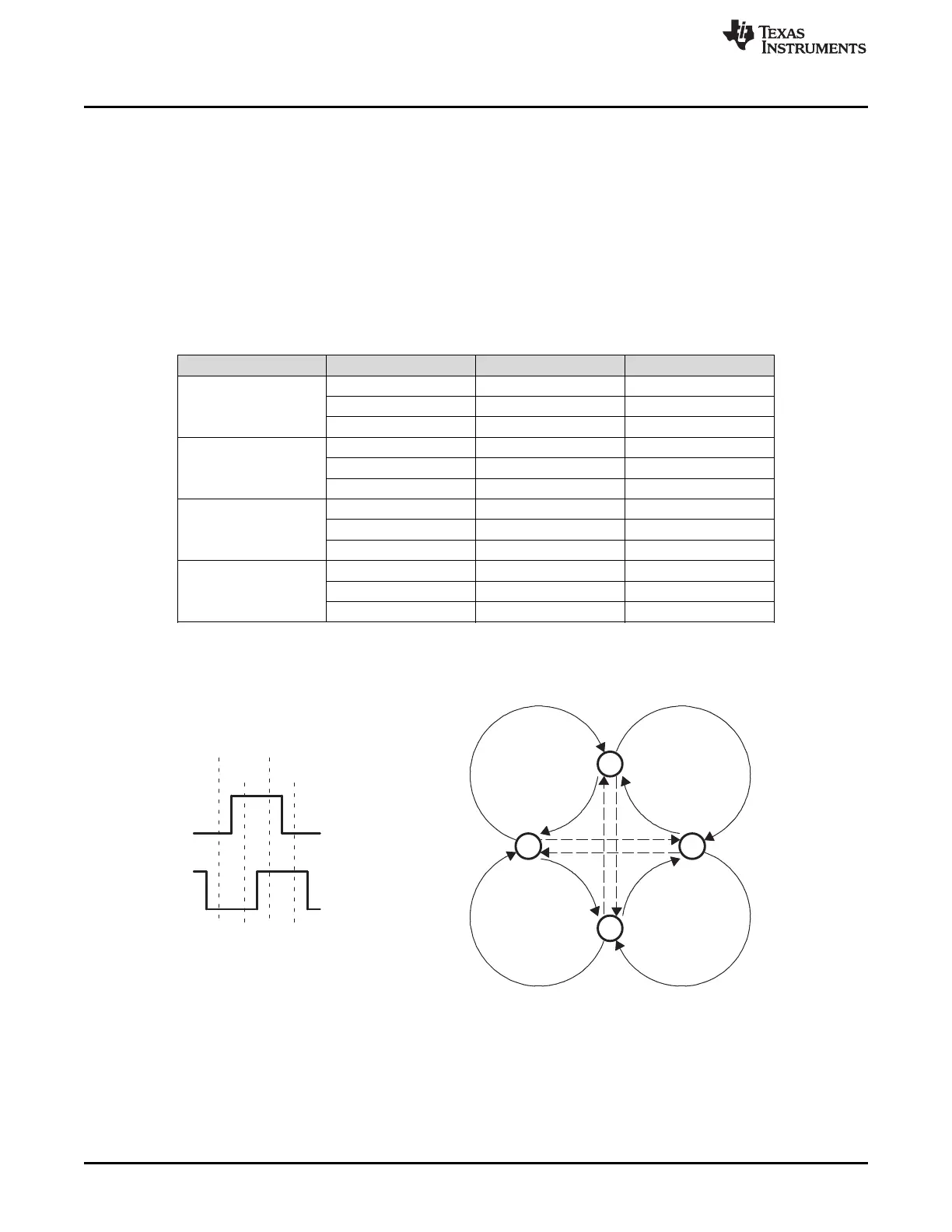

Table 34-2. Quadrature Decoder Truth Table
Previous Edge Present Edge QDIR QPOSCNT
QA↑ QB↑ UP Increment
QB↓ DOWN Decrement
QA↓ TOGGLE Increment or Decrement
QA↓ QB↓ UP Increment
QB↑ DOWN Decrement
QA↑ TOGGLE Increment or Decrement
QB↑ QA↑ DOWN Increment
QA↓ UP Decrement
QB↓ TOGGLE Increment or Decrement
QB↓ QA↓ DOWN Increment
QA↑ UP Decrement
QB↑ TOGGLE Increment or Decrement
Figure 34-6. Quadrature Decoder State Machine
