Module Operation
www.ti.com
632
SPNU563A–March 2018
Submit Documentation Feedback
Copyright © 2018, Texas Instruments Incorporated
Cyclic Redundancy Check (CRC) Controller Module
The total size of the memory system to be examined is also programmed in the respective transfer count
register inside DMA module. The DMA transfer count register is divided into two parts. They are element
count and frame count. Note that an HW DMA request can be programmed to trigger either one frame or
one entire block transfer. In Figure 18-3, an HW DMA request from a timer is used as a trigger source to
initiate DMA transfer. If all four CRC channels are active in AUTO mode then a total of four DMA requests
would be generated by CRC Controller.

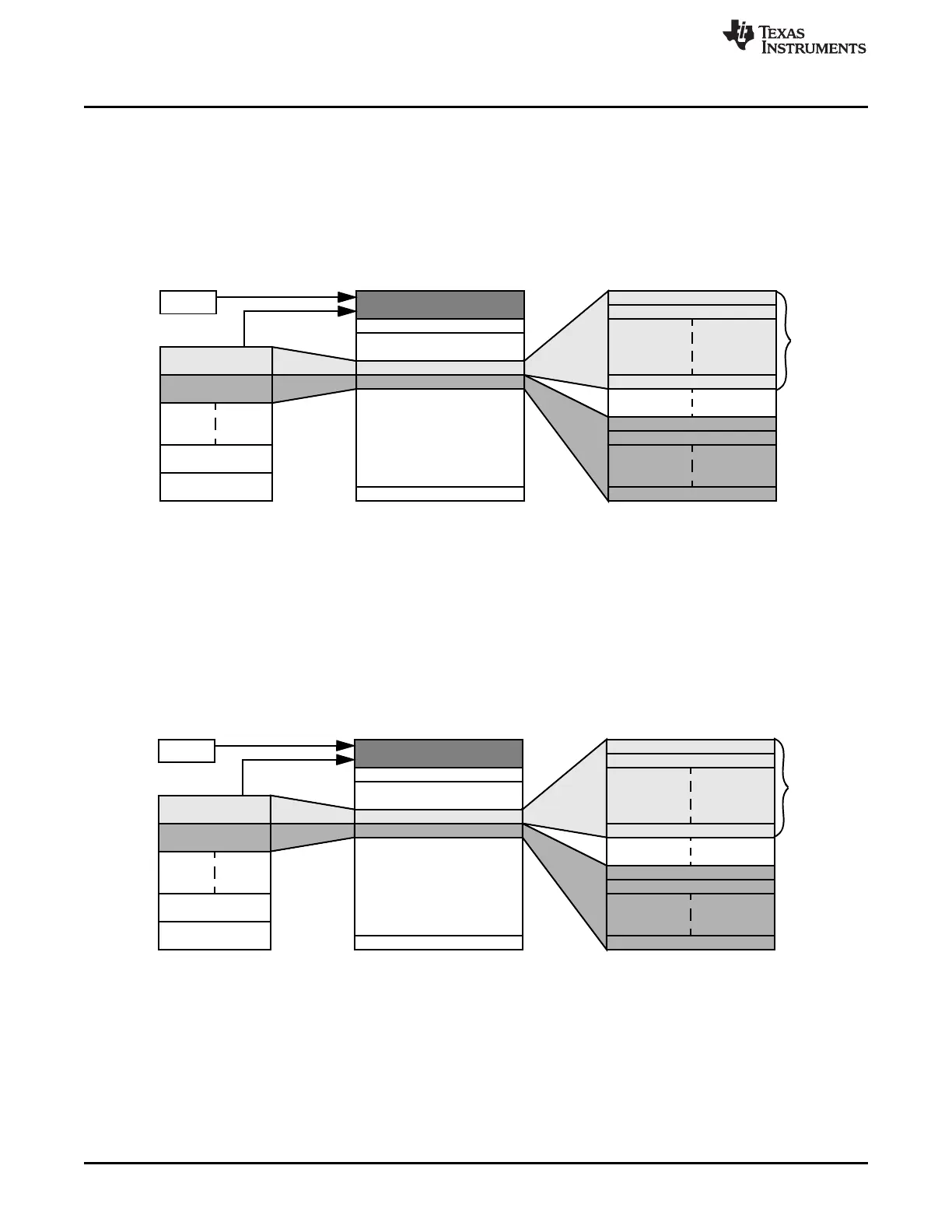

Figure 18-3. AUTO Mode Using Hardware Timer Trigger
18.2.7.2 AUTO Mode Using Software Trigger
The data patterns transfer can also be initiated by software. CPU can generate a software DMA request to
activate the DMA channel to transfer data patterns from source memory system to the PSA Signature
Register. To generate a software DMA request CPU needs to set the corresponding DMA channel in the
DMA software trigger register. Note that just one software DMA request from CPU is enough to complete
the entire data patterns transfer for all sectors. See Figure 18-4 for an illustration.
Figure 18-4. AUTO Mode With Software CPU Trigger
