High-End Timer (N2HET) Module
23.2.5.13 WCAP Execution Example (in HR Mode)
The HR capability is enabled for WCAP, if its hr_lr bit is zero. In this case the HR counter is always
enabled and is synchronized with the resolution loop. When the specified edge is detected, the current
value of the HR counter is captured in the HR capture register and written into the RAM after the next
WCAP execution. The WCAP instruction effectively time stamps the free running timer saved in a register
(for example, register A shown in Figure 23-23).

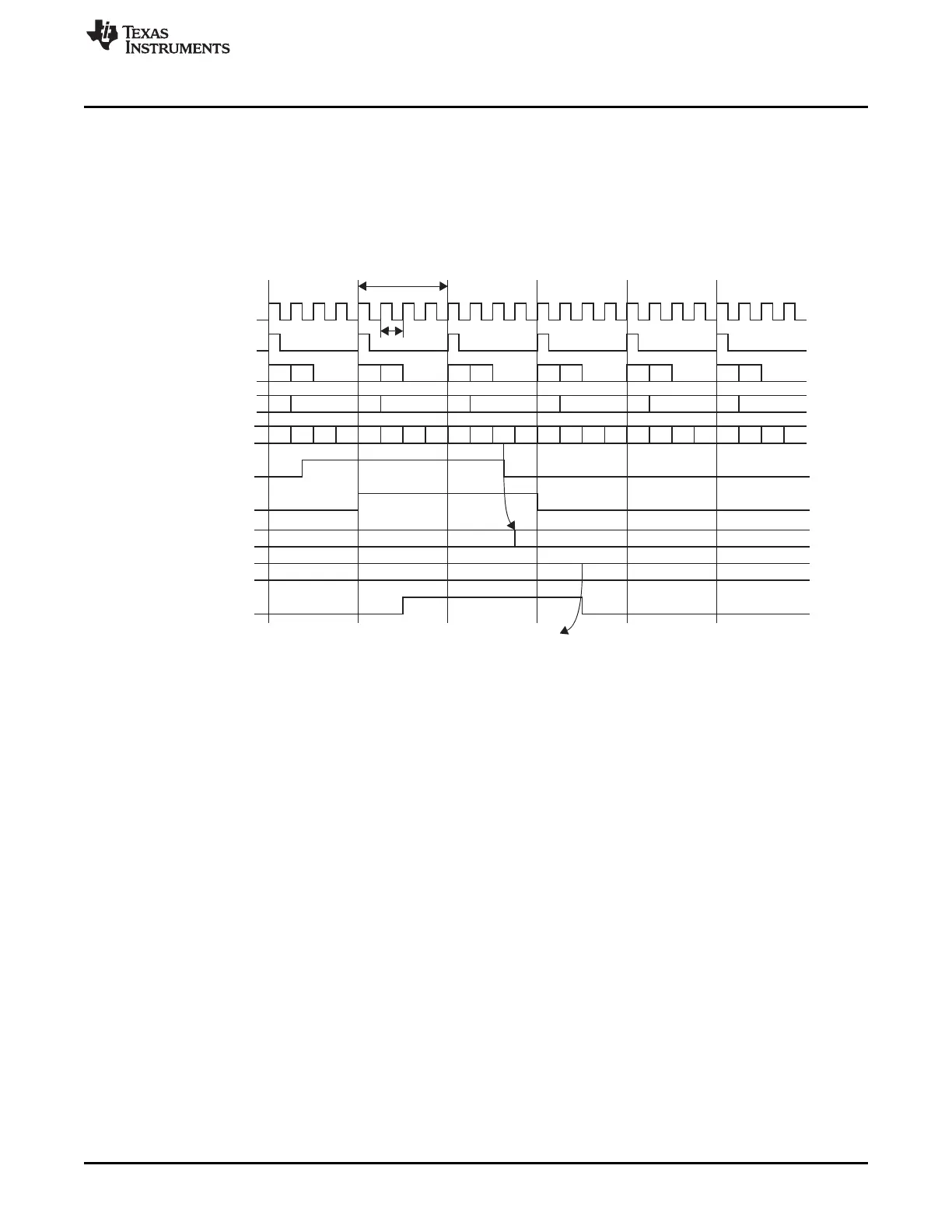

Figure 23-23. WCAP Instruction Timing
HETPFR_register = 0x0200 --> lr = 4, hr = 1, ts = 4
N2HET Program:
L00 CNT {reg=A, max=01ffffffh}
L01 WCAP {next=L00, cond_addr=L00, hr_lr=high, reg=A, event= FALL, pin=0,
data=0}
In the example, the WCAP is configured to capture the counter when a falling edge occurs. The WCAP
data field (WCAP_DF) is updated in the loop succeeding the loop in which the edge occurred. The WCAP
instruction evaluates an edge by comparing its Previous bit with the sync’d input signal. In Figure 23-23,
the current value of the counter (4) is captured to WCAP_DF[31:7] and the value of the HR capture
register (2) is transferred to the valid bits (according the lr prescaler) of WCAP_DF[6:0]. Therefore, in the
example 0x0240 is captured in WCAP_DF[31:0].
