Keysight InfiniiVision 3000T X-Series Oscilloscopes Programmer's Guide 45

Step 3. Verify the oscilloscope connection

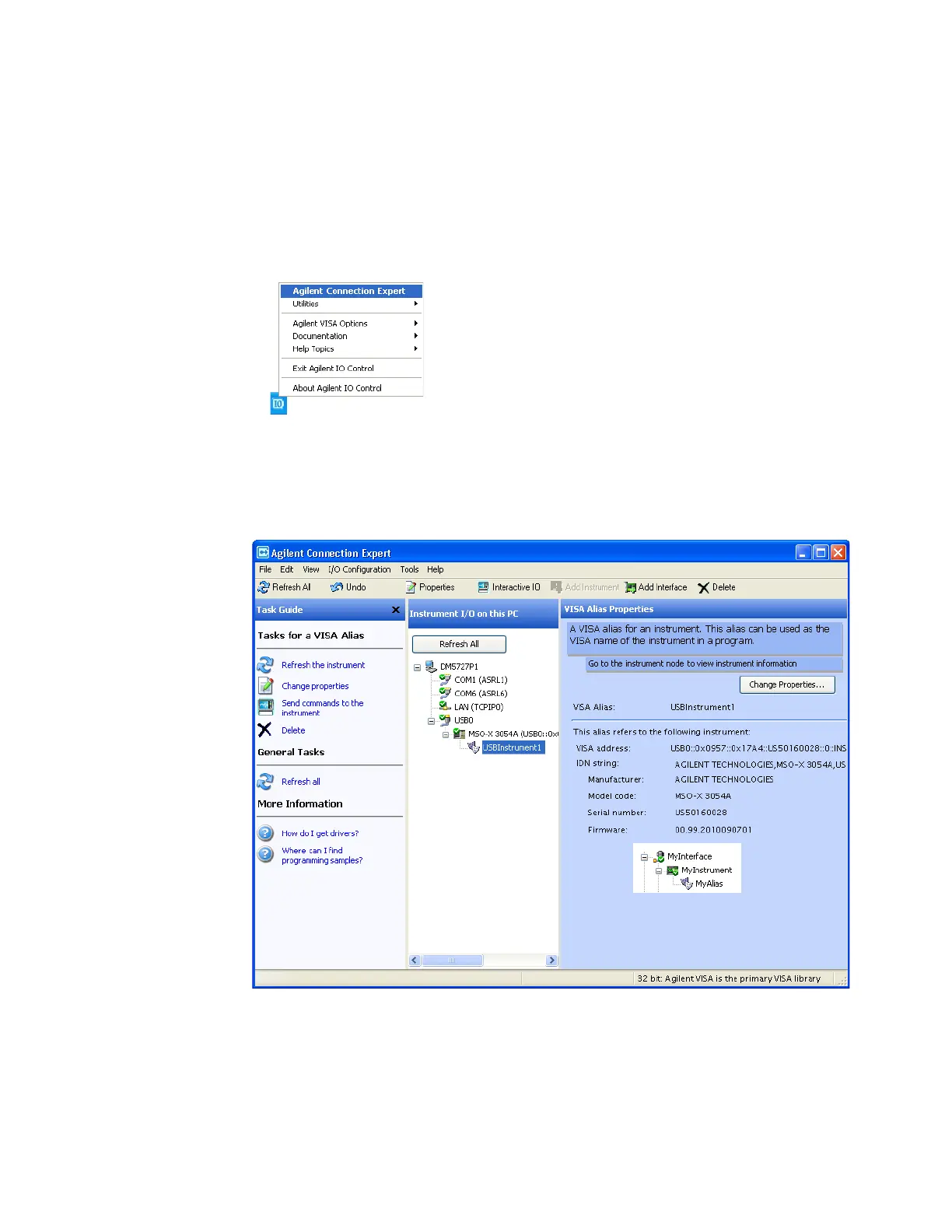

1 On the controller PC, click on the Keysight IO Control icon in the taskbar and

choose Keysight Connection Expert from the popup menu.

2 In the Keysight Connection Expert application, instruments connected to the

controller's USB and GPIB interfaces should automatically appear. (You can

click Refresh All to update the list of instruments on these interfaces.)
