Enhanced High-Resolution Pulse-Width Modulator (eHRPWM)
Figure 14-30 shows waveforms for typical cases where 0% < duty < 100%.

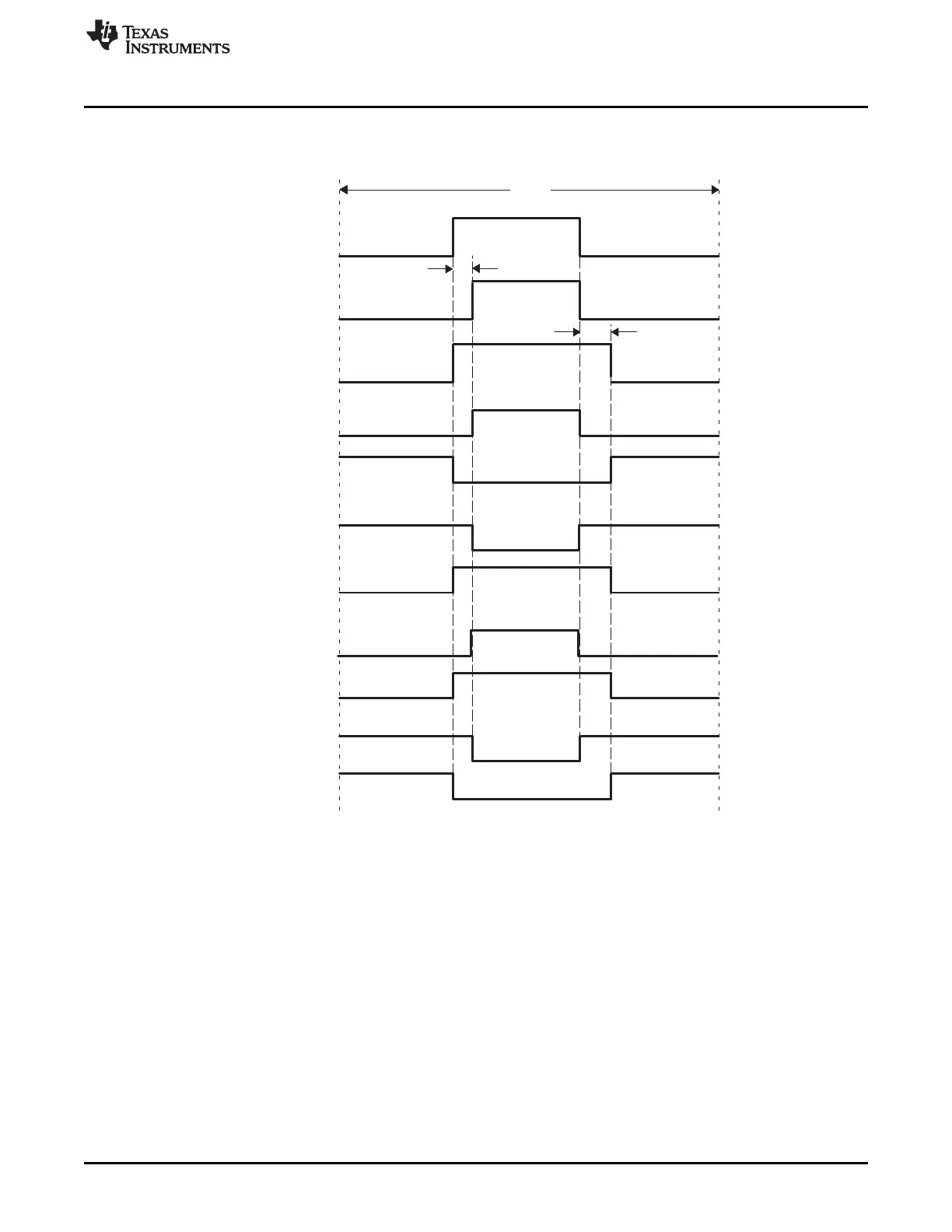

Figure 14-30. Dead-Band Waveforms for Typical Cases (0% < Duty < 100%)
The dead-band submodule supports independent values for rising-edge (RED) and falling-edge (FED)
delays. The amount of delay is programmed using the DBRED and DBFED registers. These are 10-bit
registers and their value represents the number of time-base clock, TBCLK, periods a signal edge is
delayed by. For example, the formula to calculate falling-edge-delay and rising-edge-delay are:
FED = DBFED × T
TBCLK
RED = DBRED × T
TBCLK
Where T
TBCLK
is the period of TBCLK, the prescaled version of SYSCLKOUT.
