Texas Instruments TMS320C6745 DSP - PWM-Chopper Submodule Signals and Registers

Start
Clk
One
shot
Pulse-width
PCCTL
[OSHTWTH]
PWMA_ch
Bypass
Dividerand
dutycontrol
PSCLK
OSHT
EPWMxA
PCCTL
[CHPEN]
EPWMxA
/8SYSCLKOUT
Pulse-width
Start
shot
Clk
One
PCCTL
[OSHTWTH]
1
OSHT
PCCTL[CHPFREQ]
PCCTL[CHPDUTY]
PWMB_ch
Bypass
EPWMxA
EPWMxB
1
0
0
www.ti.com Architecture
329
SPRUH91D–March 2013–Revised September 2016
Submit Documentation Feedback
Copyright © 2013–2016, Texas Instruments Incorporated
Enhanced High-Resolution Pulse-Width Modulator (eHRPWM)
14.2.7.3 Operational Highlights for the PWM-Chopper Submodule

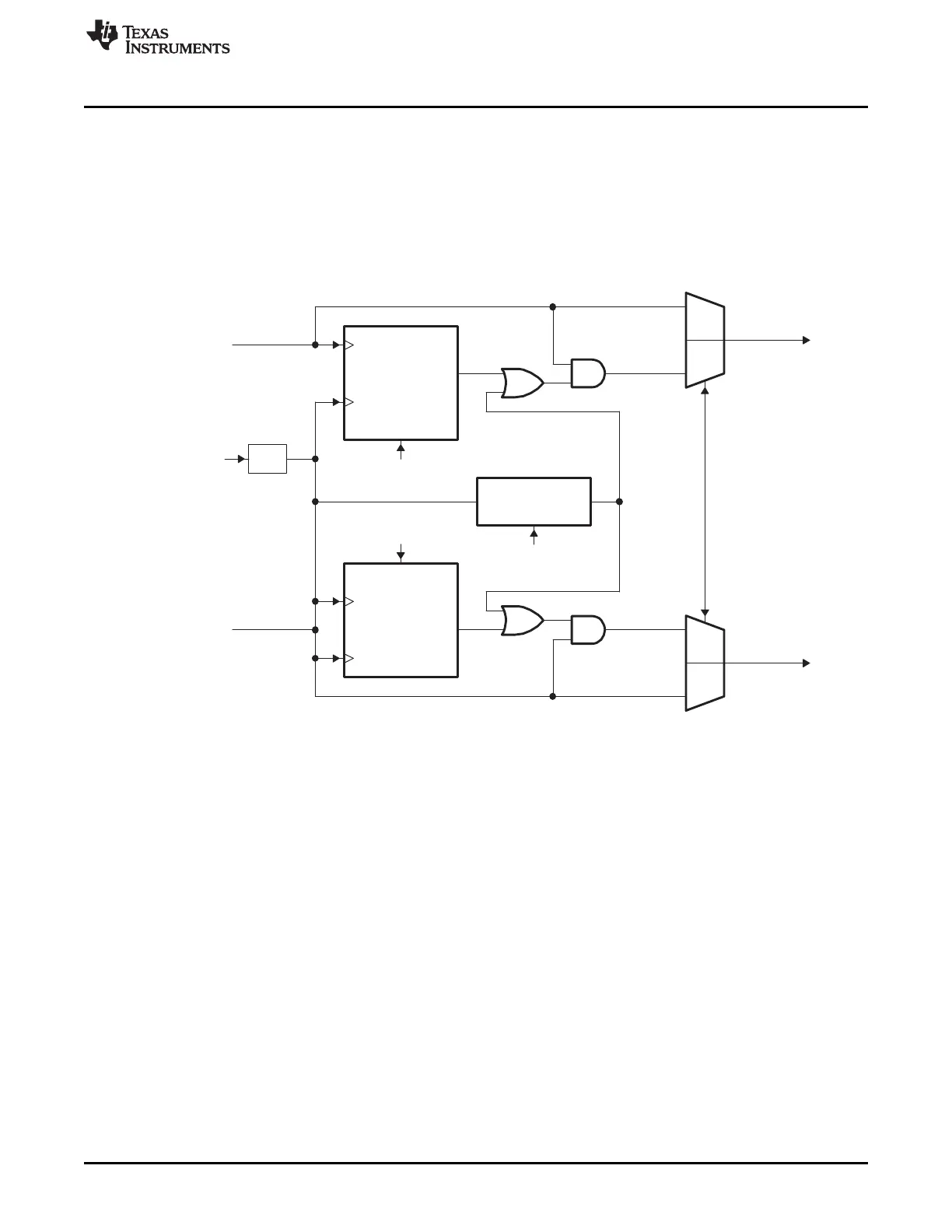

Figure 14-32 shows the operational details of the PWM-chopper submodule. The carrier clock is derived
from SYSCLKOUT. Its frequency and duty cycle are controlled via the CHPFREQ and CHPDUTY bits in
the PCCTL register. The one-shot block is a feature that provides a high energy first pulse to ensure hard
and fast power switch turn on, while the subsequent pulses sustain pulses, ensuring the power switch
remains on. The one-shot width is programmed via the OSHTWTH bits. The PWM-chopper submodule
can be fully disabled (bypassed) via the CHPEN bit.
Figure 14-32. PWM-Chopper Submodule Signals and Registers
