Texas Instruments TMS320C6745 DSP - Mcasp to 6-Channel DAC and 2-Channel DAC; Mcasp to Parallel 2-Channel Dacs

To Next Page

To Previous Page

TXRX

McASP

Onchip

DIR

DVD

player

Coaxial/

optical

S/PDIF

encoded

I2S

2-ch

DAC

Amp

6-ch

DAC

Amp

Stereo

I2S

TXRX

McASP

Onchip

DIR

DVD

player

Coaxial/

optical

S/PDIF

encoded

I2S

Amp

2-ch

DAC

2-ch

Amp

2-ch

DAC

Amp

DAC

2-ch

Amp

StereoI2S

www.ti.com

985

SPRUH91D–March 2013–Revised September 2016

Submit Documentation Feedback

Multichannel Audio Serial Port (McASP)

24.0.18.1 System Level Connections

Figure 24-2 through Figure 24-5 show examples of McASP usage in digital audio encoder/decoder

systems.

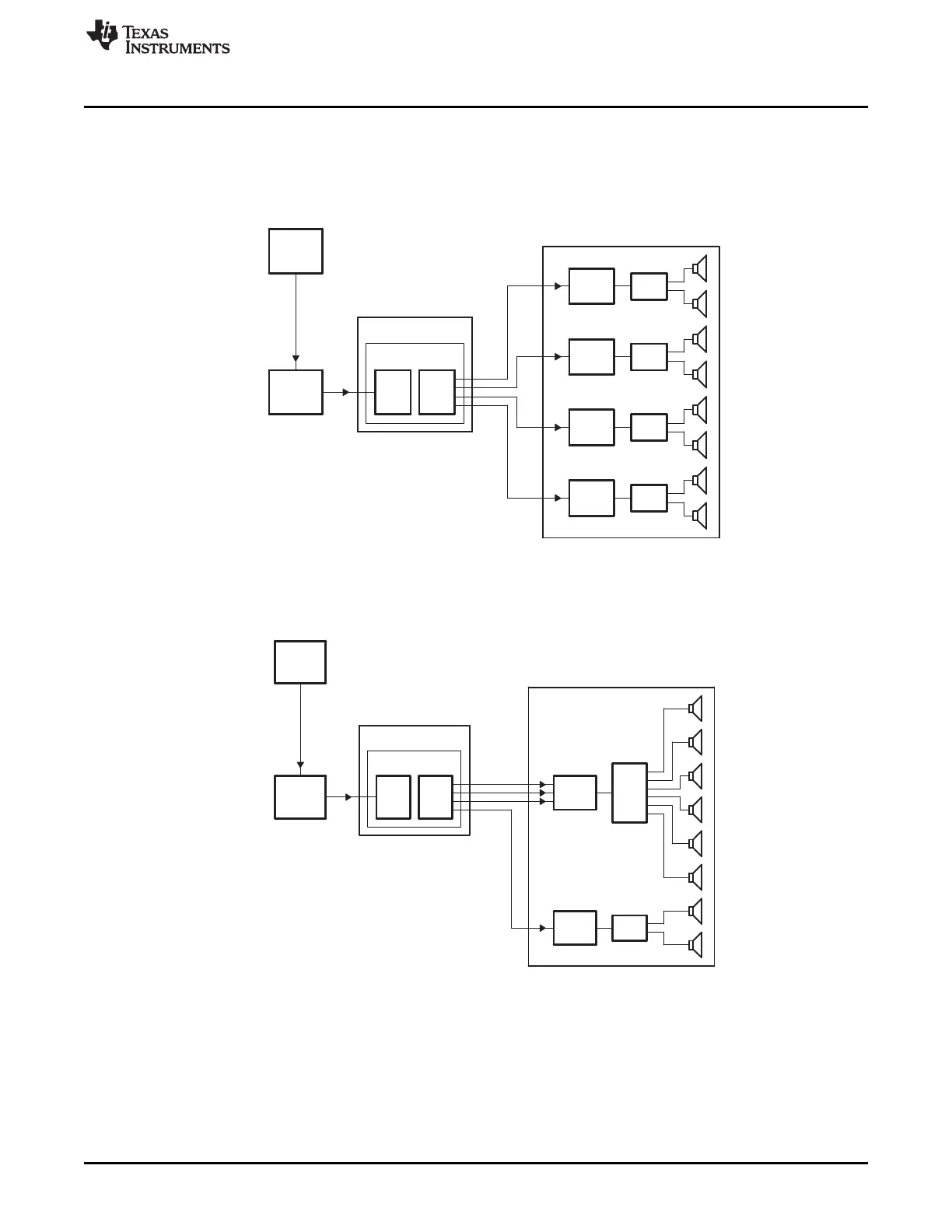

Figure 24-2. McASP to Parallel 2-Channel DACs

Figure 24-3. McASP to 6-Channel DAC and 2-Channel DAC
