Enhanced High-Resolution Pulse-Width Modulator (eHRPWM)
14.2.7.4 Waveforms

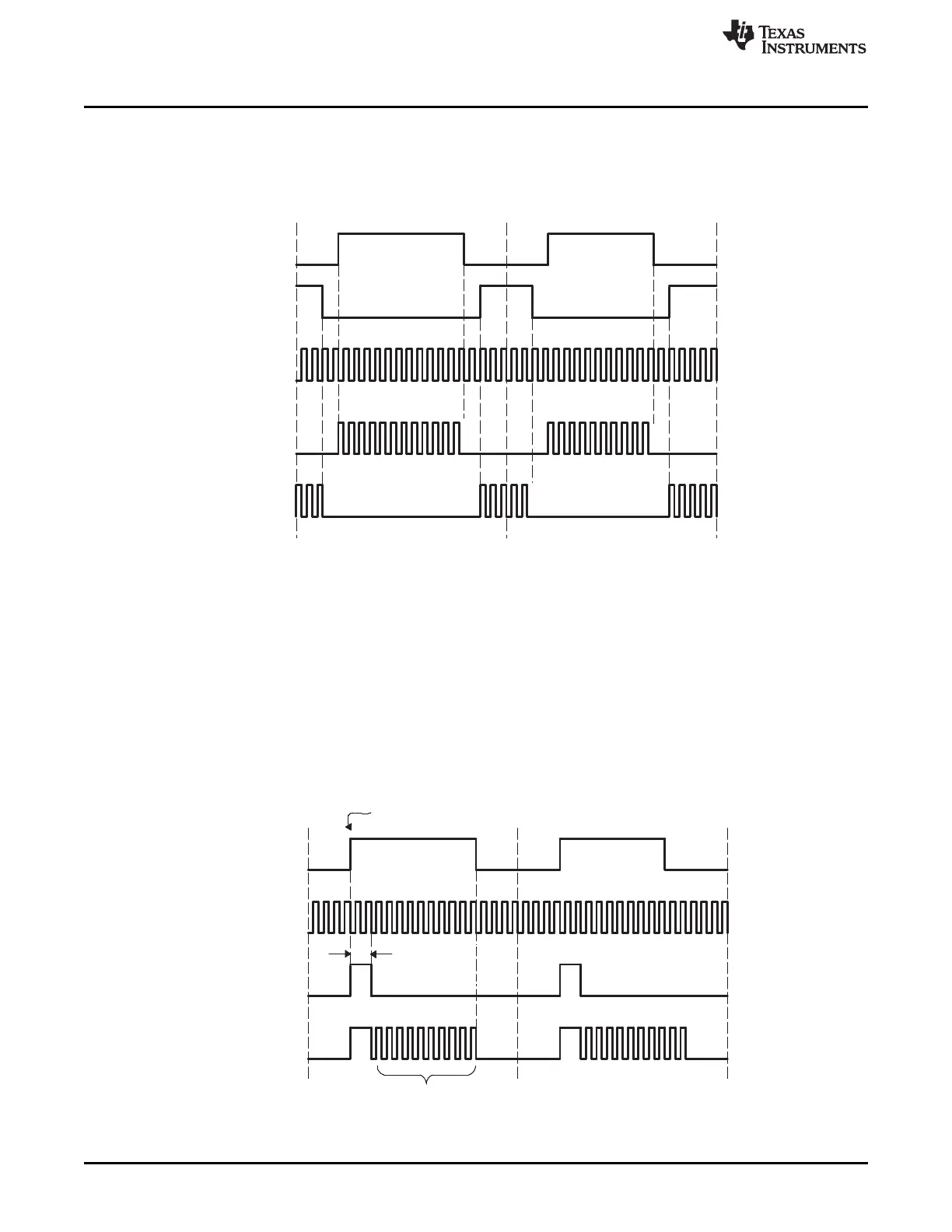

Figure 14-33 shows simplified waveforms of the chopping action only; one-shot and duty-cycle control are
not shown. Details of the one-shot and duty-cycle control are discussed in the following sections.
Figure 14-33. Simple PWM-Chopper Submodule Waveforms Showing Chopping Action Only
14.2.7.4.1 One-Shot Pulse
The width of the first pulse can be programmed to any of 16 possible pulse width values. The width or
period of the first pulse is given by:
T
1stpulse
= T
SYSCLKOUT
× 8 × OSHTWTH
Where T
SYSCLKOUT
is the period of the system clock (SYSCLKOUT) and OSHTWTH is the four control bits
(value from 1 to 16)
Figure 14-34 shows the first and subsequent sustaining pulses.
Figure 14-34. PWM-Chopper Submodule Waveforms Showing the First Pulse and
Subsequent Sustaining Pulses
