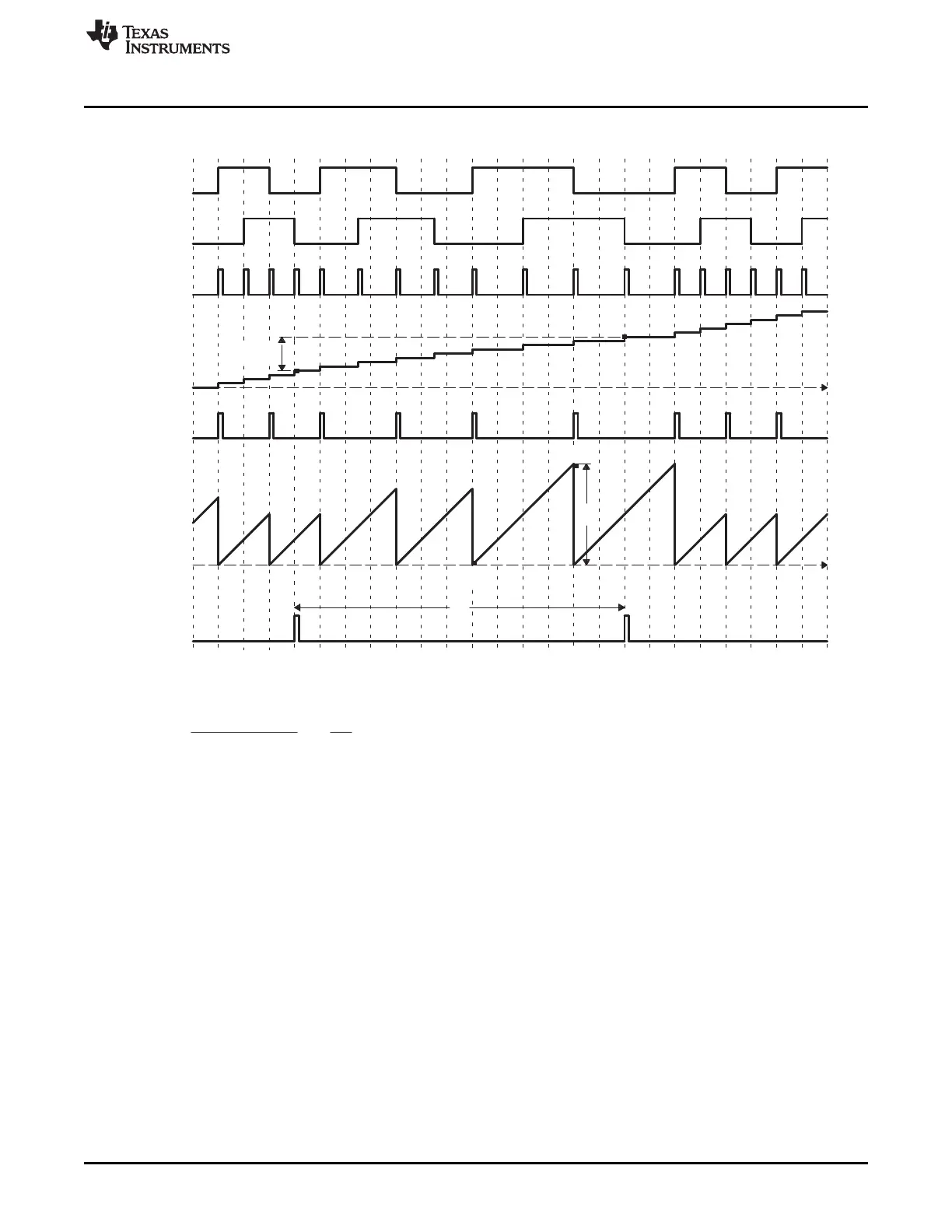

Figure 15-17. eQEP Edge Capture Unit - Timing Details
Velocity Calculation Equations:
(4)
where
v(k): Velocity at time instant k
x(k): Position at time instant k
x(k-1): Position at time instant k - 1
T: Fixed unit time or inverse of velocity calculation rate
ΔX: Incremental position movement in unit time
X: Fixed unit position
ΔT: Incremental time elapsed for unit position movement
t(k): Time instant "k"
t(k-1): Time instant "k - 1"
Unit time (T) and unit period (X) are configured using the QUPRD and QCAPCTL[UPPS] registers.
Incremental position output and incremental time output is available in the QPOSLAT and QCPRDLAT
registers.
