Administer SDH LAG
1044
WebEML User Manual
72.3 Procedure
1. Click on the SDH LAG button in the LAG Configuration screen. The SDH LAG
screen opens; see Figure 778.

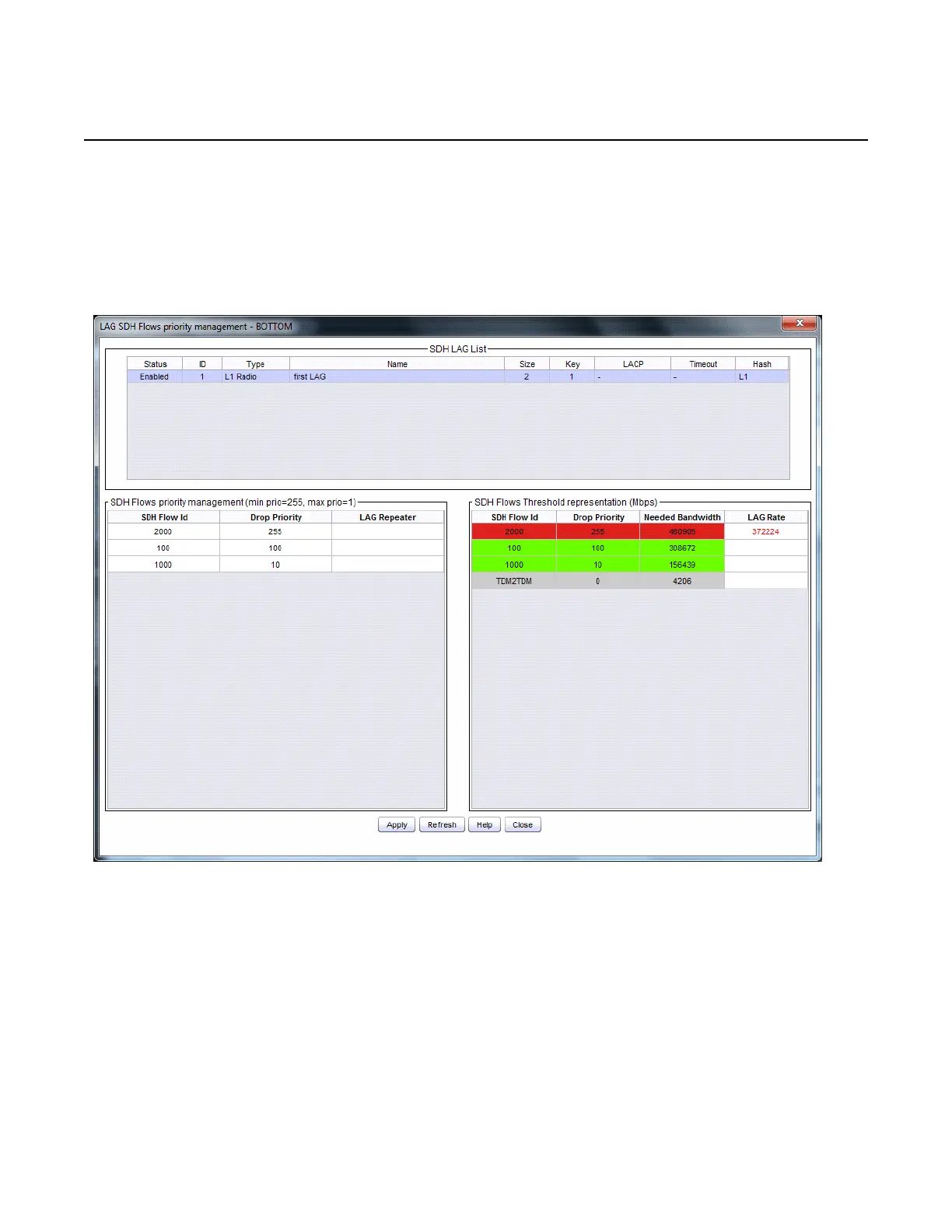

Figure 778 SDH LAG screen
2. Select the LAG from the SDH LAG List panel.
3. In the SDH Flows priority management panel, double click on the Drop Priority
cell.
4. Enter the new value and press Enter. The required bandwidth for the drop
priority appears in the SDH Flows Threshold pane.
