WebEML User Manual Administer QoS configuration
157
3. Click Yes.
QoS Classification tab updates. See Figure 70.

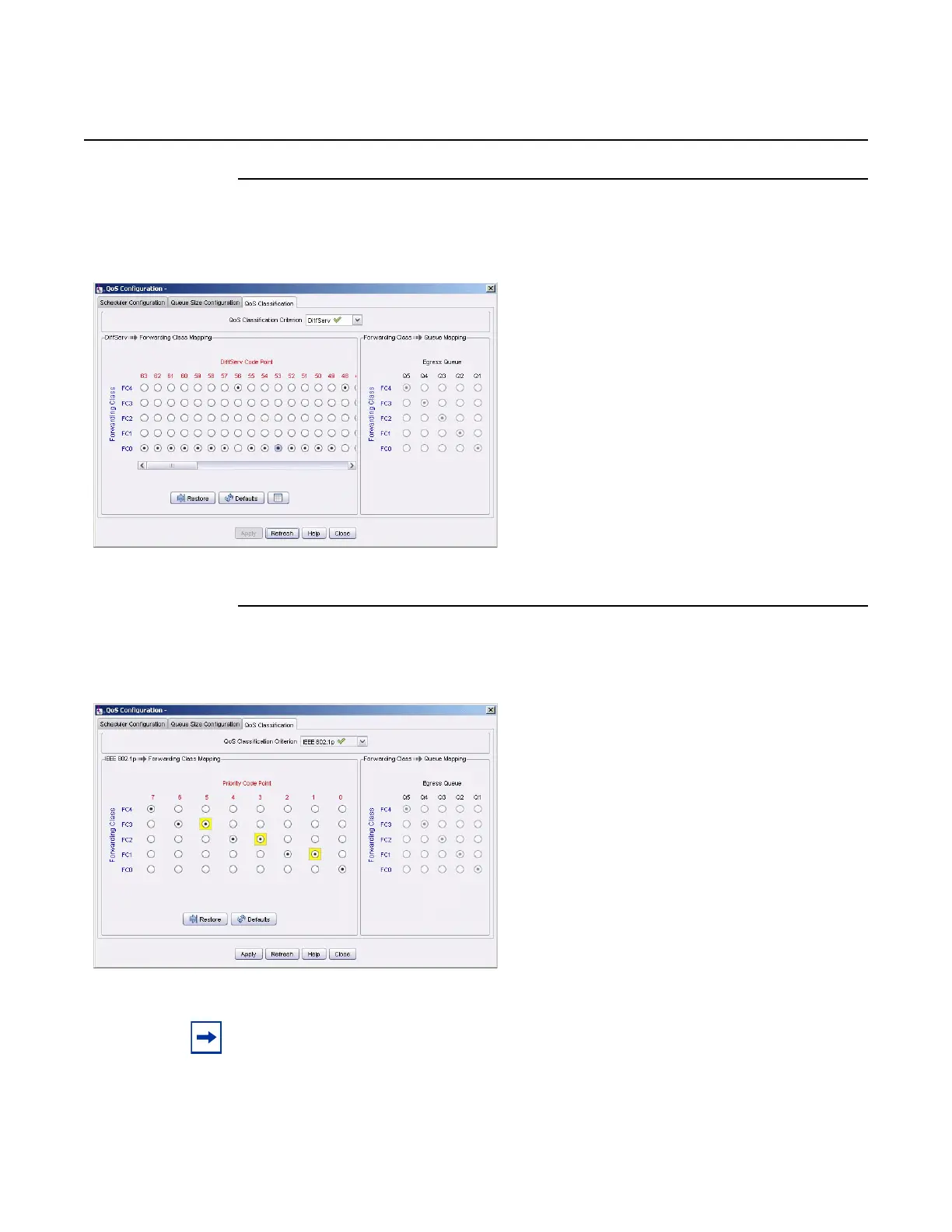

Figure 70 Provisioned QoS Classification Criterion
To provision 802.1p PCP to Internal Forwarding Class values
1. From the IEEE 802.1p to Forwarding Class Mapping pane, select new PCP to
Forwarding Class value. See Figure 71.
Figure 71 Provision 802.1p PCP to Internal Forwarding Class Mapping
Note: The background of modified IEEE 802.1p PCP to Forwarding Class field is displayed
in yellow.
