WebEML User Manual Log in to and out of system
99
JUSM 9500 MPR application launches. See Figure 20 for an example
connected to an MSS-8 shelf. See Figure 21 for an example connected to an
MSS-4 shelf. See Figure 22 for an example connected to an MSS-1 shelf. See
Figure 23 for an example connected to an MSS-O shelf.

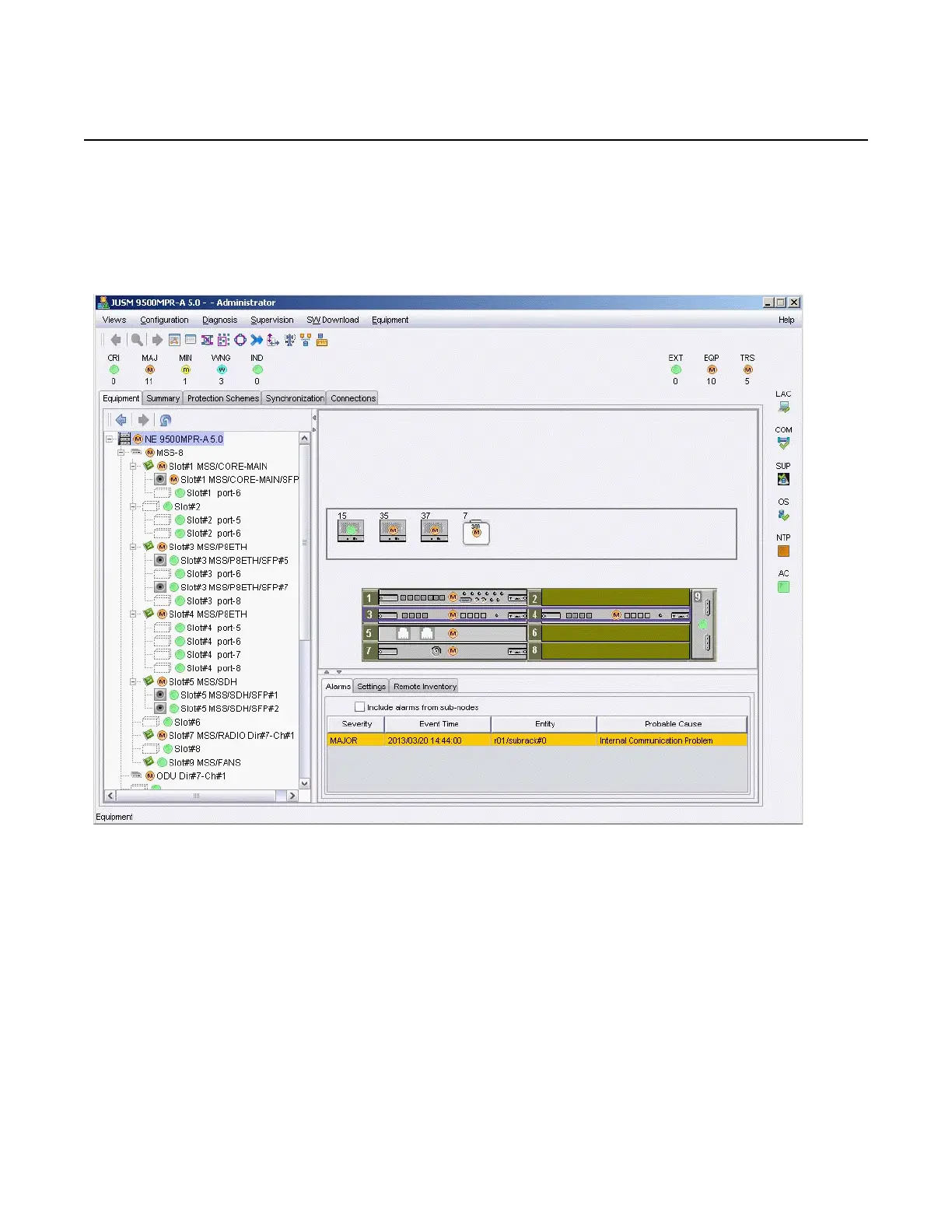

Figure 20 JUSM/CT 9500 MPR main screen MSS-8 shelf
Release 7.0.0 3DB 19286 ACAA Issue 01
