Nokia 9500 MPR - Figure 701 Diffserv

Use the Provisioning Tool
932
WebEML User Manual

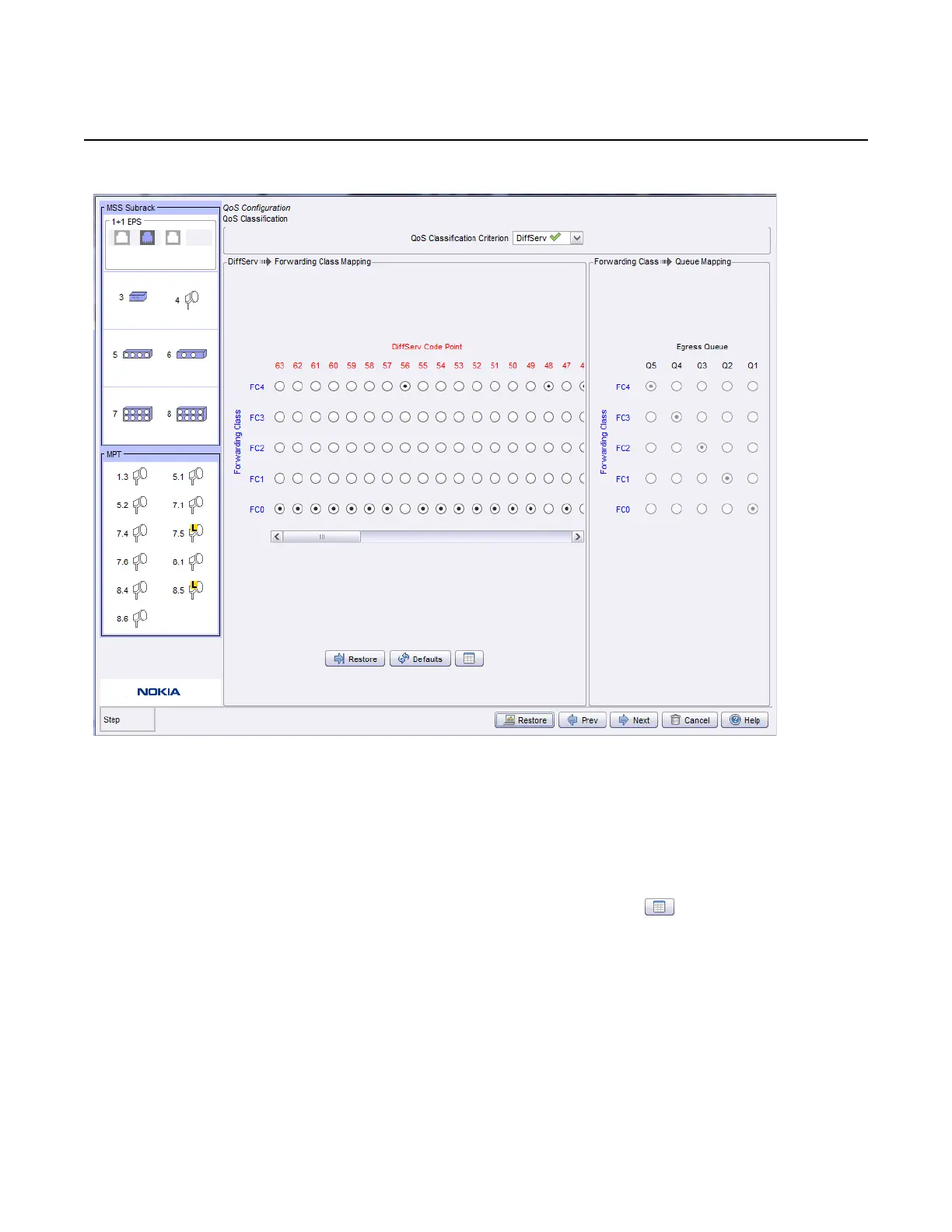

Figure 701 DiffServ
Perform the following to complete the classification of the DiffServ Code Point to
a specific queue:
i. Change the classification on the left area by clicking on the radio buttons.
The modifications will appear in yellow.
Click on Restore to go back to the previous configuration or on Defaults to
go back to the default settings.
ii. Click on the Switch to Per Range view button ( )to open a read-only table
with the current association “DiffServ to Forwarding Class Mapping”, as
shown in Figure 702.
