Provision cross connections in a mixed fiber/
microwave Ring
748
WebEML User Manual

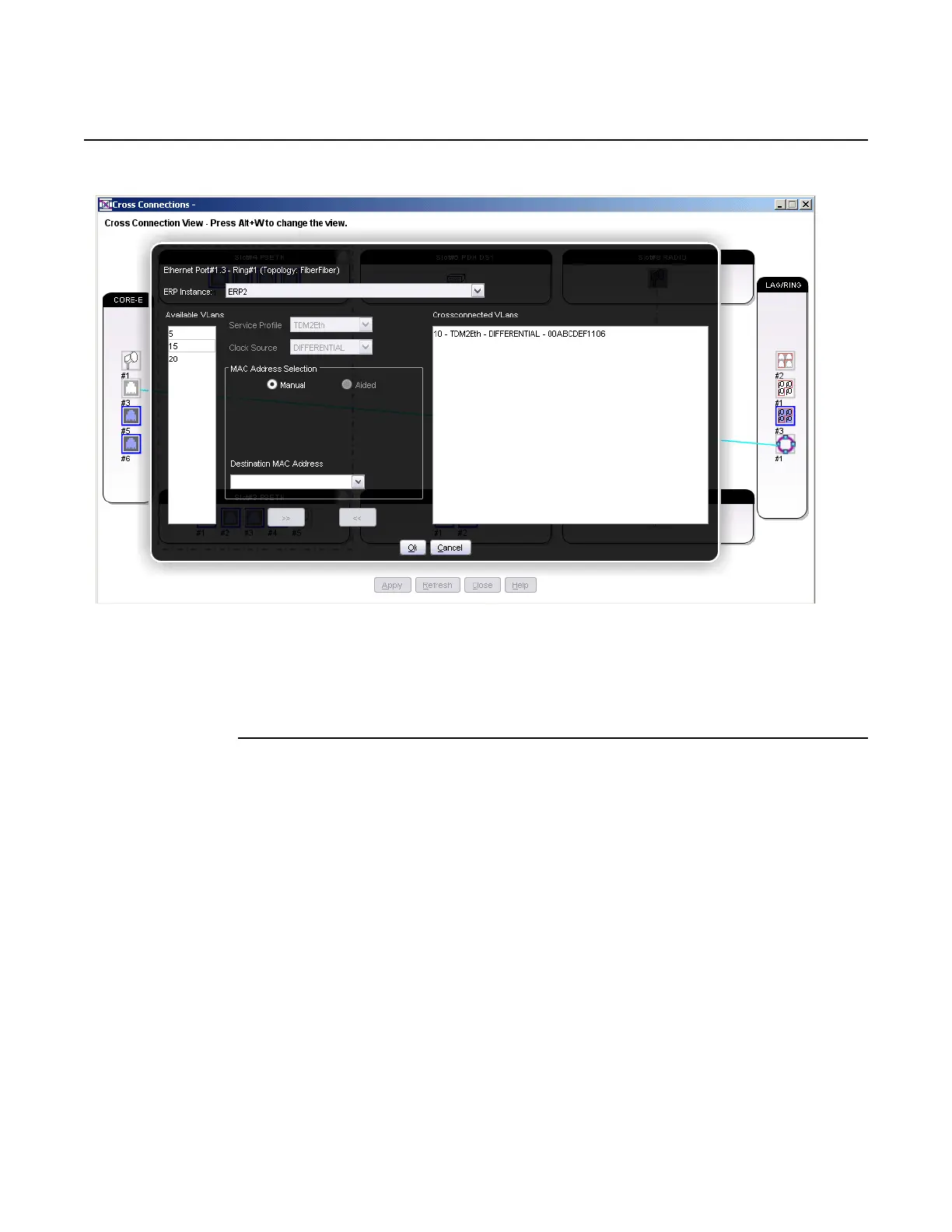

Figure 563 NE F to NE G: Ethernet-Ring cross-connection on Node C
a. Choose the flow IDs to cross-connect from the Available VLANs list
b. Choose the Service profile: TDM2TDM or TDM2ETH
c. Choose the Clock Source, if the Service profile is TDM2ETH
d. Enter the Destination MAC address: NE G Unicast MAC address
5. Configure a pass-through cross-connection on Node A, see Figure 564.
