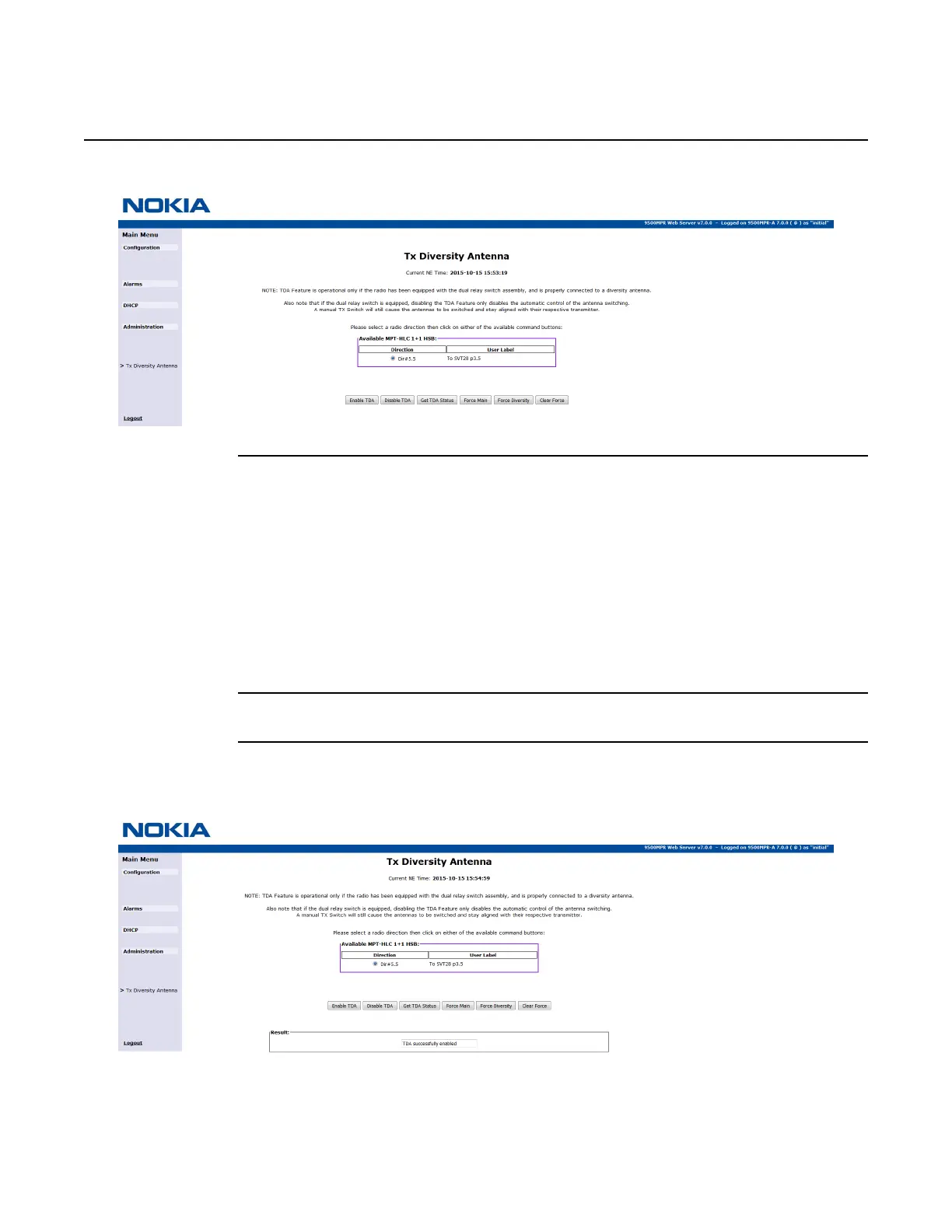

Nokia 9500 MPR - Figure 781 Tx Diversity Antenna Webpage; Figure 782 Tx Diversity Antenna Enabled

To Next Page

To Previous Page

Perform Tx Diversity Antenna operations

1072

WebEML User Manual

Figure 781 Tx Diversity Antenna webpage

2. Perform any of the following procedures, as required:

− To enable TDA

− To disable TDA

− To view TDA status

− To force transmission to the main antenna

− To force transmission to the diversity antenna

− To clear forced transmission

To enable TDA

1. Select a radio direction in the Available MPT-HLC 1+1 HSB panel.

2. Click Enable TDA. A confirmation message is displayed; see Figure 782.

Figure 782 Tx Diversity Antenna enabled

TDA is enabled.
