Nokia 9500 MPR - Figure 436 Node I to NE G: Ethernet-PDH Cross-Connection on NE G

Provision cross connections in a mixed fiber/
microwave Ring
626
WebEML User Manual

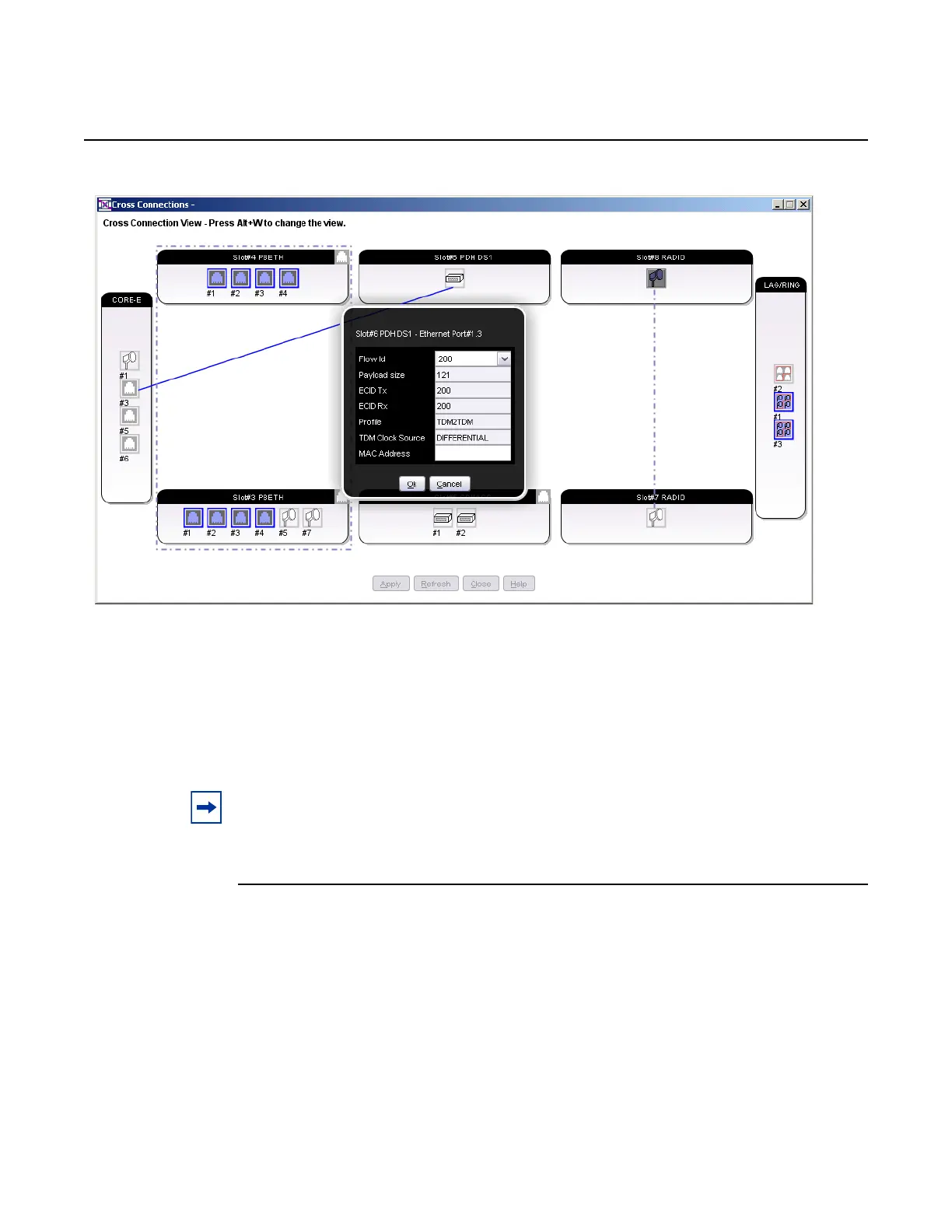

Figure 436 Node I to NE G: Ethernet-PDH cross-connection on NE G
e. Choose the flow ID from the Flow Id drop-down
f. Configure the payload size, ECID Tx, and ECID Rx parameters
g. Choose the Service profile: TDM2TDM or TDM2ETH
h. Choose the TDM clock source, if the Service profile is TDM2ETH
i. Enter the MAC address: Node A Unicast MAC address
2. Configure an Ethernet-Ring cross-connection on Node C, see Figure 437.
Note: The Destination MAC address on NE G can be either the Unicast MAC address of
Node A or that of Node D. However, the configuration on NE G affects the configuration on
other nodes in the fiber chain.
