Nokia 9500 MPR - Figure 508 NE E to Node C: Ethernet-Ring Cross-Connection on Node a

WebEML User Manual Provision cross connections in a mixed fiber/
microwave Ring
693

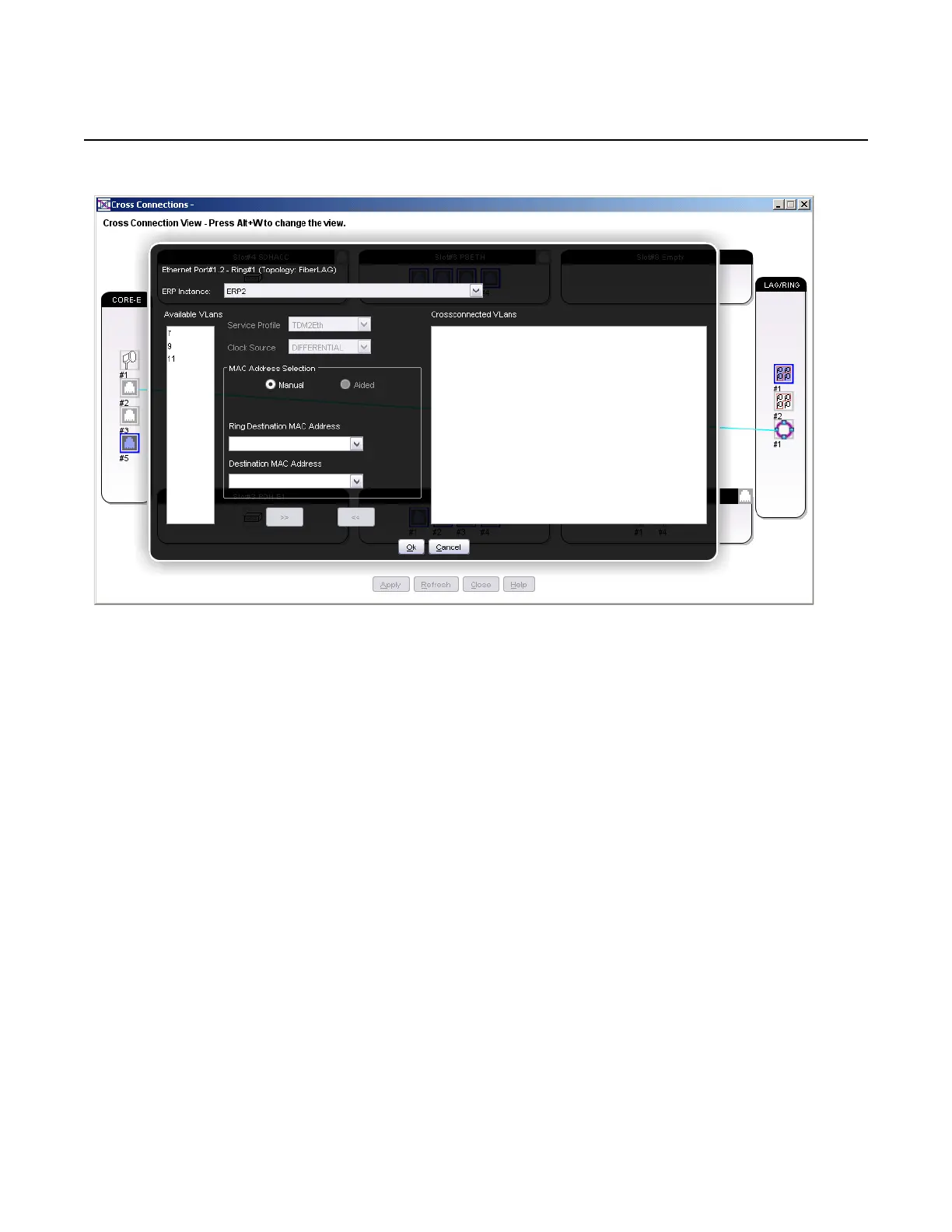

Figure 508 NE E to Node C: Ethernet-Ring cross-connection on Node A
a. Choose the flow IDs to cross-connect from the Available VLANs list
b. Choose the Service profile: TDM2TDM or TDM2ETH
c. Choose the Clock Source, if the Service profile is TDM2ETH
d. Enter the Ring Destination MAC address: Node C Unicast MAC address
e. Enter the Destination MAC address: NE E Unicast MAC address
• Configure a pass-through cross-connection on Node B, see Figure 509.
Release 7.0.0 3DB 19286 ACAA Issue 01
