Nokia 9500 MPR - Figure 181 L1 Radio LAG Configuration

Administer L1/L2 radio and L2 Ethernet LAG
ports
330
WebEML User Manual

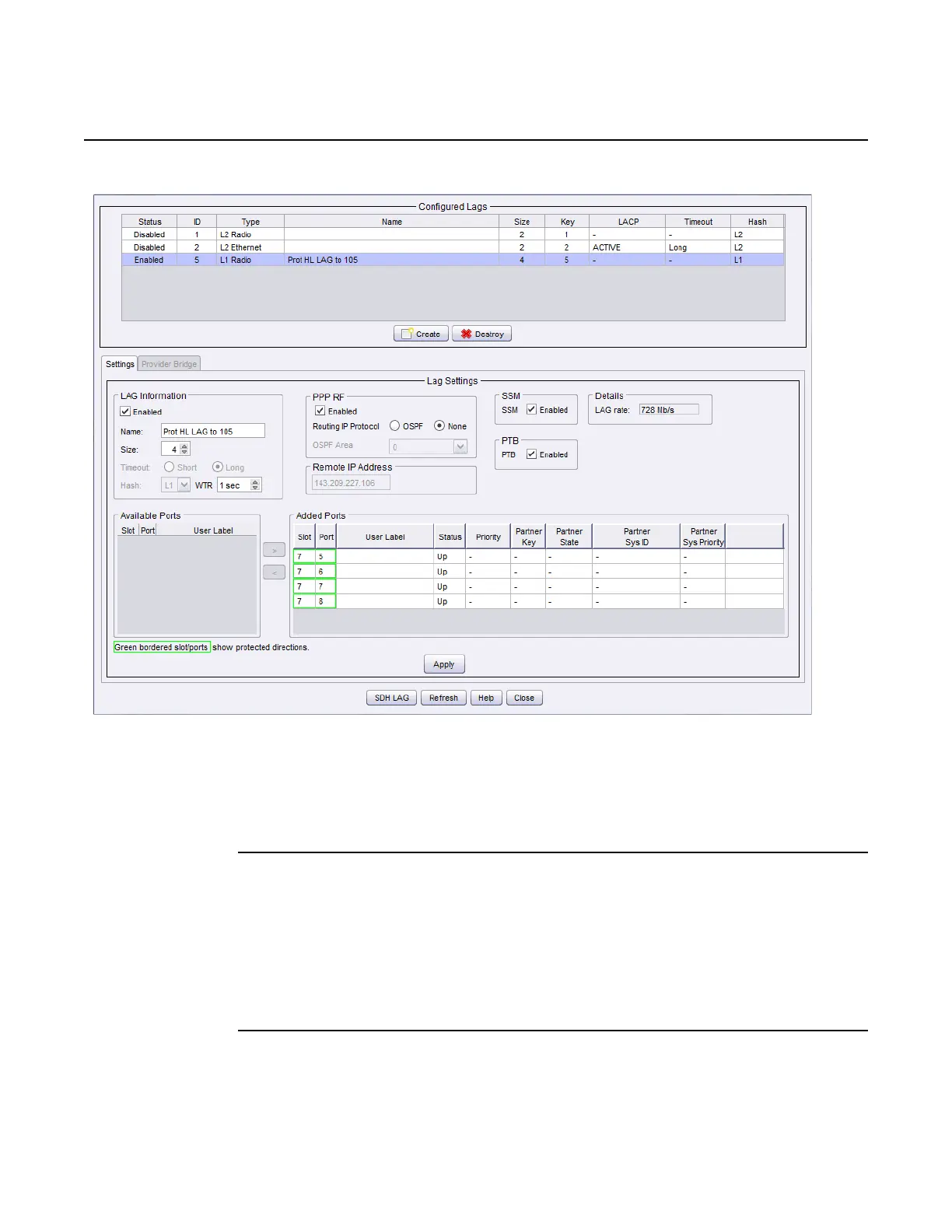

Figure 181 L1 radio LAG configuration
i. From the Configured LAGs pane, select LAG to enable SSM support.
ii. From the SSM pane, select Enabled check box (checked).
iii. Click Apply.
To disable SSM support for L1 radio LAG port
1. Using the LAG Configuration Tool Settings tab, disable SSM support using the
following procedure: See Figure 181.
i. From the Configured LAGs pane, select LAG to disable SSM support.
ii. From the SSM pane, select Enabled check box (unchecked).
iii. Click Apply.
To enable PTB for L1 radio LAG port
1. Using the LAG Configuration Tool Settings tab, enable PTB using the following
procedure: See Figure 181.
Release 7.0.0 3DB 19286 ACAA Issue 01
