Line Facing PDH/SDH Tributary Loopback

966

WebEML User Manual

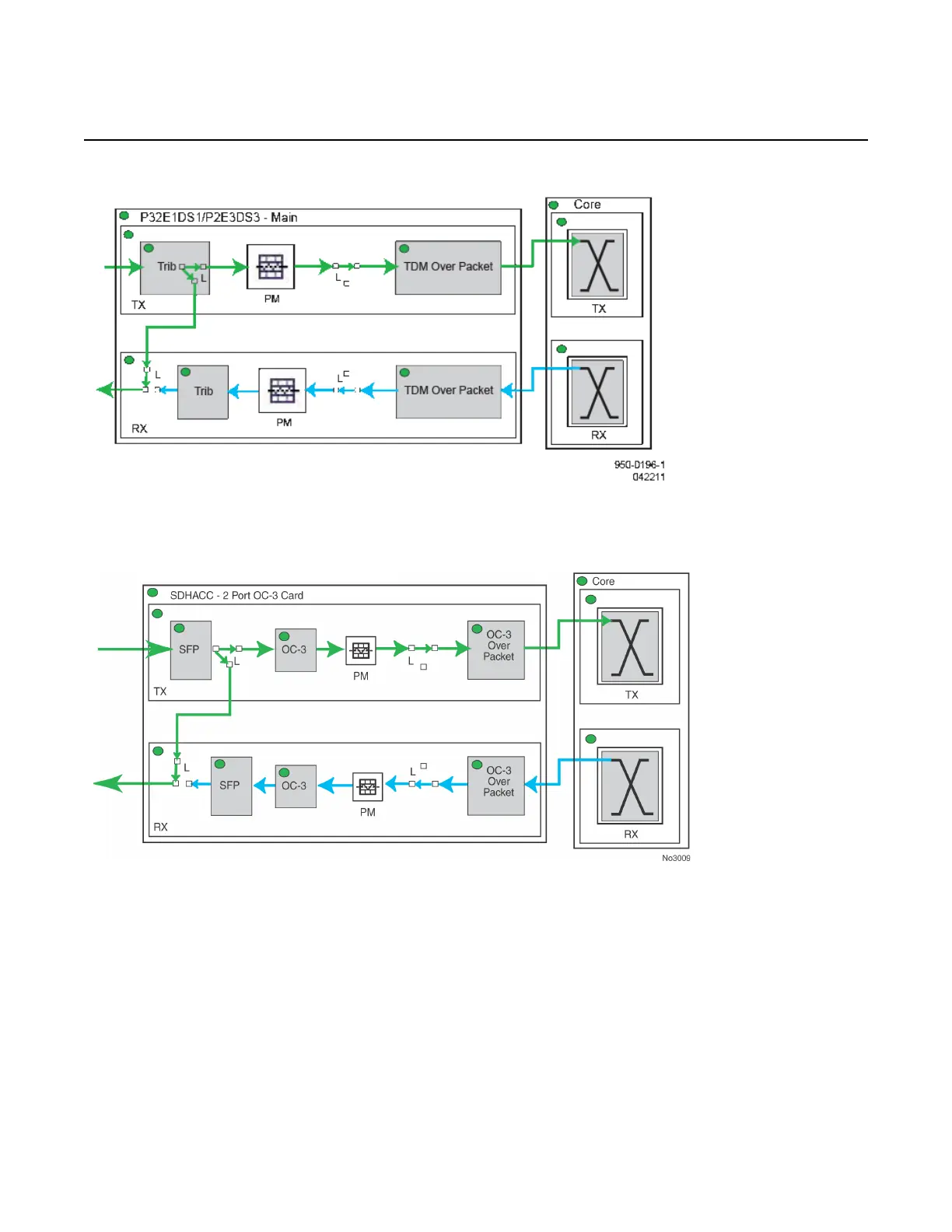

Figure 724 Line Facing PDH Tributary Loopback block diagram

Figure 725 Line Facing SDH Tributary Loopback block diagram

65.3 Procedures

This section provides the following procedures:

• To activate a Line Facing PDH/SDH Tributary Loopback

• To deactivate a Line Facing PDH/SDH Tributary Loopback

Release 7.0.0 3DB 19286 ACAA Issue 01
