WebEML User Manual Disable equipment

543

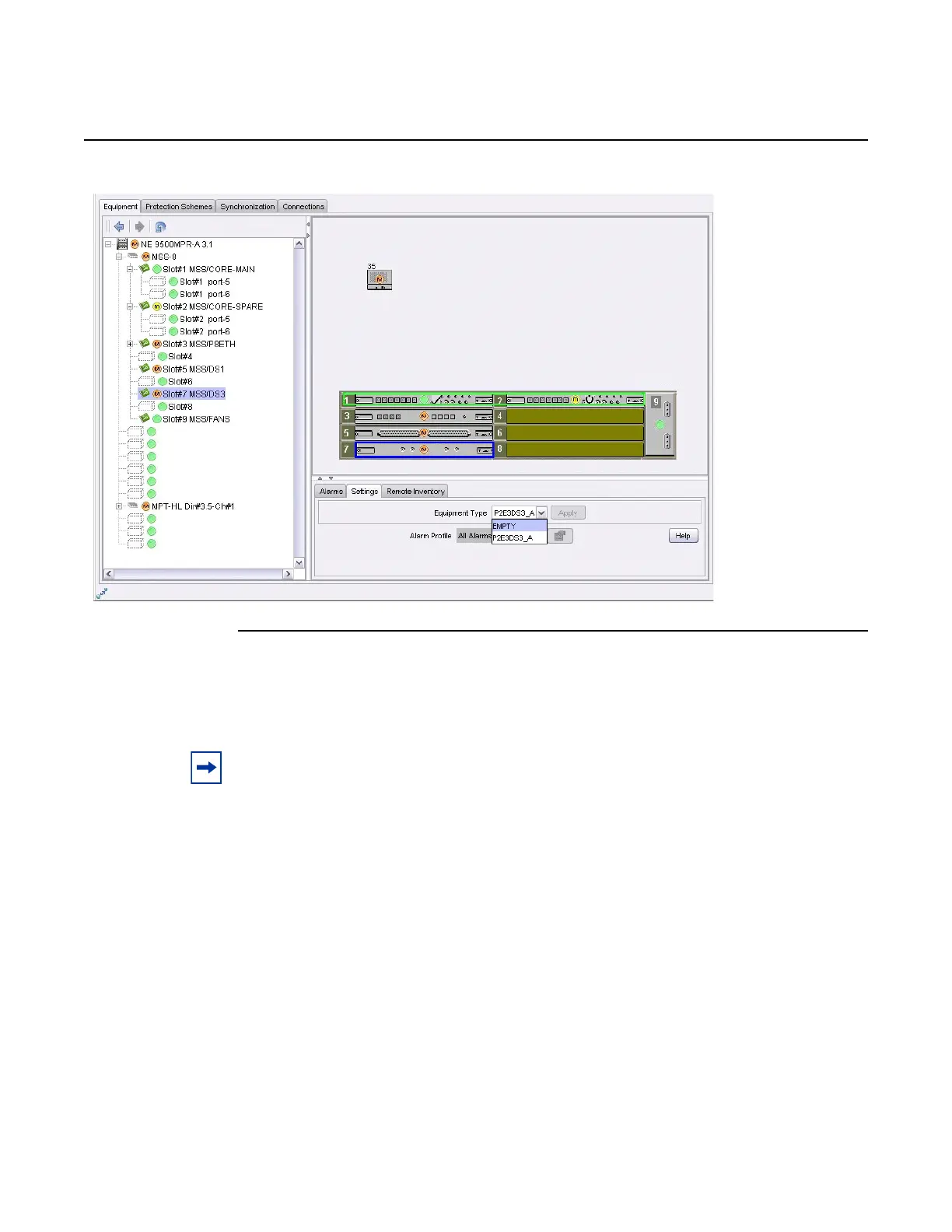

Figure 357 Disable P2E3DS3

4. Click Apply.

The P2E3DS3 card disabled will be removed from the selected slot #. See

Figure 358.

Note: P2E3DS3 Card will not be disabled if the card has cross-connects and/or equipment

ports associated.
