Nokia 9500 MPR - Figure 644 Provisioned MPT ODU 1+1 Vertical XPIC Radio Channel

WebEML User Manual Configure radio parameters
859

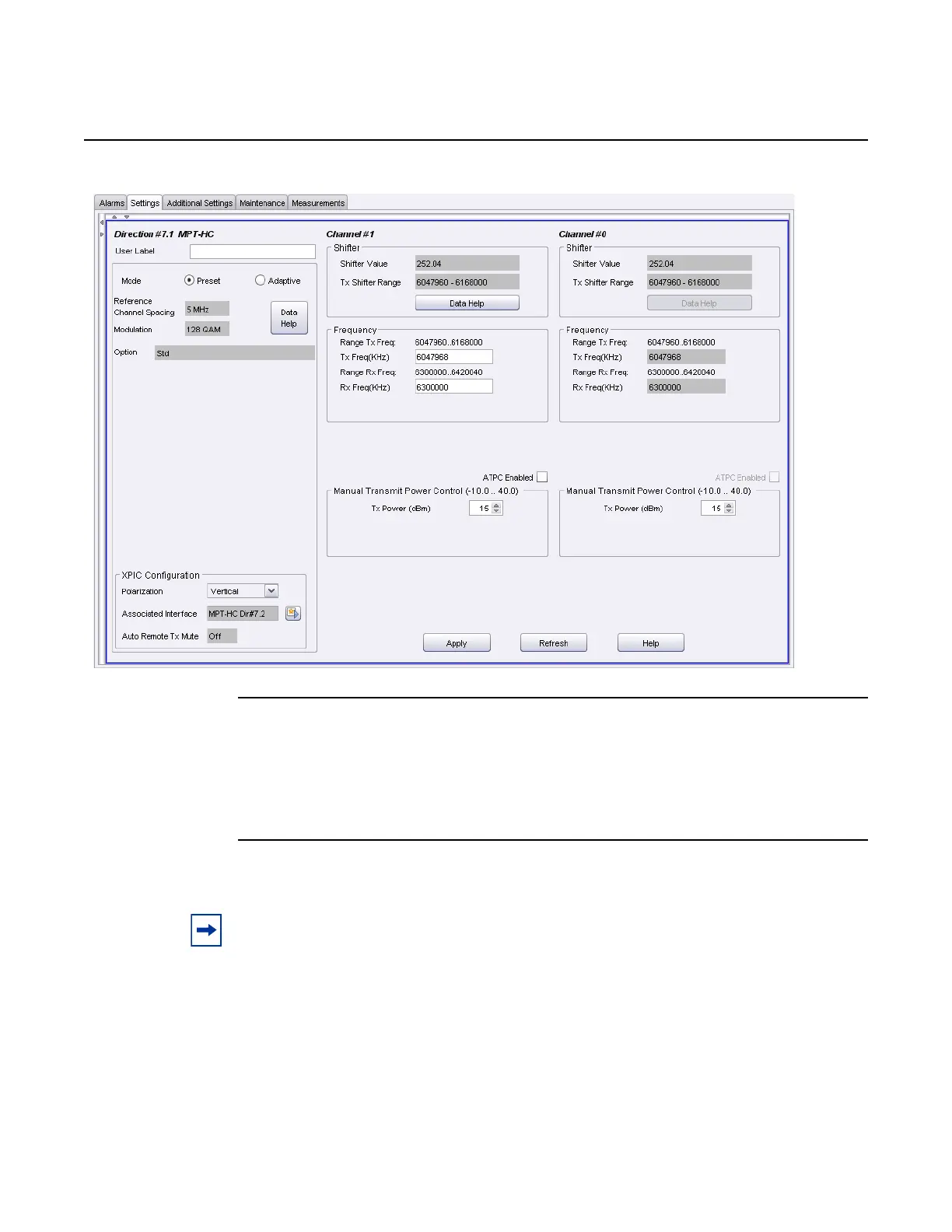

Figure 644 Provisioned MPT ODU 1+1 Vertical XPIC radio channel
28. Select an action.
a. To Provision the MPT ODU Manual Transmit Power Level (RTPC), go to
step 48
b. To Provision the MPT ODU Automatic Transmit Power Control (ATPC), go
to step 53.
29. Provision the MPT ODU radio protection type
From the Equipment tab, select the MPT ODU Dir#-Ch# in the resource tree
area. The selected name will highlight in blue. This selection also highlights the
MPT ODU transceiver icon in blue in the resource list area.
Note: Spare MPT ODU transceiver must be enabled prior to provisioning MPT ODU
transceiver protection scheme.
Release 7.0.0 3DB 19286 ACAA Issue 01
