WebEML User Manual Deprovision equipment ports
471

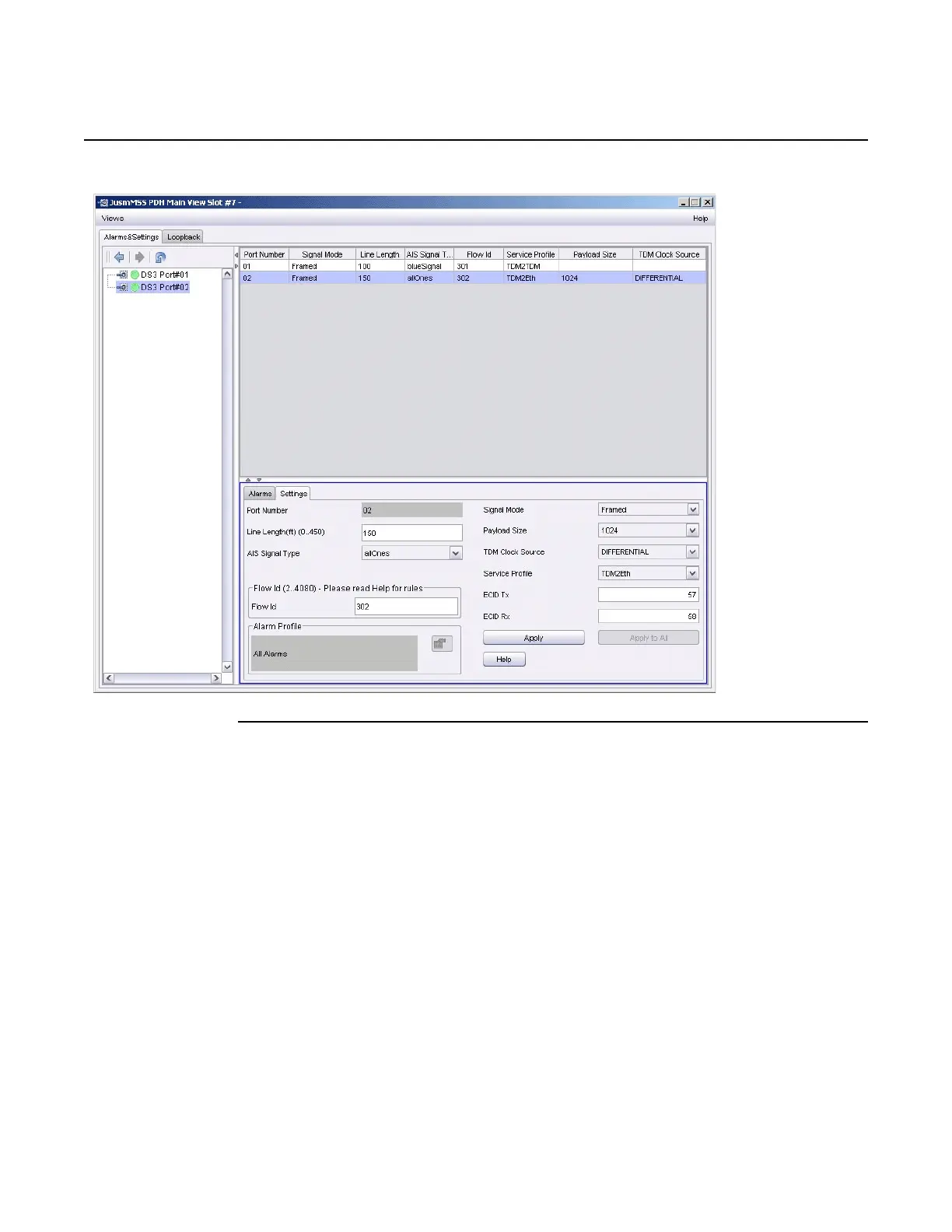

Figure 288 Provisioned P2E3DS3
3. Deprovision DS3 port using the following procedure:
See Figure 289 for the following steps:
a. Select DS3 port number to deprovision, 01 or 02.
b. From the Signal Mode drop-down menu, select signal mode type: Disabled.
c. Click Apply.
Release 7.0.0 3DB 19286 ACAA Issue 01
