Nokia 9500 MPR - Figure 592 Provision MPT ODU Protection Type

Provision Protection Type
782
WebEML User Manual

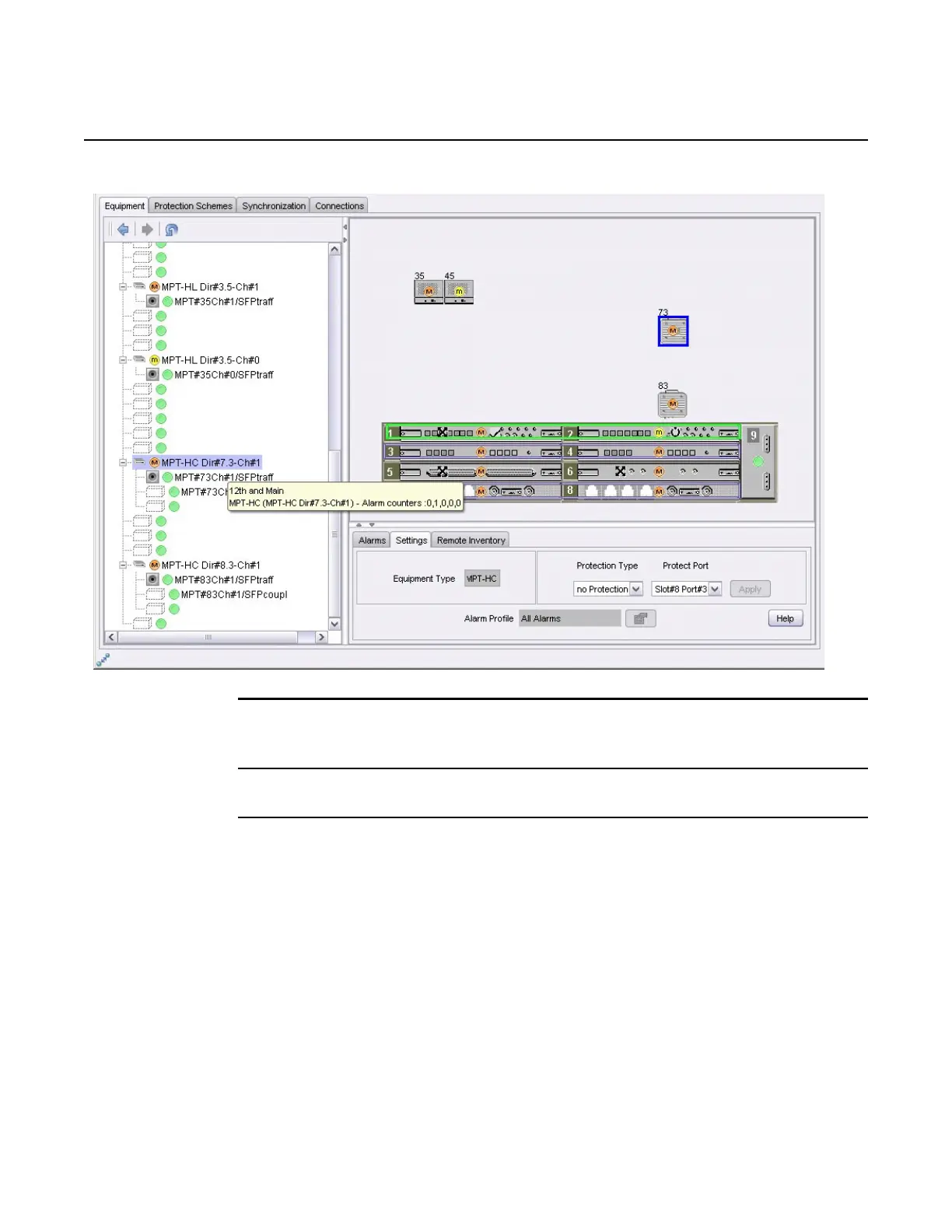

Figure 592 Provision MPT ODU Protection Type
2. From the Protection Type drop-down menu, select: no Protection, 1+1 HSB/
SD, or 1+1 FD protection type.
3. From the Protect Port drop-down menu, select Slot#n Port#m.
4. Click Apply.
Release 7.0.0 3DB 19286 ACAA Issue 01
