Nokia 9500 MPR - Figure 39 TMN In-Band Settings Tab

WebEML User Manual Administer In-Band TMN VLAN port
125
3. Select TMN In-Band#1/2.
4. Select Settings tab. See Figure 39.
In-band TMN provisioning is displayed.

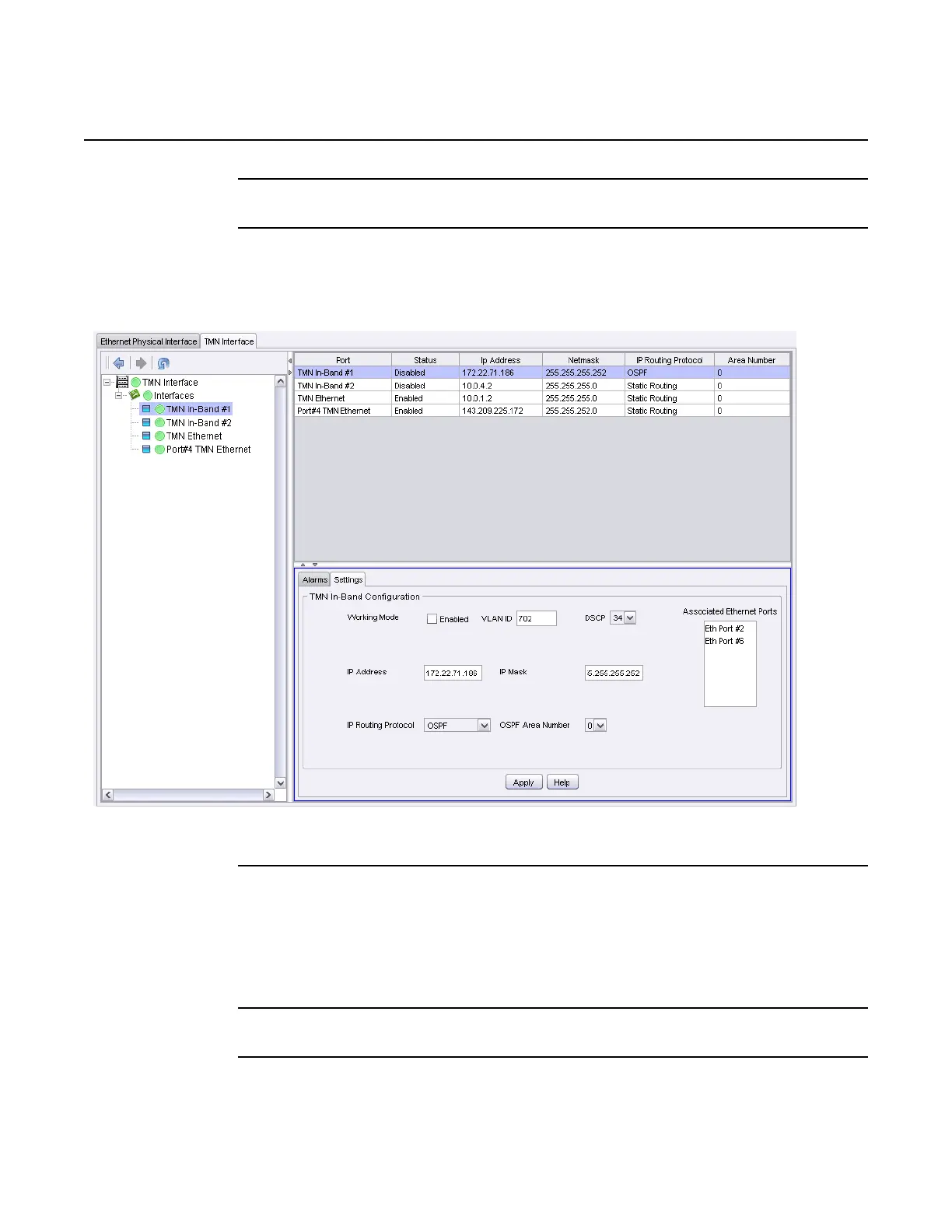

Figure 39 TMN In-band Settings tab
To provision an In-Band TMN VLAN port
1. Select MSS/Core-Main slot #1 in the resource tree area. The selected name
will highlight in blue. This selection also highlights the CORE-Main card in blue
on the graphical representation of the MSS-8 shelf in the resource list area.
Double-click on the blue CORE-Main Card. See Figure 38.
Ethernet Physical Interface Settings tab displays.
2. Select TMN Interface tab.
3. Select TMN In-Band#1/2.
Release 7.0.0 3DB 19286 ACAA Issue 01
