Configure radio parameters
806
WebEML User Manual

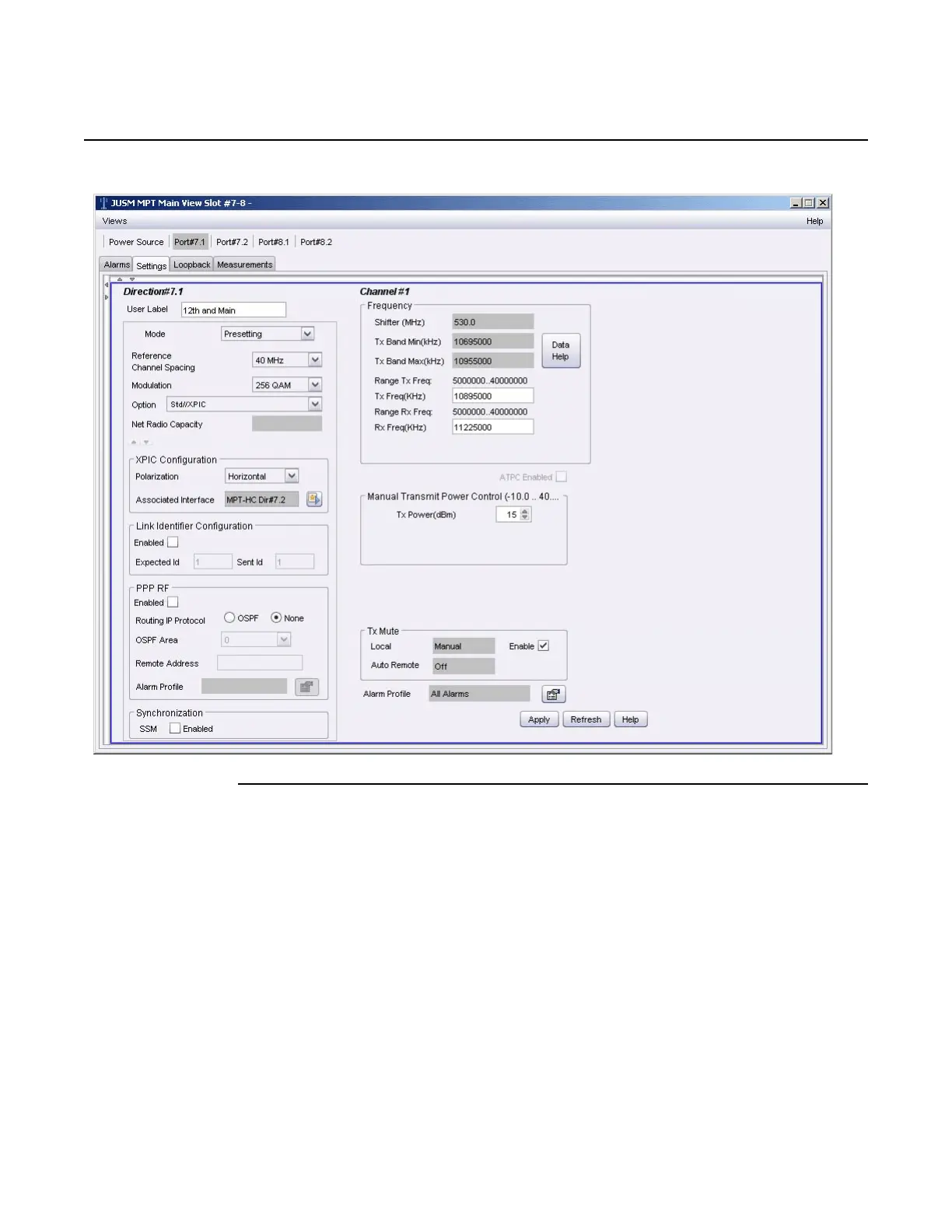

Figure 607 Provisioned MPT-HLC 1+0 Horizontal XPIC radio channel
11. From the MPT Main View, select the Vertical 1+0 radio channel and verify the
correct radio channel is shown for Associated Interface Horizontal radio
channel. See Figure 608 for an example of a Provisioned Vertical XPIC radio
channel.
