Nokia 9500 MPR - Figure 709 Trusted Managers Screen

Use the Provisioning Tool
942
WebEML User Manual

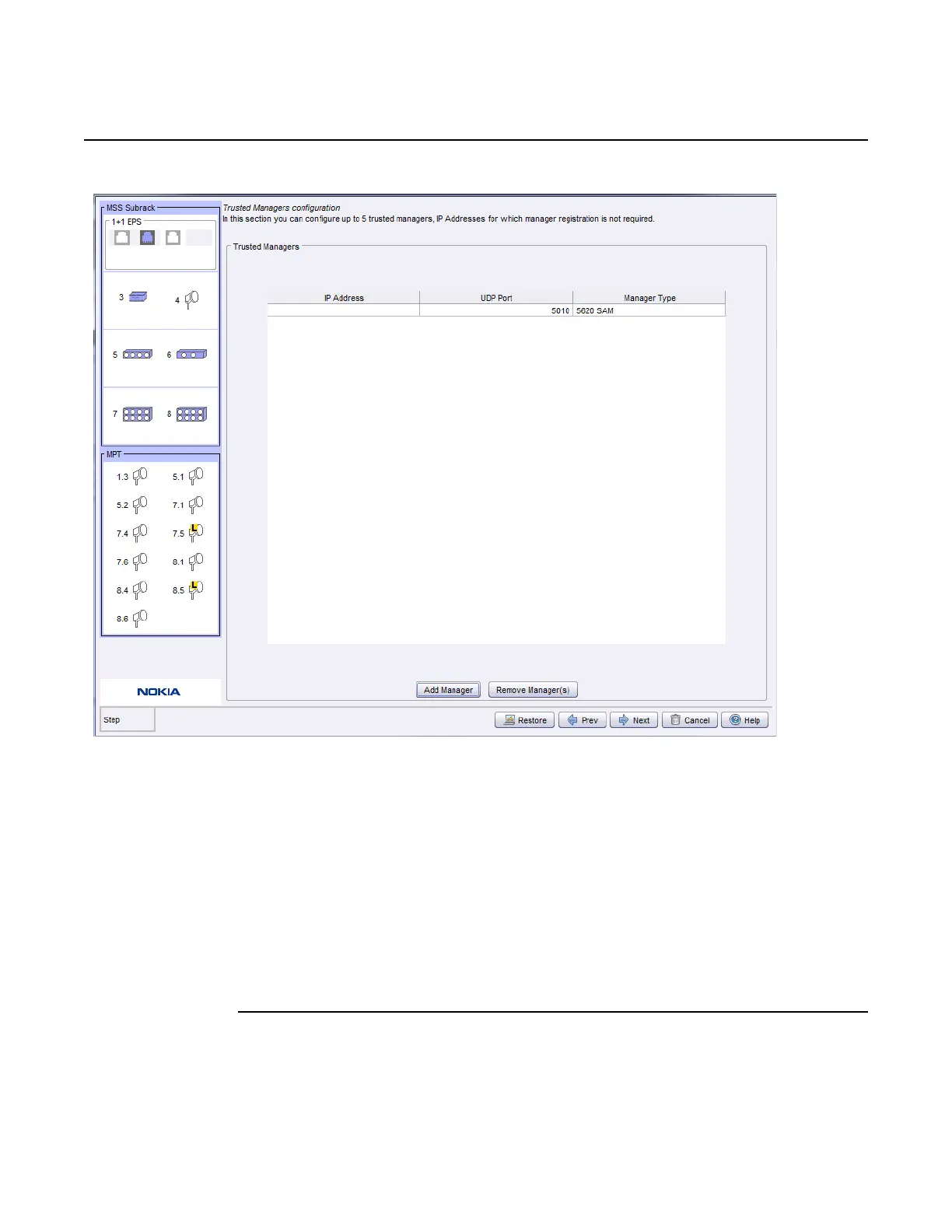

Figure 709 Trusted Managers screen
To activate a trusted manager:
i. Click on Add Manager
ii. Double-click on the IP Address column and enter the IP address of the
SNMP manager.
The default UDP Port is 5010. Double-click on this column to configure
another port.
The Manager Type cannot be changed (it is fixed to 5620 SAM).
iii. To confirm the selection click Enter.
iv. To remove a manager, select one or more manager from the list and click
on Remove Managers.
2. Click on the Next button.
To view and save the configuration
Release 7.0.0 3DB 19286 ACAA Issue 01
