WebEML User Manual Use the Provisioning Tool

899

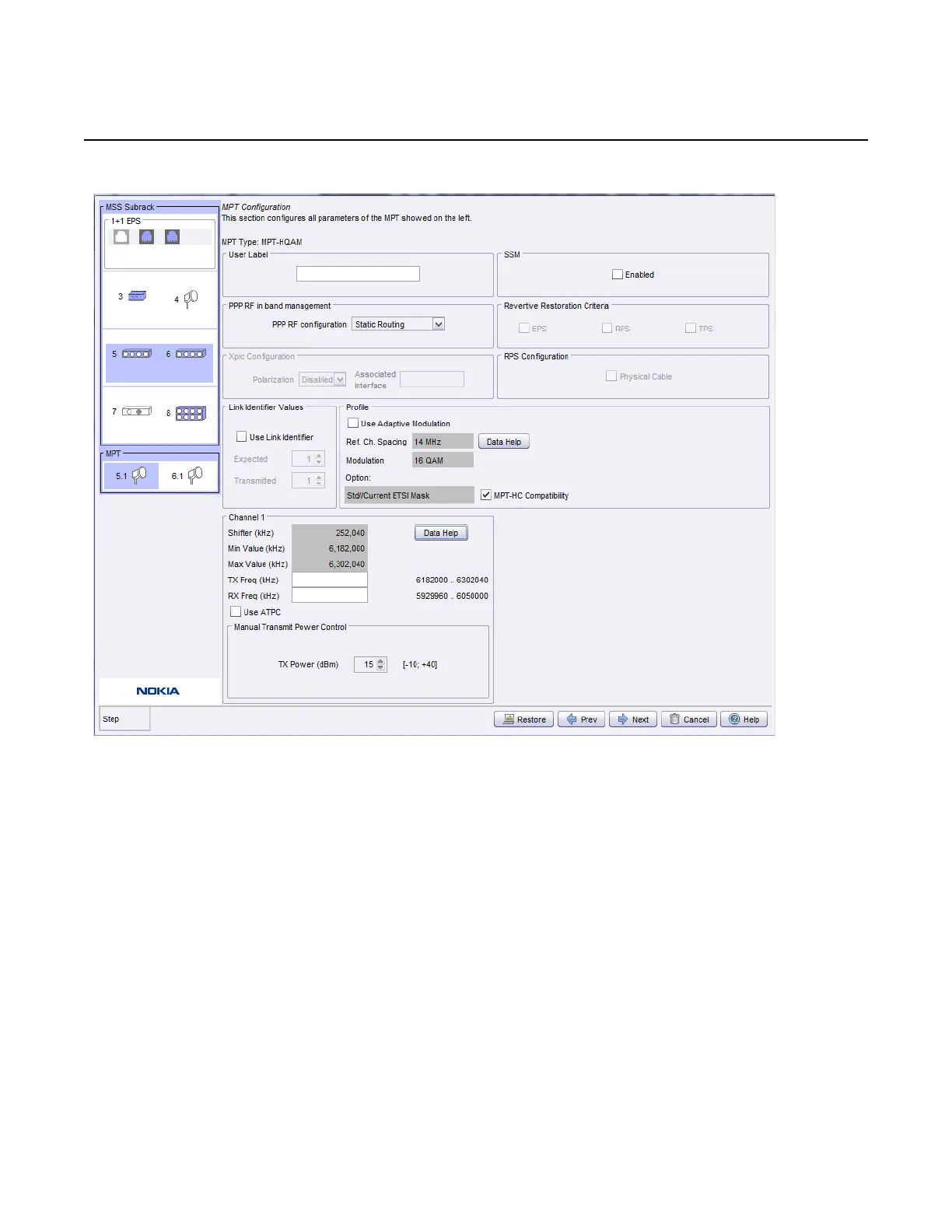

Figure 672 MPT configuration showing MPT-HQAM (1+0 with fixed modulation)

To perform the configuration:

i. Do not put a check mark in the “Use Adaptive Modulation” check box.

ii. Click on the Data Help button in the Profile area. The Data Help window

opens, see Figure 673 for an example.

Release 7.0.0 3DB 19286 ACAA Issue 01
