Nokia 9500 MPR - Figure 68 Qos Classification Tab; Figure 69 Select Qos Classification Criterion

Administer QoS configuration
156
WebEML User Manual

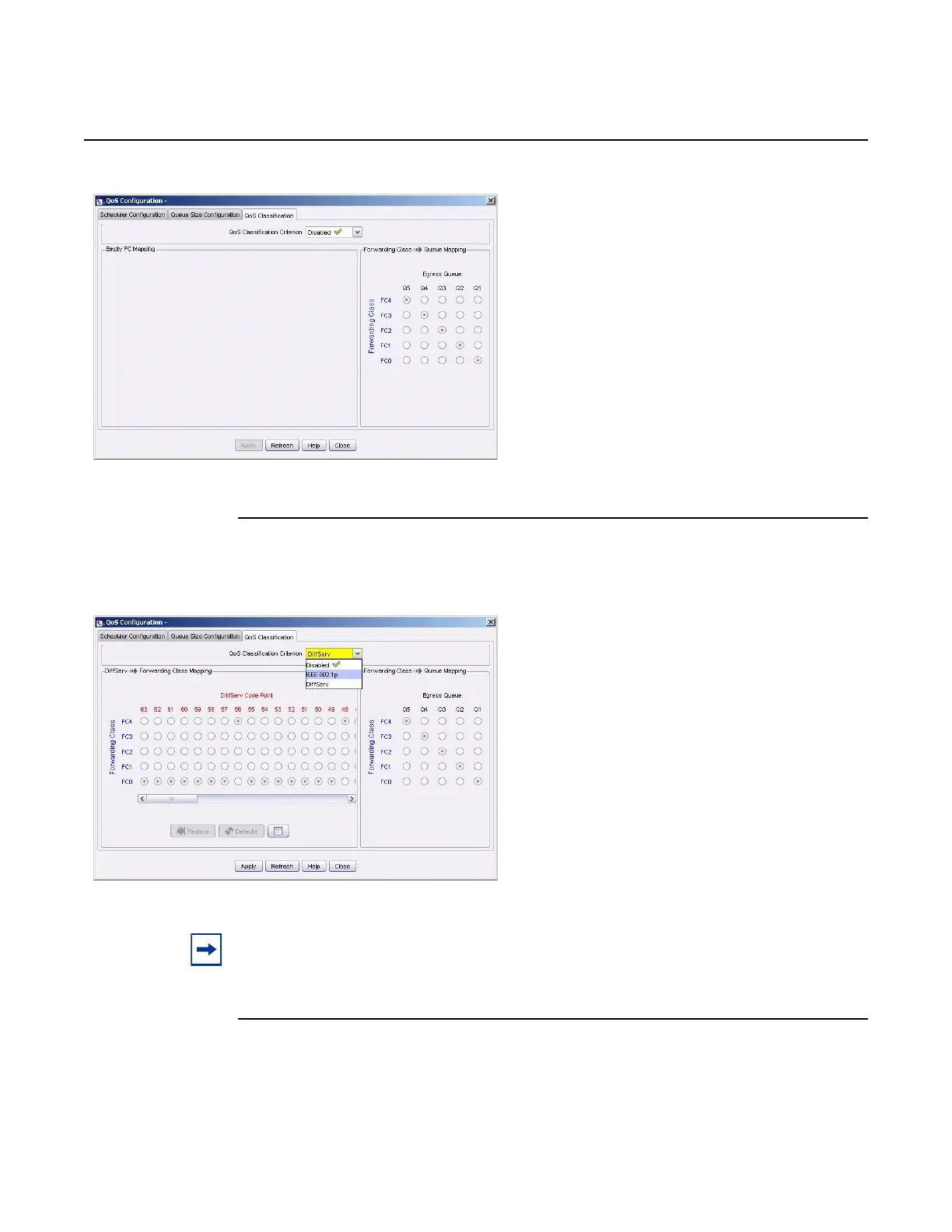

Figure 68 QoS Classification Tab
To provision QoS Classification Criterion
1. From the QoS Classification Criterion drop-down menu, select: Disabled,
802.1p, or DiffServ. See Figure 69.
Figure 69 Select QoS Classification Criterion
2. Click Apply.
Apply Data to NE window displays.
Note: The background of modified QoS Classification Criterion value is displayed in yellow.
Release 7.0.0 3DB 19286 ACAA Issue 01
