Nokia 9500 MPR - Figure 209 Radio to Ring Cross Connection

WebEML User Manual Provision cross connections
377
1. Verify port segregation provisioning. Port segregation should be provisioned
between parallel radio paths at both ends when they exist on the NE. When
making a cross connection to one of parallel radio ports, port segregation should
also be provisioned between the radio port and all other parallel radio ports.
Additionally, port segregation should be provisioned between the radio ports and
other Ethernet and/or radio ports where connectivity is not desirable. See
Provision port segregation/connectivity for detailed steps to view/provision port
segregation.
2. Select Radio port and drag and draw line to RING port.
RADIO-RING pop-up displays. See Figure 209.

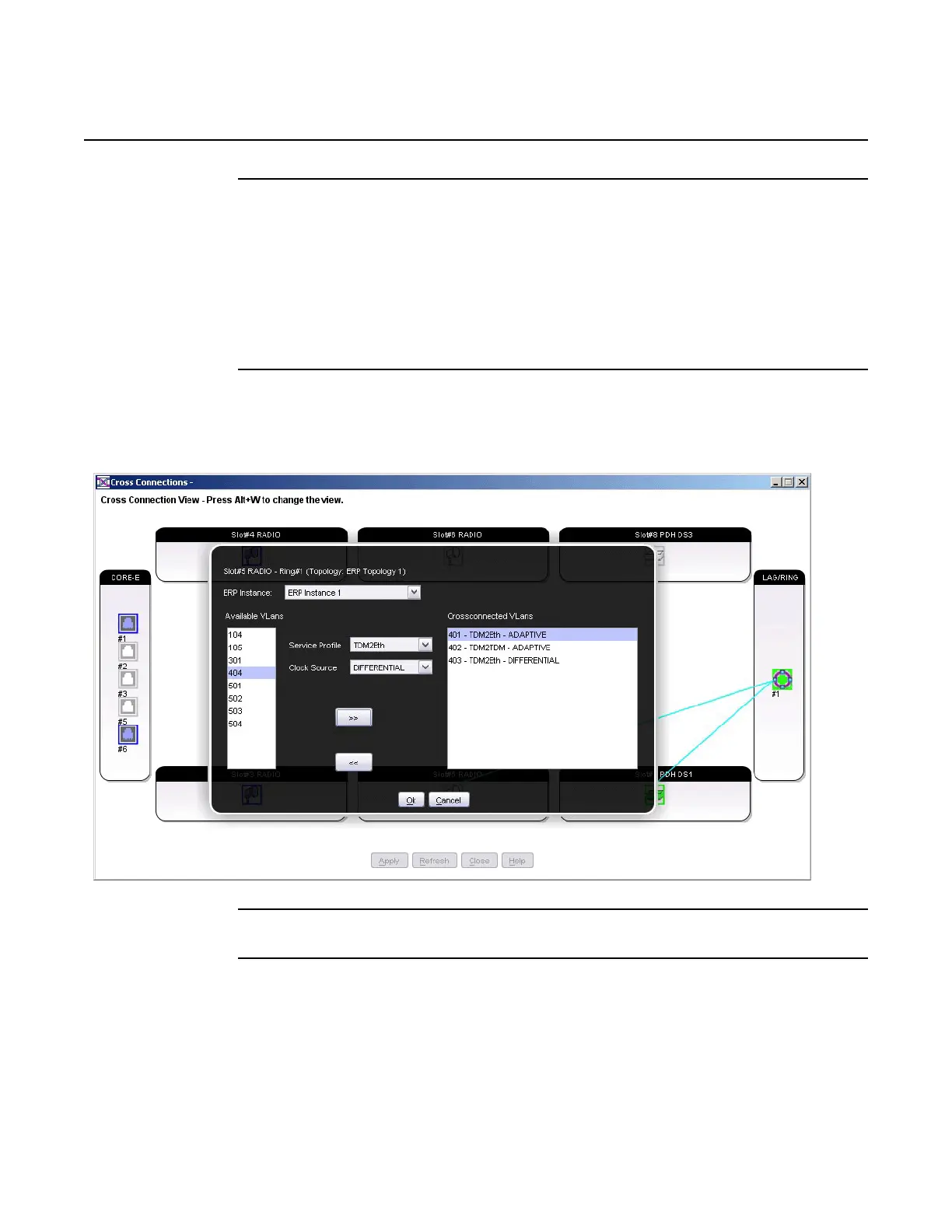

Figure 209 Radio to Ring Cross Connection
3. On the RADIO-RING pop-up, select ERP Instance to be cross connected.
4. On the RADIO-RING pop-up, select VLAN ID number from the Available VLANs
field.
Release 7.0.0 3DB 19286 ACAA Issue 01
